To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  1. Plug in the connector.

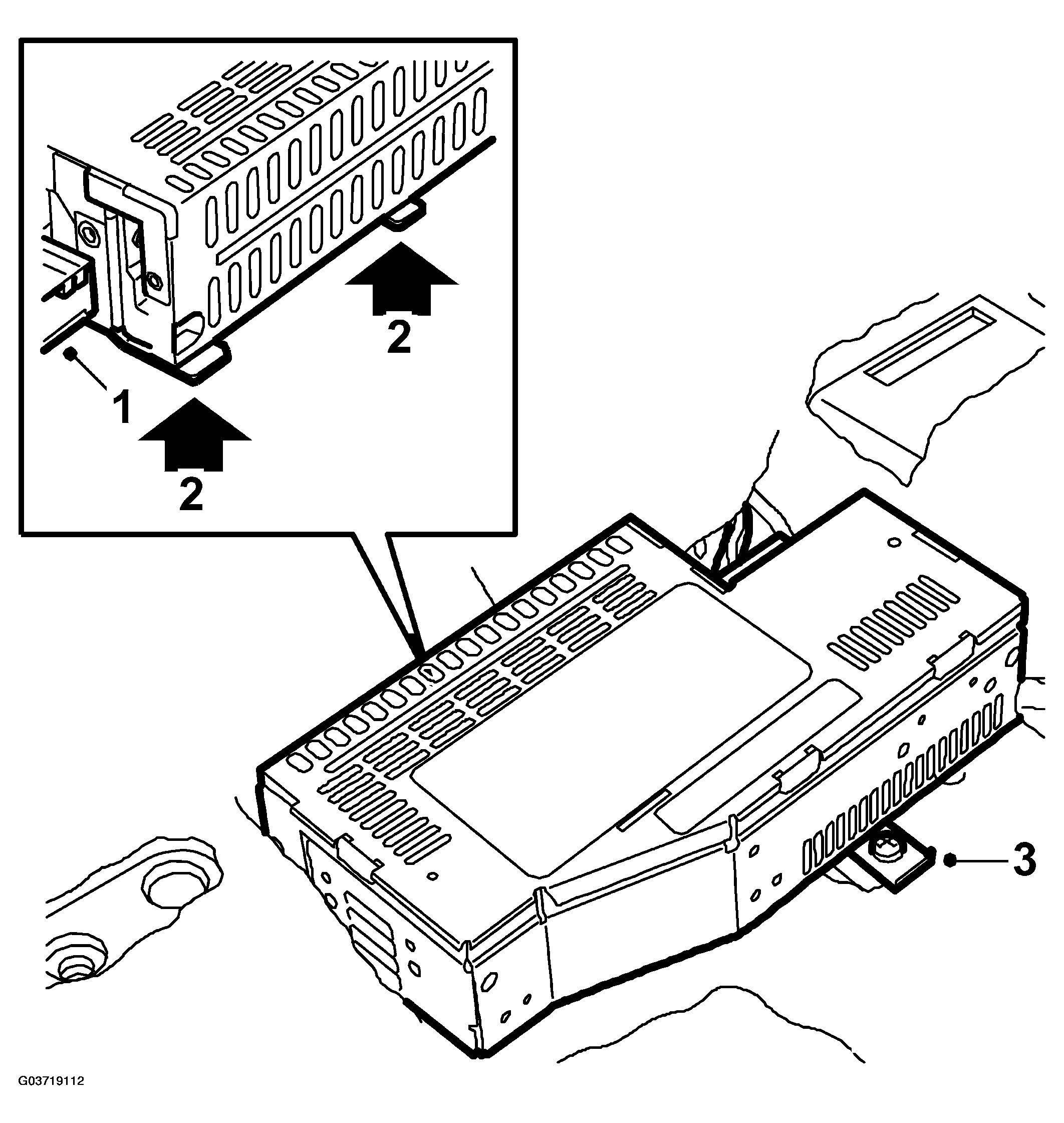

    Fig 1: Illustration For Steps 1-3
    G03719112Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the amplifier by hooking into the two brackets.
  3. Fit the screw.
  4. Fit the left-hand front seat.

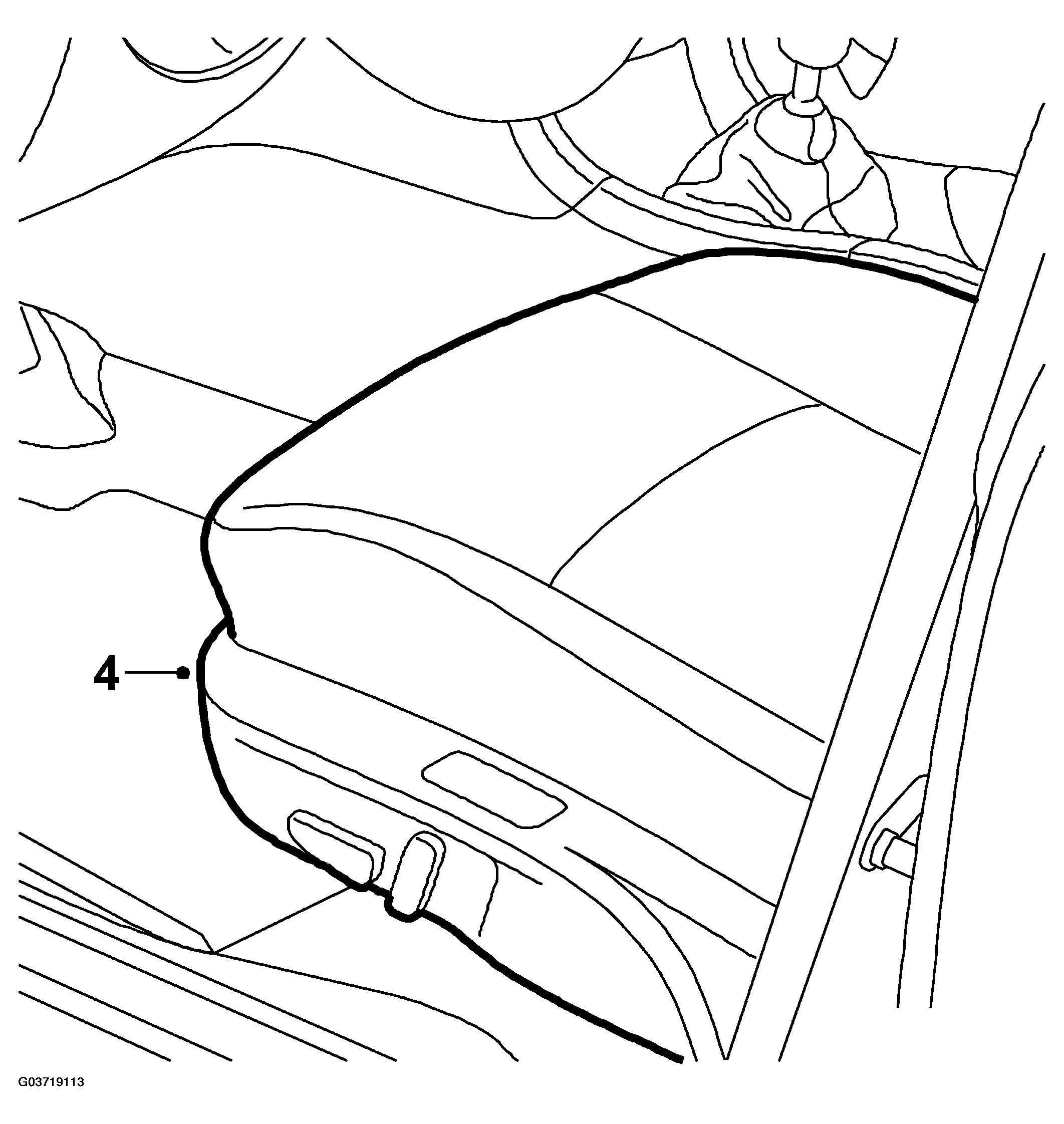

    Fig 2: Illustration For Step 4
    G03719113Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Carry out actions after replacement of control module.
  6. Check the function.
