To fit

  1. Plug in the engine control module connector.
  2. Fit the EGR valve and plug in the connector.

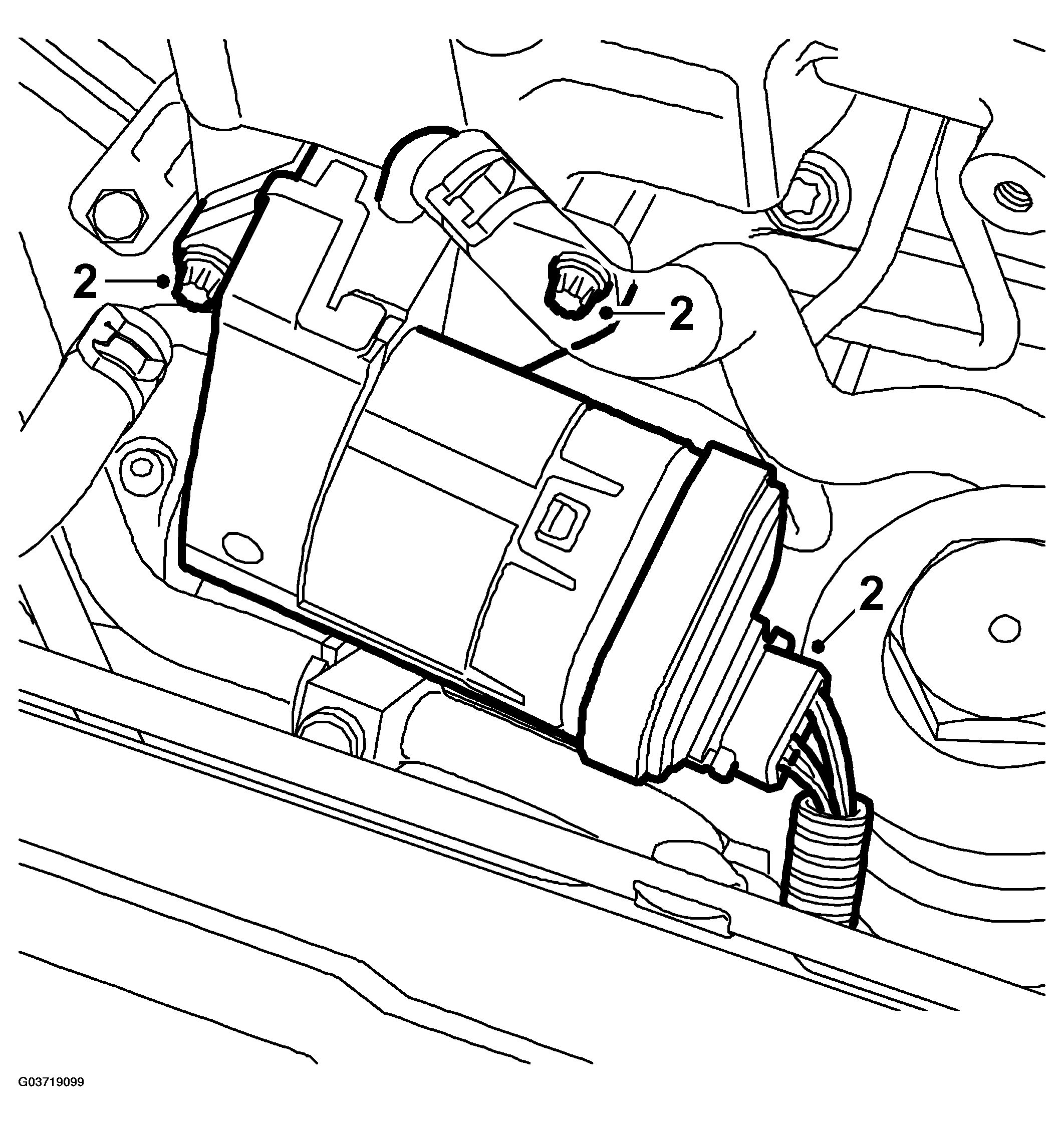

    Fig 1: Illustration For Step 2
    G03719099Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Check the function of the remedied line by using the diagnostic tool to obtain any read values.
  4. Attach the hoses to the valve and remove the hose pinch-off pliers.
  5. Screw on the expansion tank cap.
  6. Fit the upper engine cover.

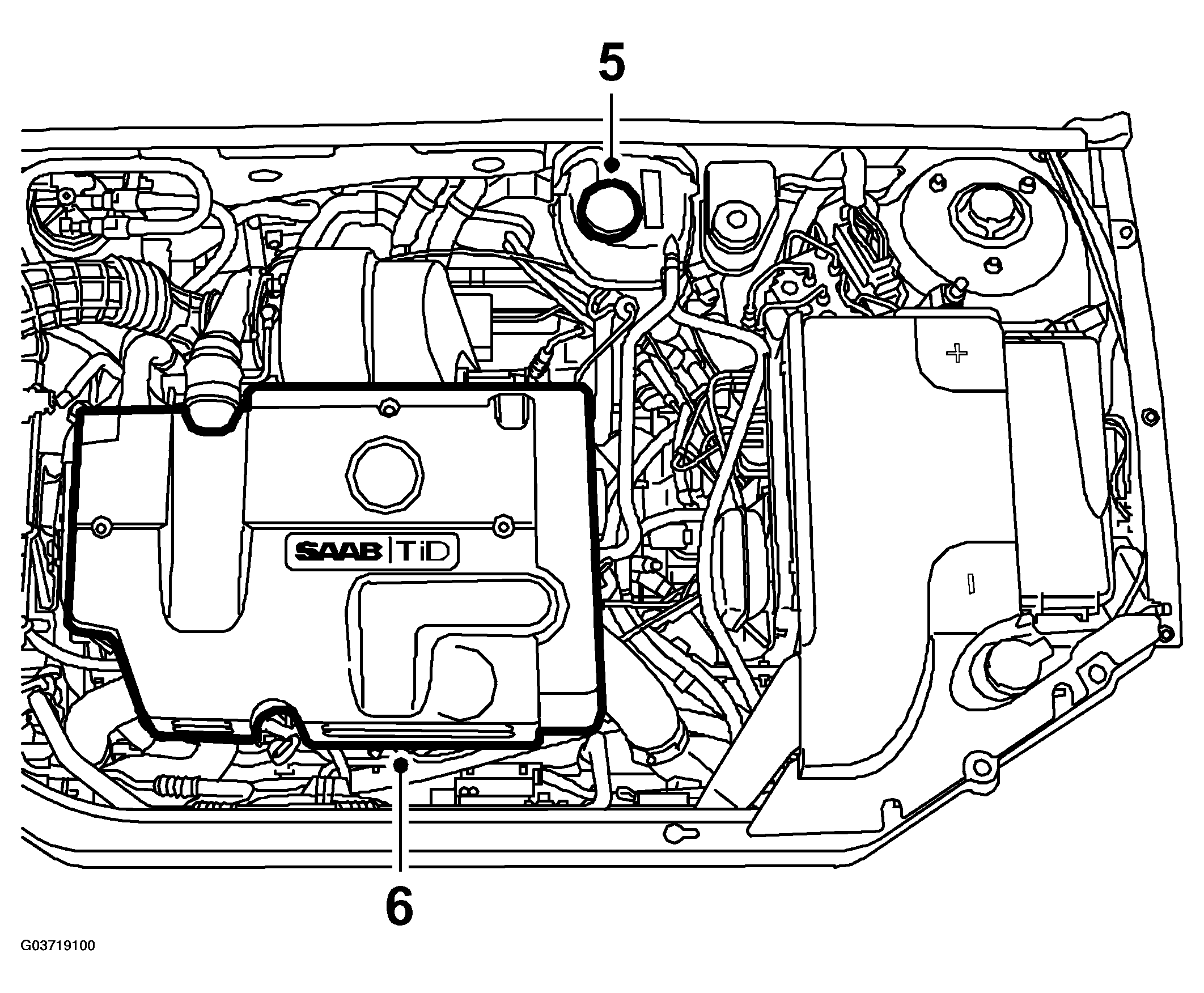

    Fig 2: Illustration For Steps 5-6
    G03719100Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Clear all diagnostic trouble codes.
  8. Carry out one driving cycle, i.e. run the car with varying engine load and engine speed for five minutes.
  9. Read diagnostic trouble codes.
