To remove
- Raise the car, remove the right front wheel.

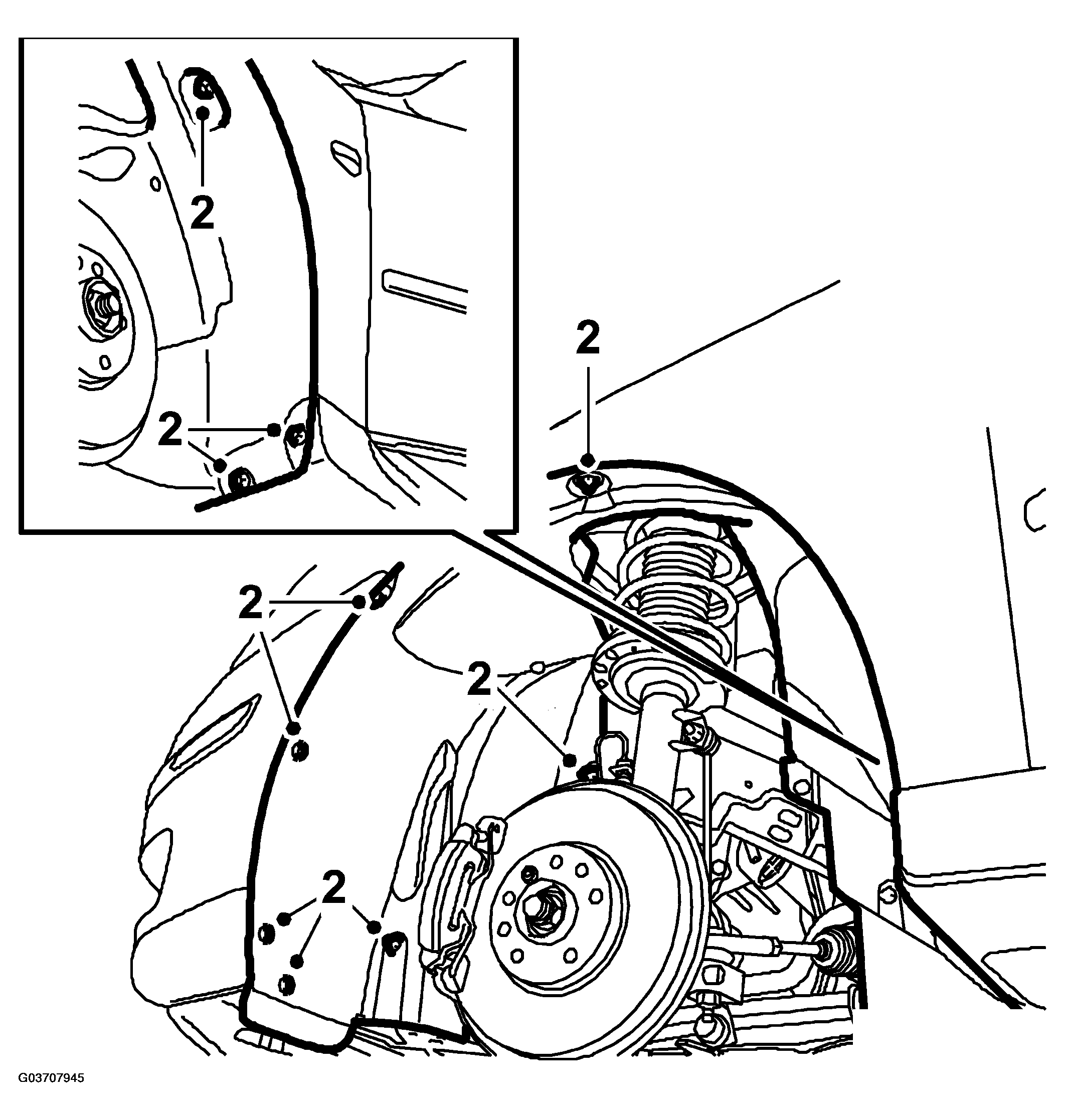

- Remove the right wing liner.

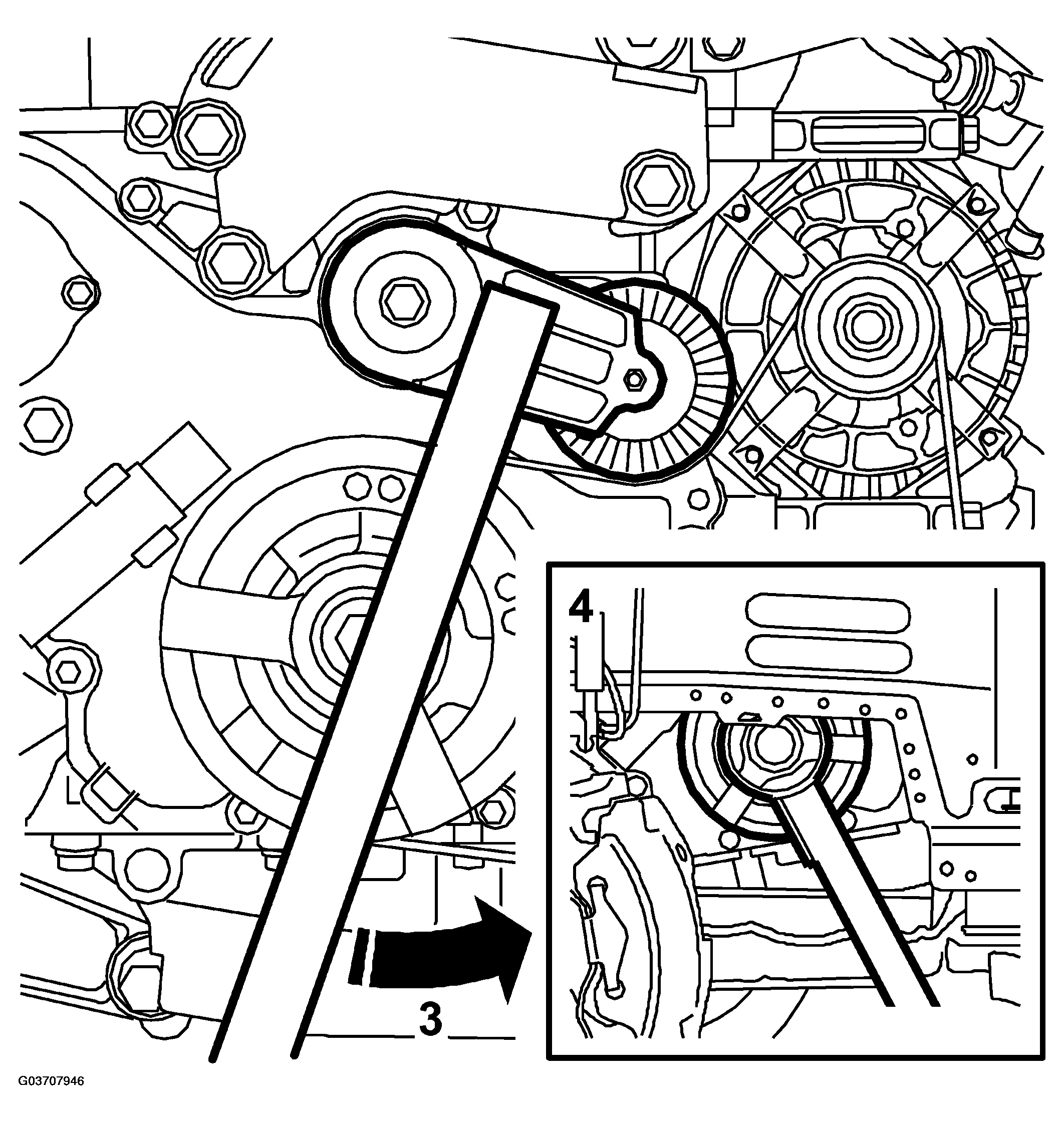

- Mark the belt direction of rotation. Relieve the belt tensioner using 83 96 095 BELT CIRCUIT RELIEVING TOOL B207 and remove the poly-V-belt.

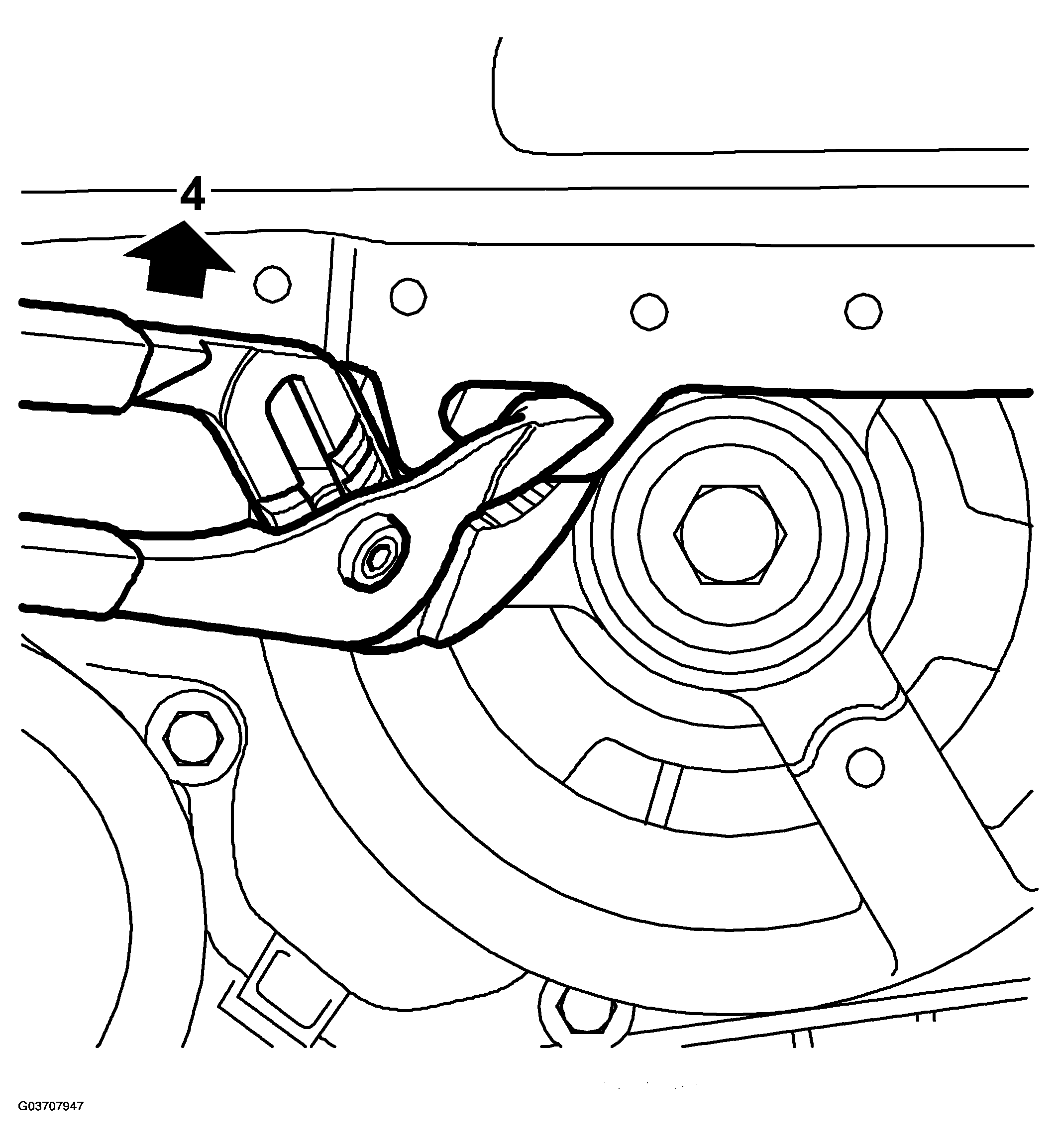

- Remove the crankshaft pulley using 83 95 360 HOLDING TOOL, CRANKSHAFT PULLEY (shaft only) and 83 96 210 HOLDING TOOL, CRANKSHAFT PULLEY, B207 . Fold up the plate and carefully hold the engine down slightly with a bracket to gain access to the bolt.

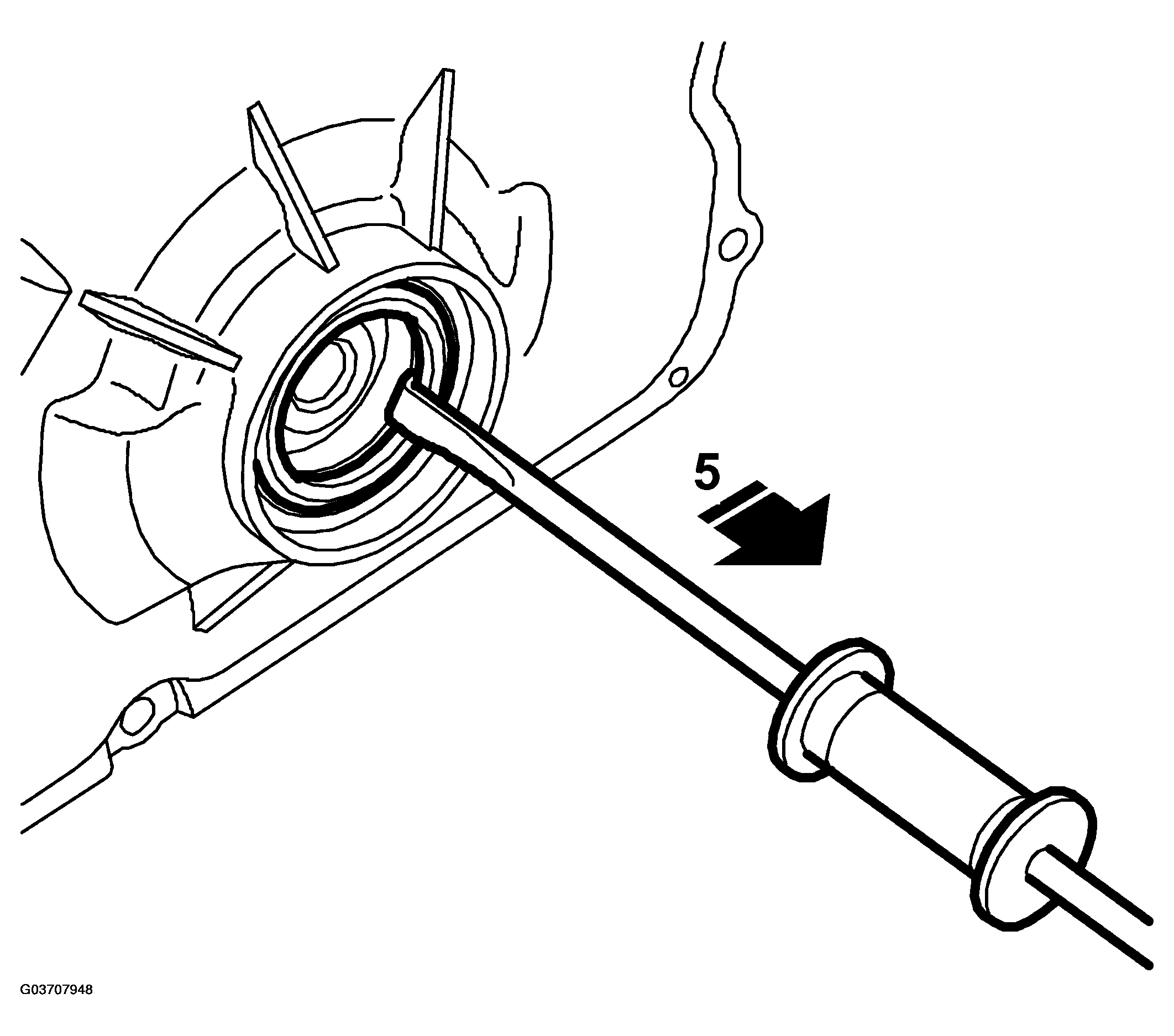

- Remove the gasket using a 87 91 360 Extractor
