Brief description: Overview

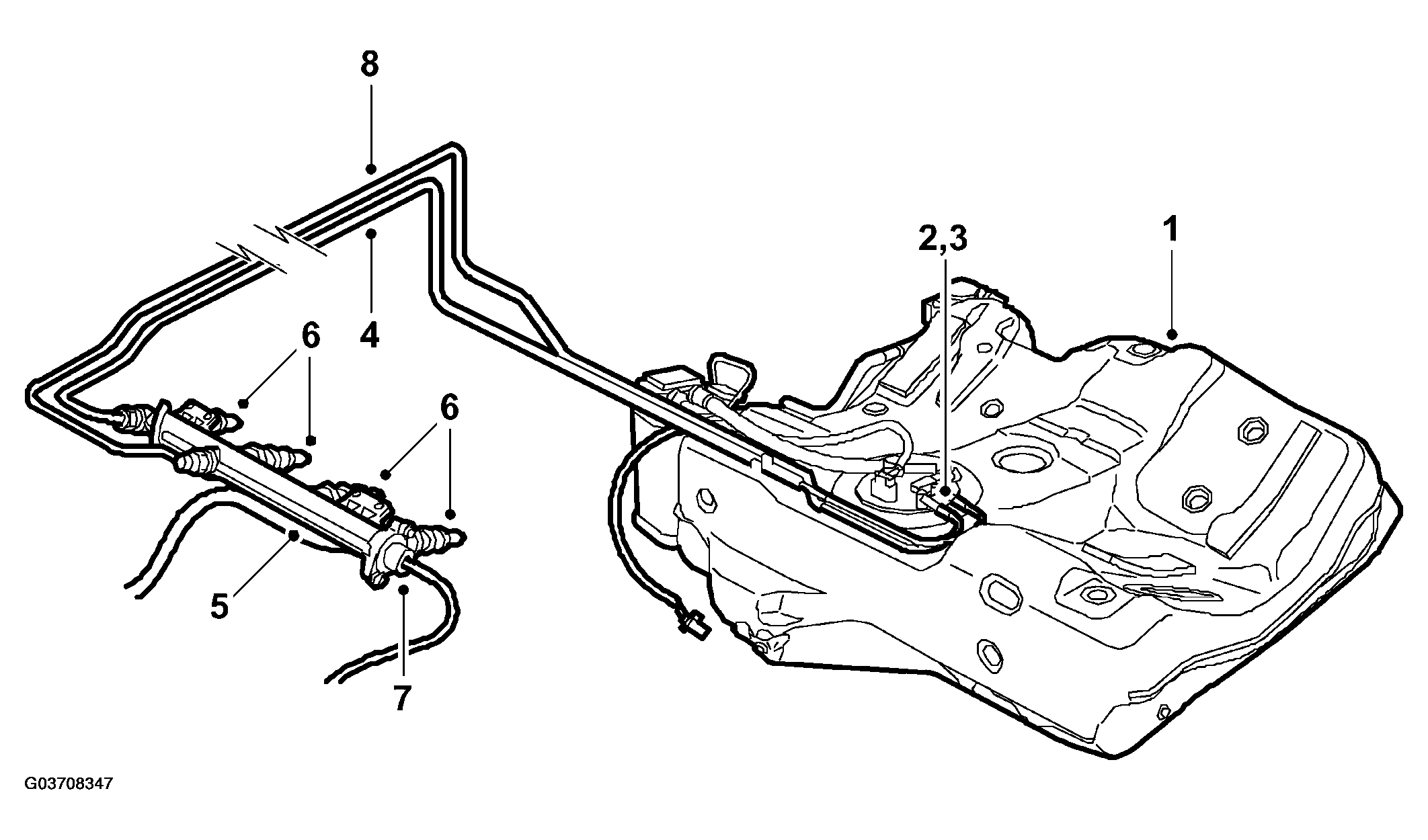

Fig 1: Identifying Fuel System Main Components
G03708347Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fuel tank
  2. Fuel pump
  3. Fuel filter
  4. Fuel line, delivery
  5. Fuel rail
  6. Injector
  7. Fuel pressure regulator
  8. Fuel line, return
