To fit

  1. Fit the three position sensor nuts.

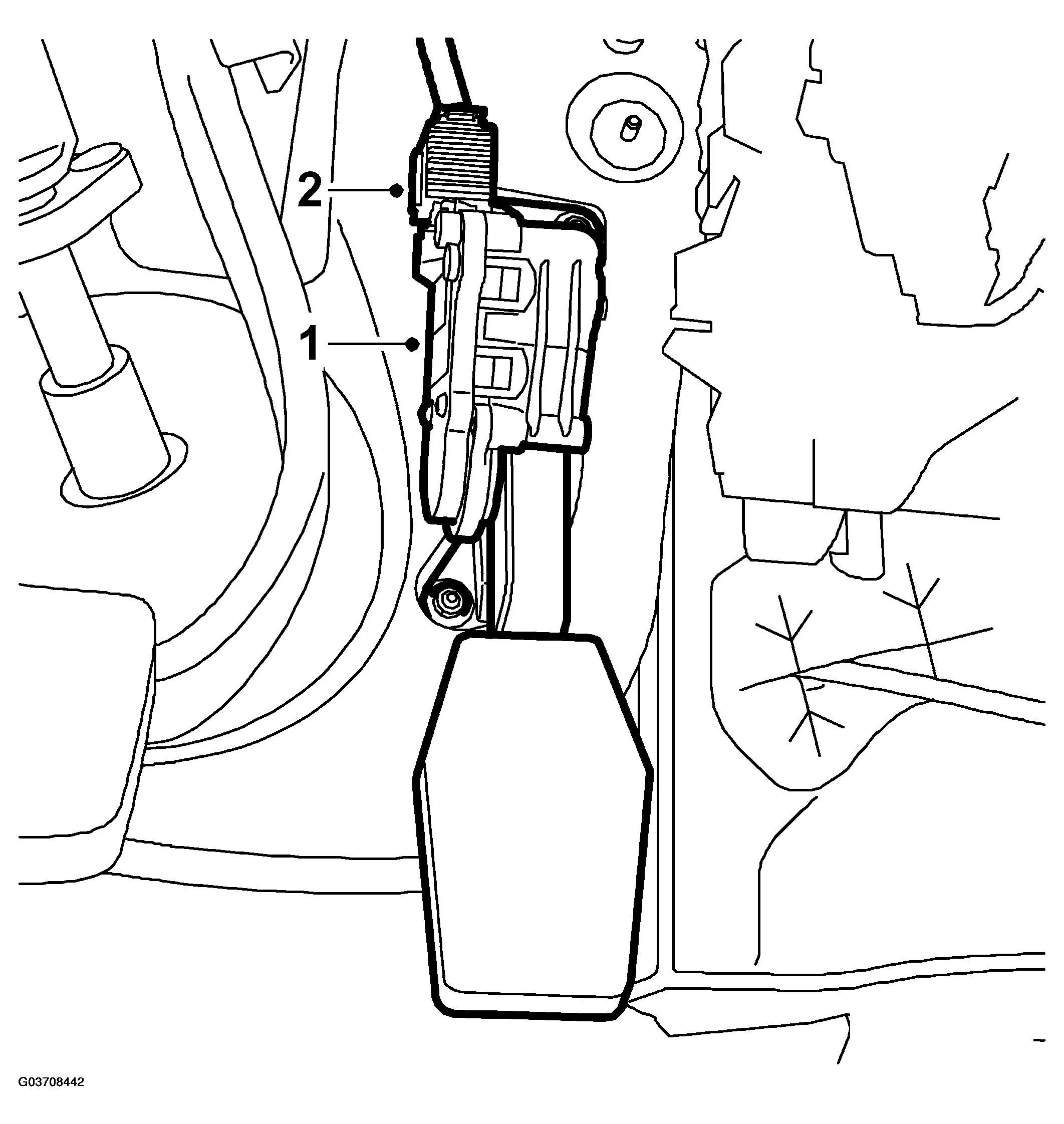

    Fig 1: Illustration For Step 1-2
    G03708442Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque 8 Nm (6 lbf ft)  .

  2. Plug in the connector to the position sensor.
  3. Fit the 2 sound insulating baffle screws to the climate housing and instrument panel.

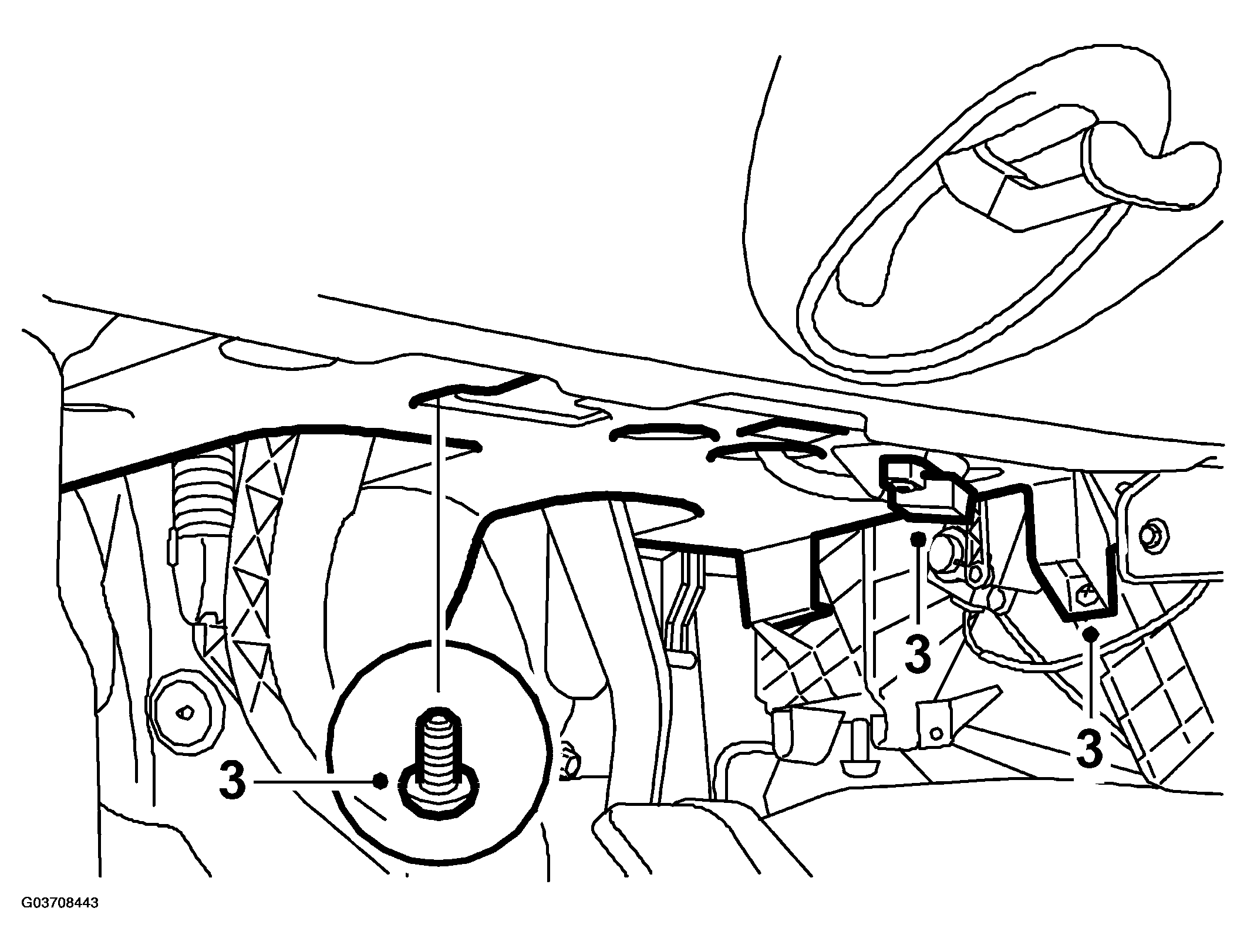

    Fig 2: Illustration For Step 3
    G03708443Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the center console front side piece.

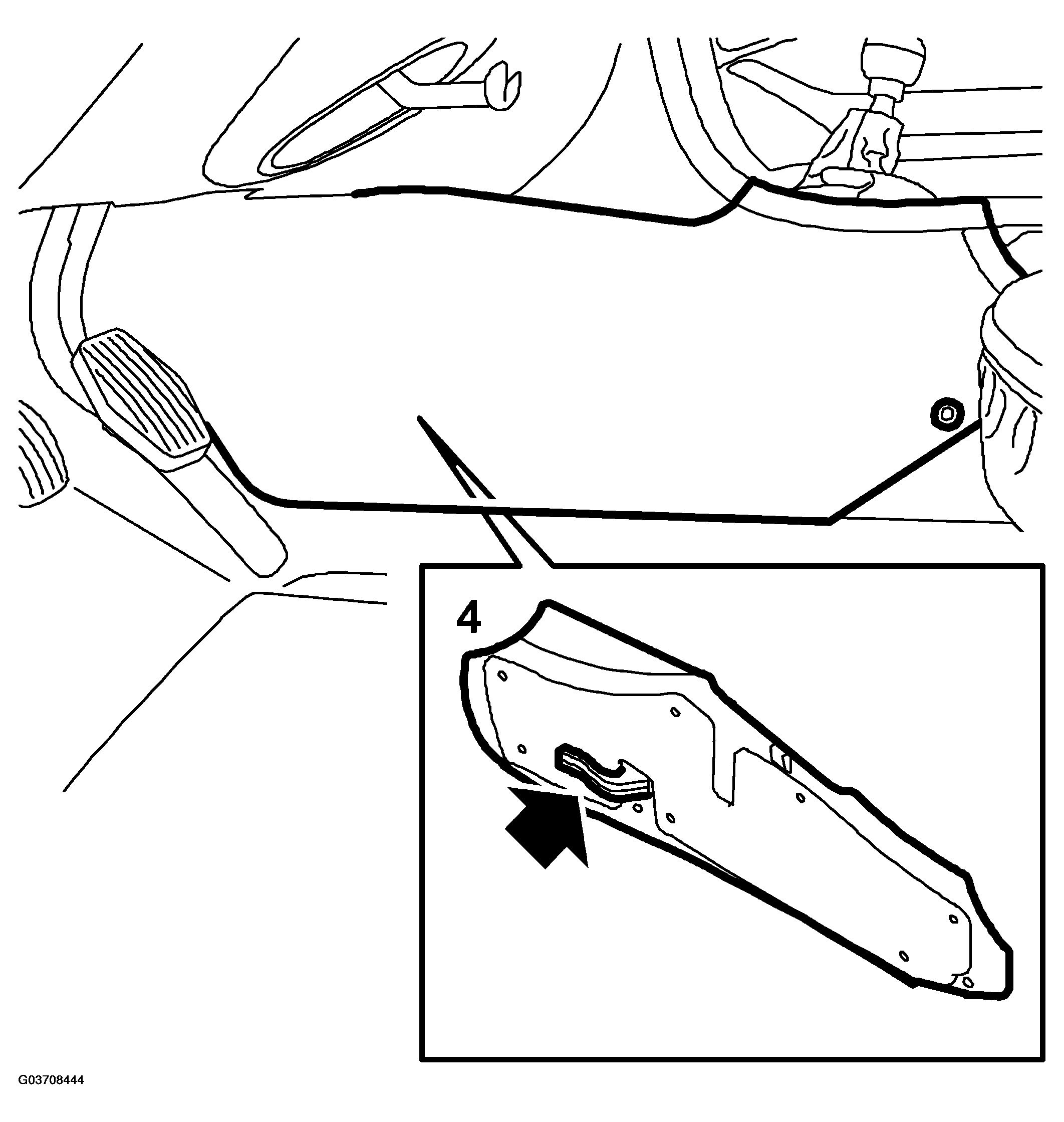

    Fig 3: Illustration For Step 4
    G03708444Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Adjust the seat position.
