To remove

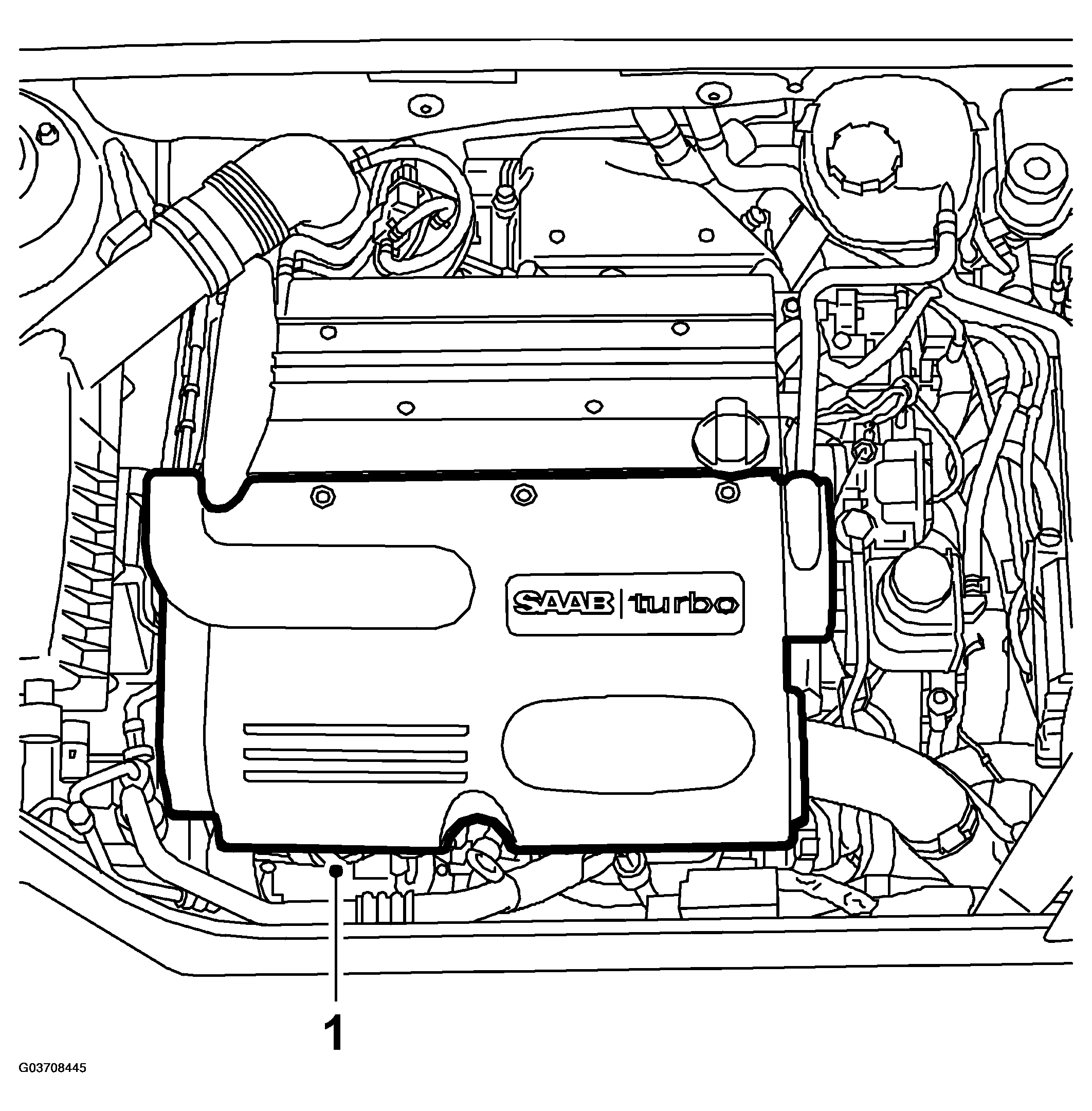

Remove the upper engine cover.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

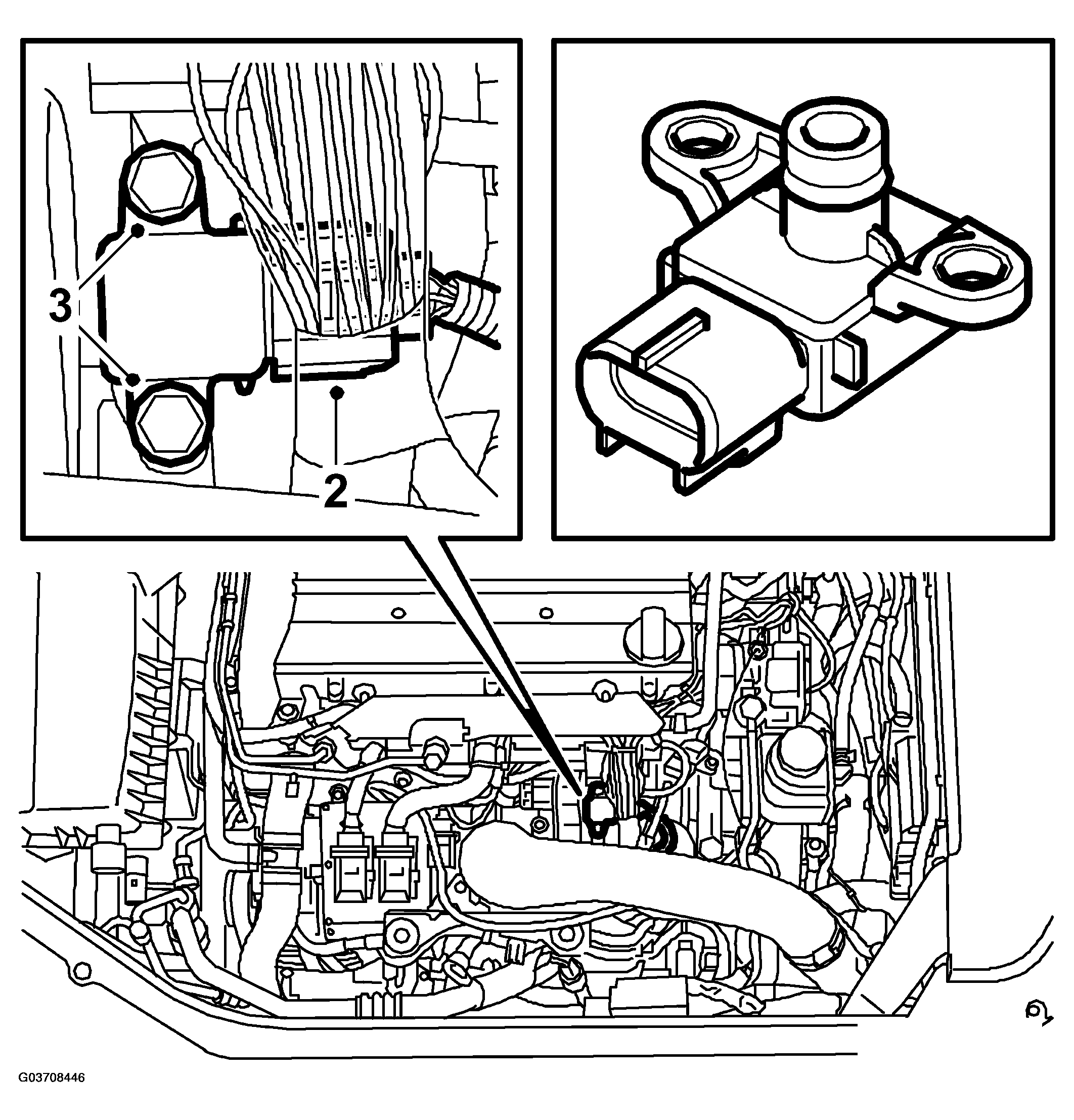

Carefully press down the catch with a screwdriver and unplug the connector.

Fig 2: Illustration For Step 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the sensor.
