Home >> Saab >> 2004 >> 9-3 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Adjustment - Replacement >> Measurement unit, combustion (740) >> To remove
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

To remove

  1. Unplug the connector to CDM.

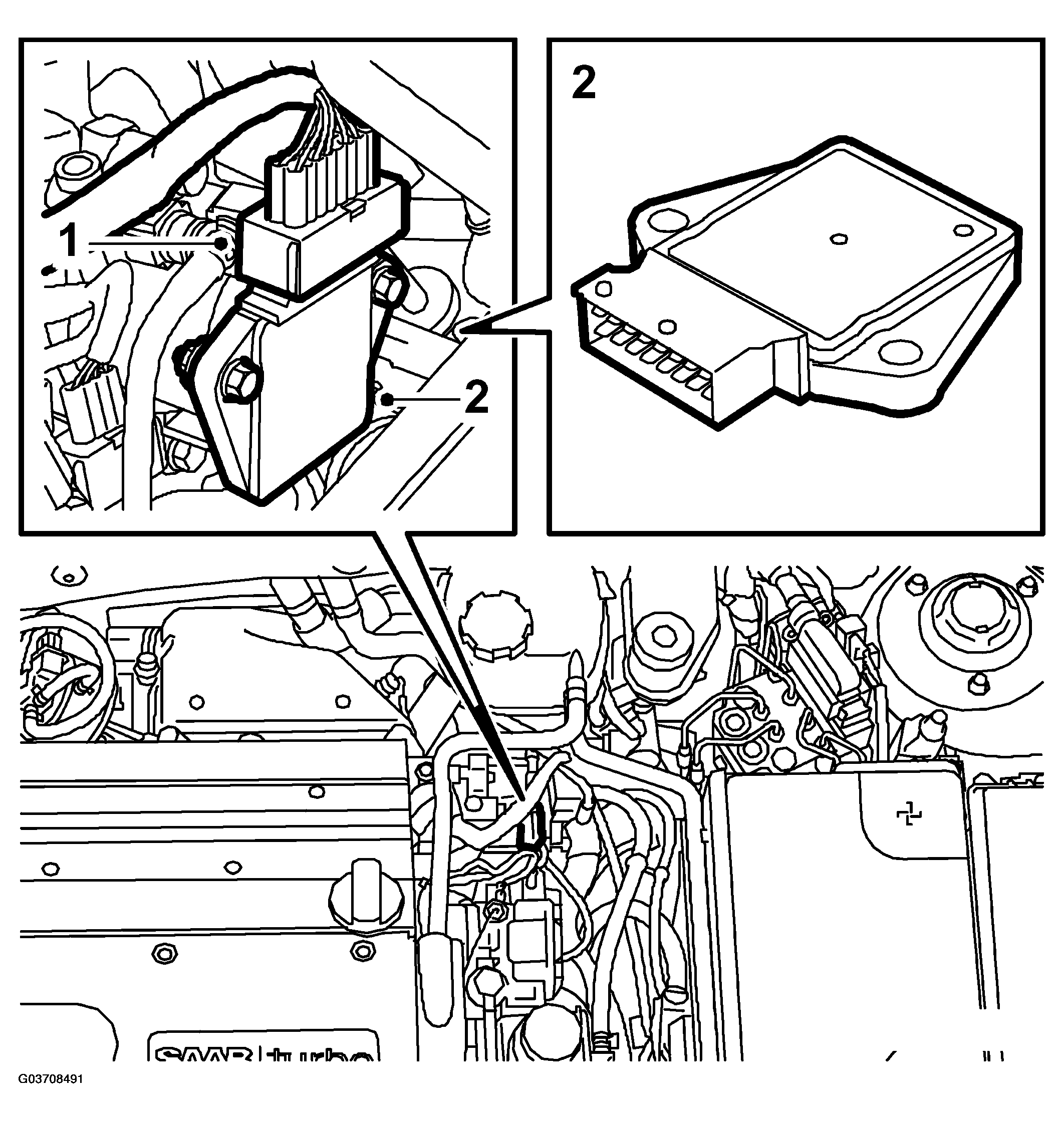

    Fig 1: Illustration For Step 1-2
    G03708491Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove CDM.
