Crimp J95, main harness: Location:

4D:  Approx. 60 mm from branching point left front door to engine bay

CV:  Approx. 30 mm from branching point left front door to engine bay

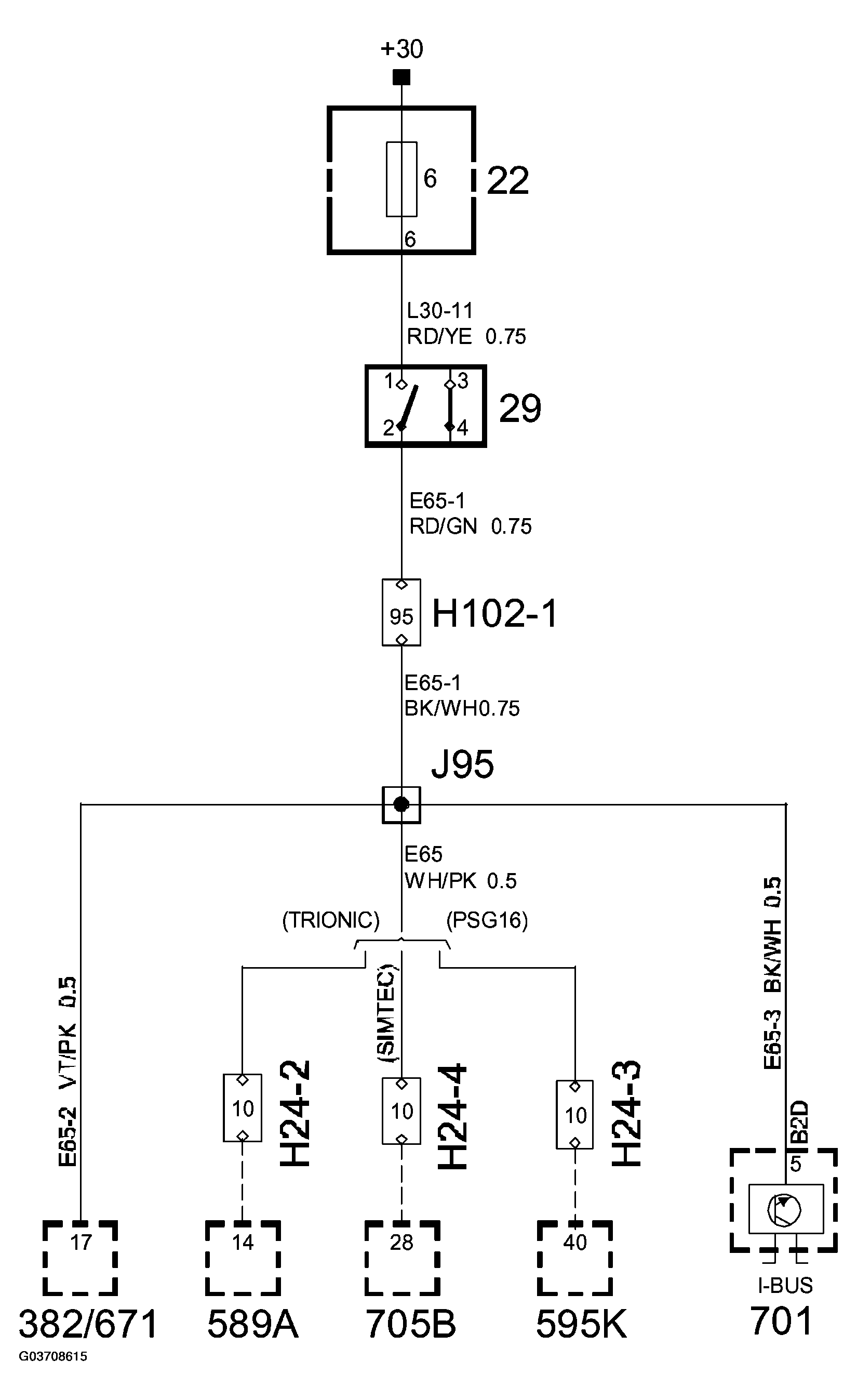

Fig 1: Crimp J95 Main Harness Wiring Diagram
G03708615Courtesy of SAAB-SCANIA OF AMERICA, INC.
