Heated oxygen-sensor, rear (593): Simtec: Location:

on the exhaust pipe behind the engine

on a bracket at the rear center of the engine

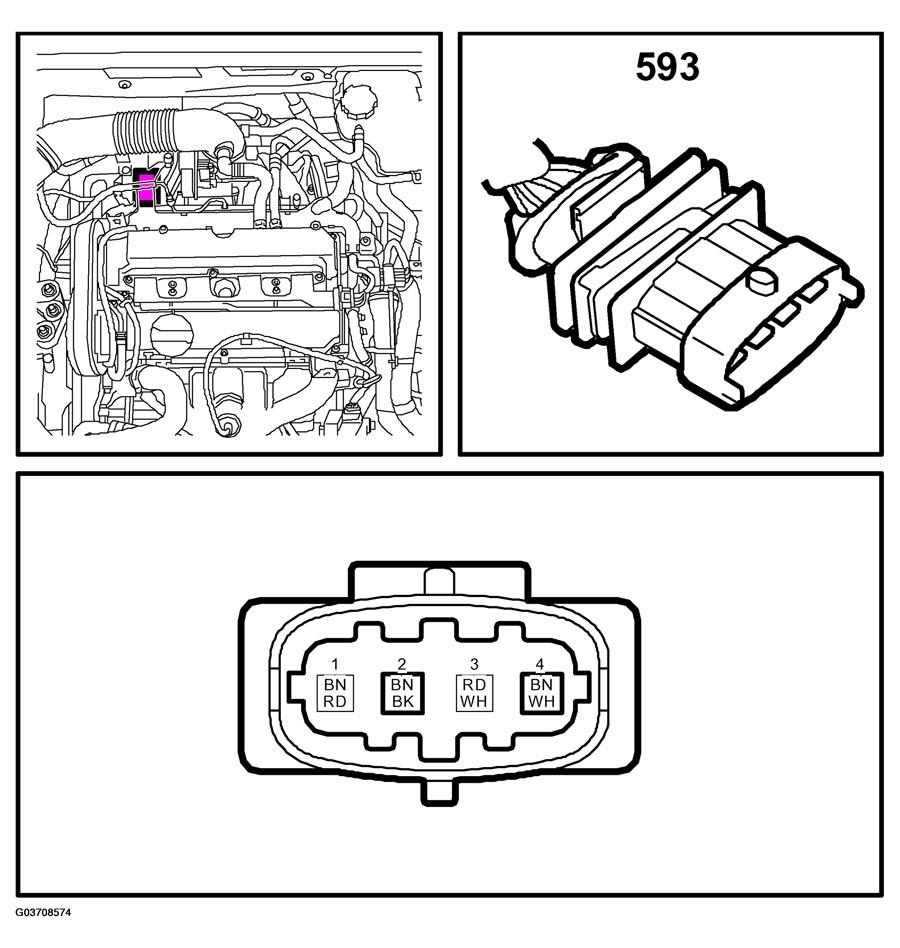

Fig 1: Identifying Heated Oxygen-Sensor Rear (593) (Simtec)
G03708574Courtesy of SAAB-SCANIA OF AMERICA, INC.
