Main relay, engine control system (229): Location:: PSG16

in underhood electrical center 342

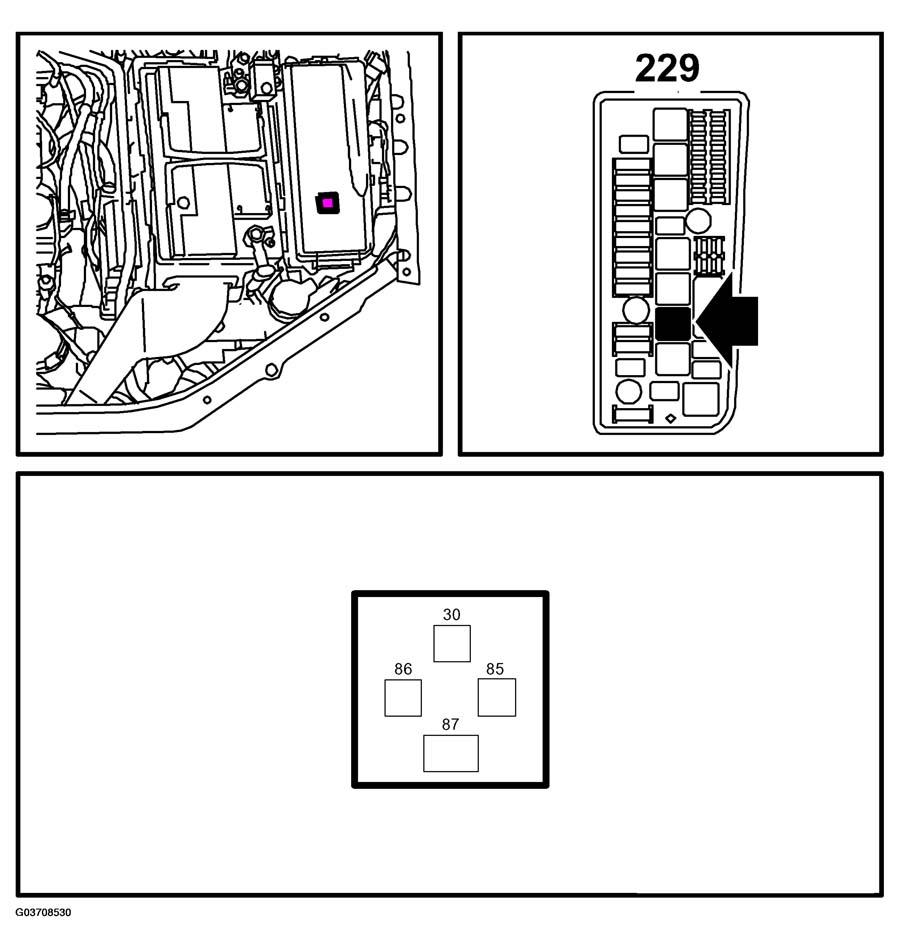

Fig 1: Identifying Engine Control System Main Relay (PSG16)
G03708530Courtesy of SAAB-SCANIA OF AMERICA, INC.
