Main relay, engine control system (229): Location:: T8

in the main fuse box in front of battery

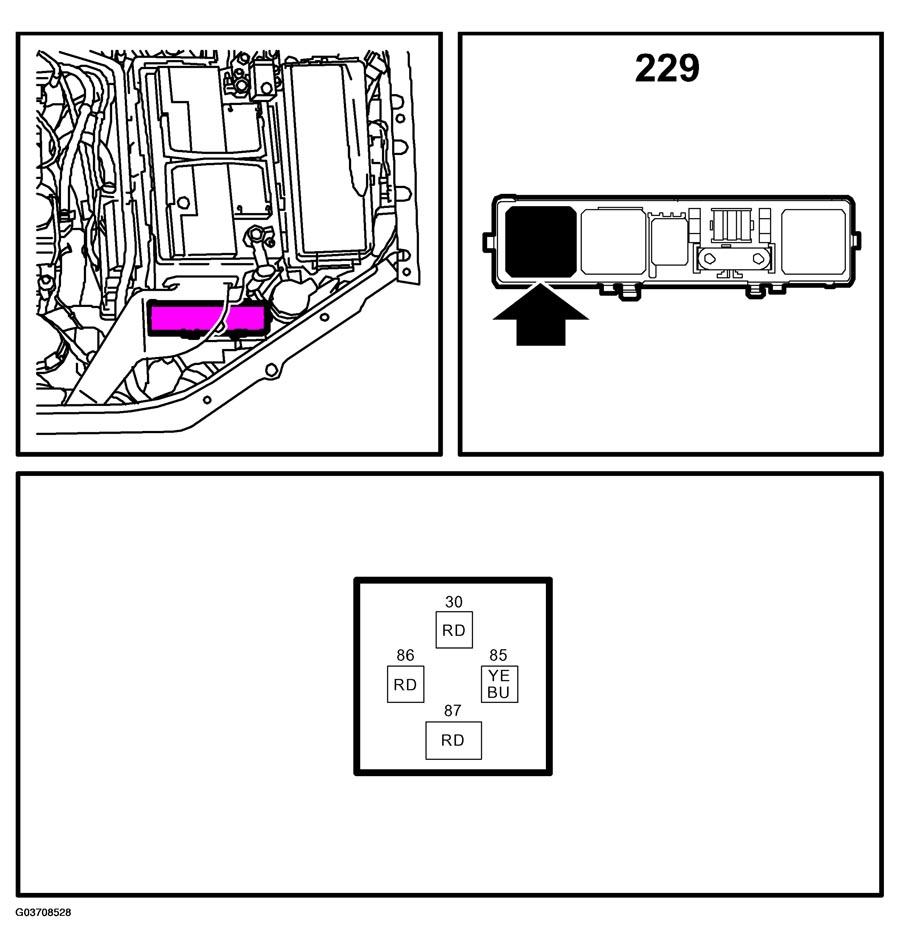

Fig 1: Identifying Engine Control System Main Relay - Trionic T8
G03708528Courtesy of SAAB-SCANIA OF AMERICA, INC.
