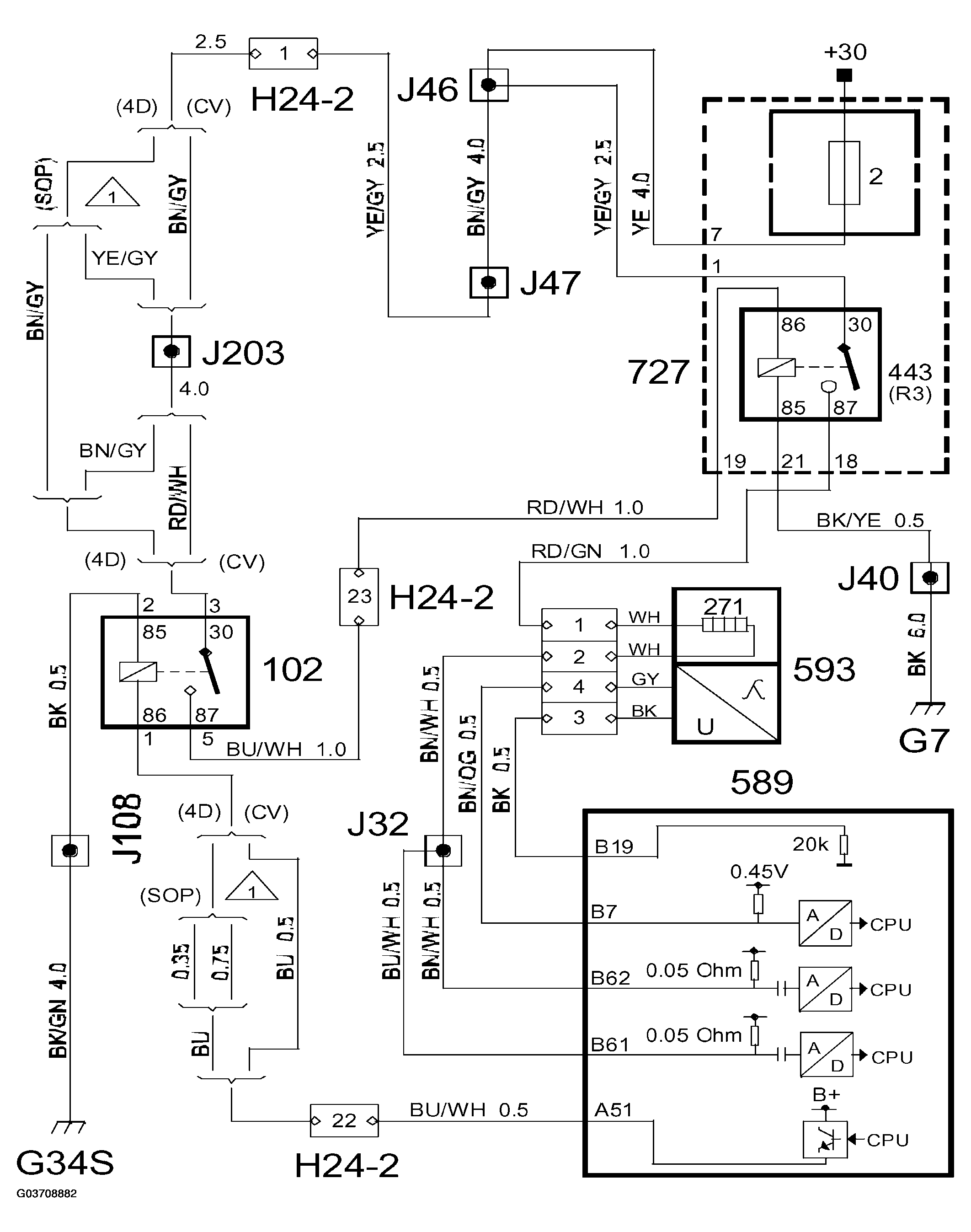

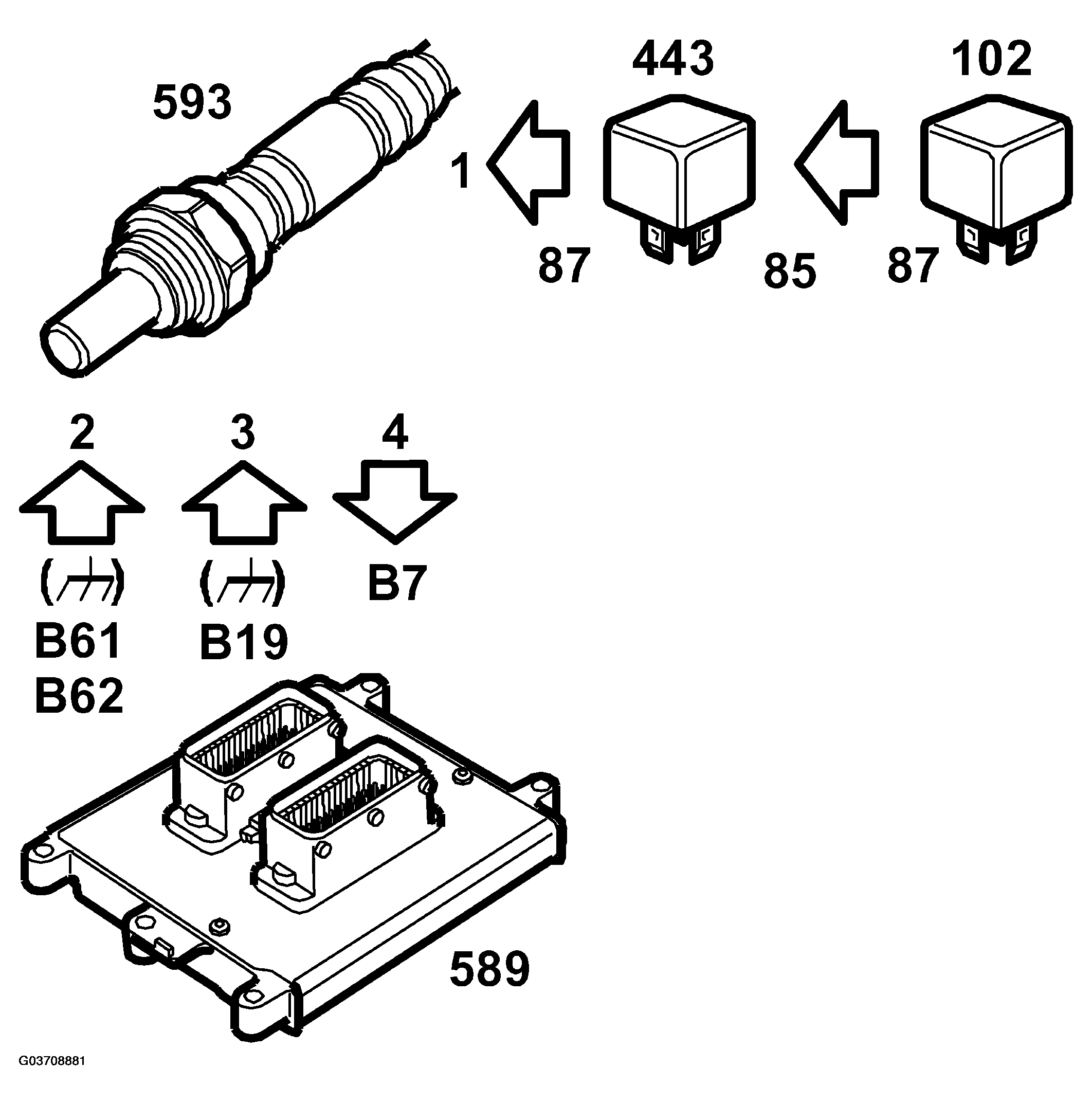

Rear preheated oxygen sensor (593), T8: Connection
| Pin No. | Signal type | Description |
|---|---|---|
| 1 | Power supply, B+ | Preheating power supply from preheating relay. |
| 2 | Control | The preheating operation. The preheating is grounded by ECM pin 61(B) and 62(B) which controls the preheating current. |
| 3 | Ground | The oxygen sensors signal grounding. Connected to ECM pin 19(B). |
| 4 | Signal | Oxygen sensor's signal. Connected to ECM pin 7(B). |
In order to quickly generate a signal after start the oxygen sensor must be preheated. In order to control the heating effect the grounding of the circuit is pulse width modulated.
The preheating is activated as soon as the coolant temperature exceeds 30°C.
The control module estimates the exhaust gas temperature on the basis of load and engine speed. At high temperatures the preheating is disconnected to avoid damaging the oxygen sensor.
If the catalytic converter is damaged its oxygen storage capability is reduced. The normal swings in the lambda control will then be noted from the voltage signal of the second oxygen sensor and a trouble code will be set. The catalytic converter is checked once every drive cycle.
The signal value of the second sensor is also used to adjust the lambda control to compensate for minor faults in the first sensor.
The best emission values are obtained when the voltage from oxygen sensor 2 is 0.6V.
If the voltage is, for example, 0.3 V the engine has a slightly weak mixture. The lambda control factor will then be locked in the rich condition for a certain number of cycles before the voltage from sensor 1 is allowed to influence the factor again.
