Sun sensor (223)

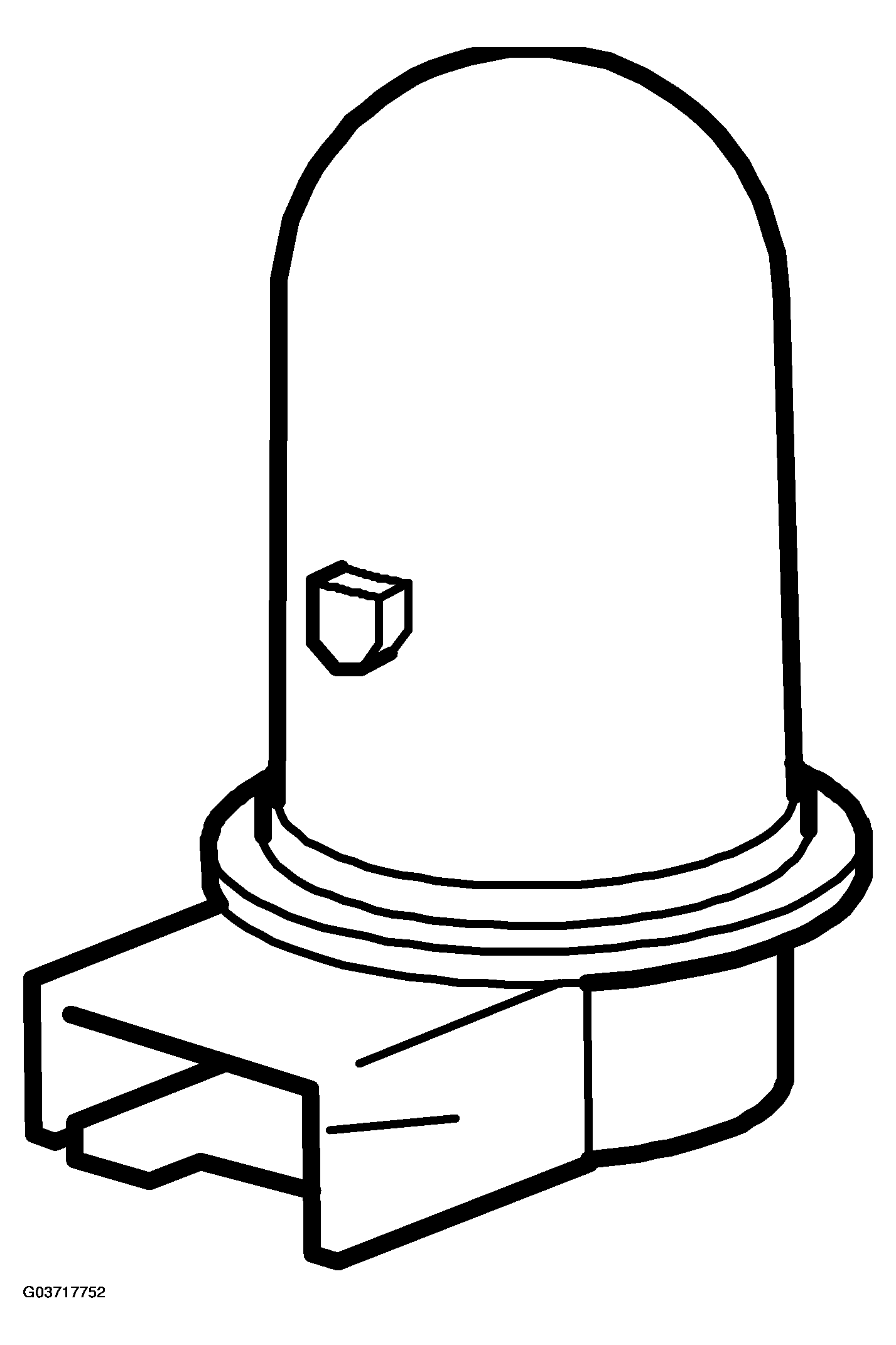

Fig 1: View Of Sun Sensor (223)
G03717752Courtesy of SAAB-SCANIA OF AMERICA, INC.
SUN SENSOR (223) TECHNICAL DATA

Power supply B+ pin no 1
Ground pin no 4
Sensor signal pin no 2

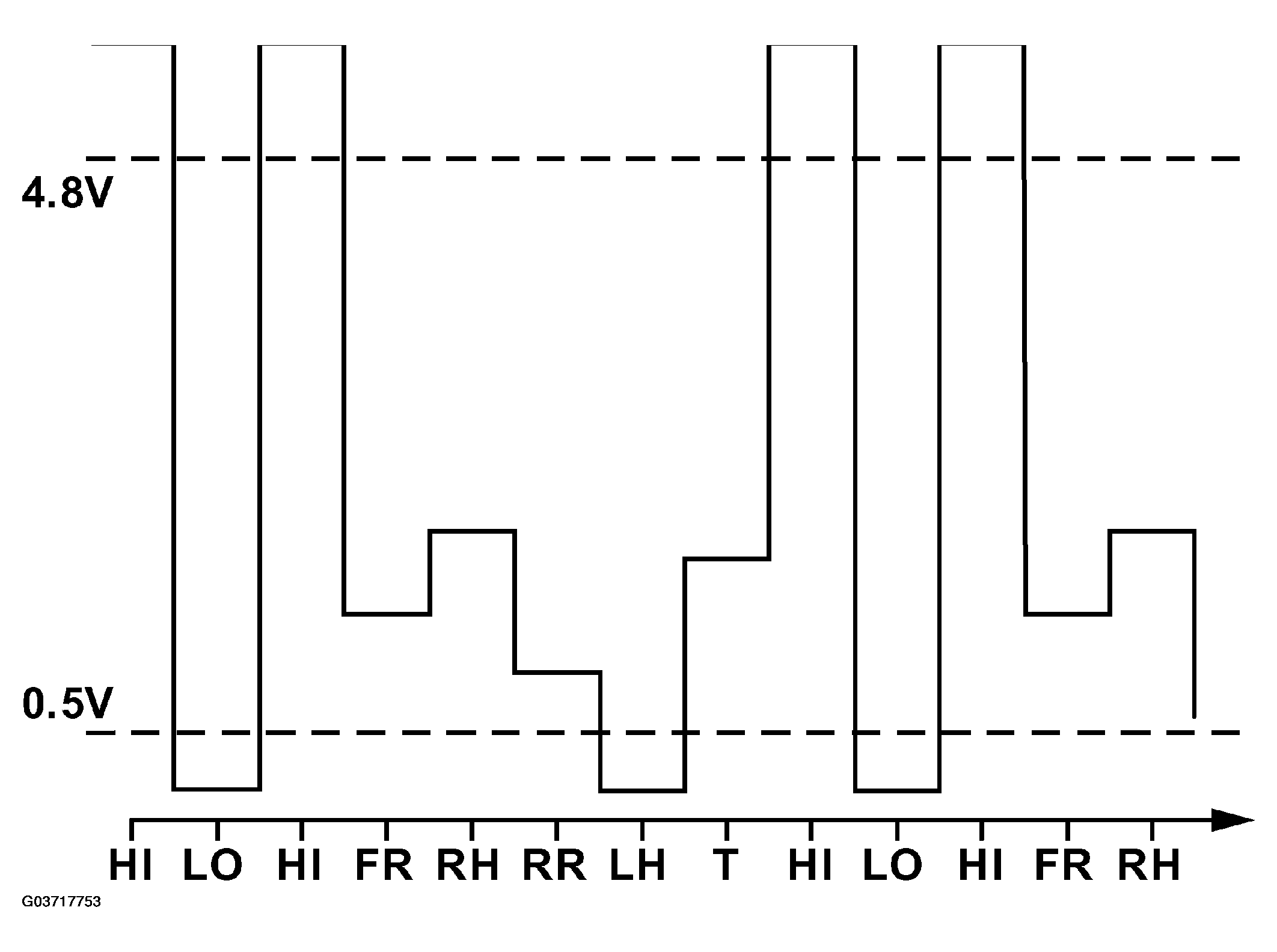

Fig 2: Sun Sensor (223) Graph
G03717753Courtesy of SAAB-SCANIA OF AMERICA, INC.
