To remove

1. Remove the subframe, see Subframe, TO REMOVE  and TO FIT , Z18XE

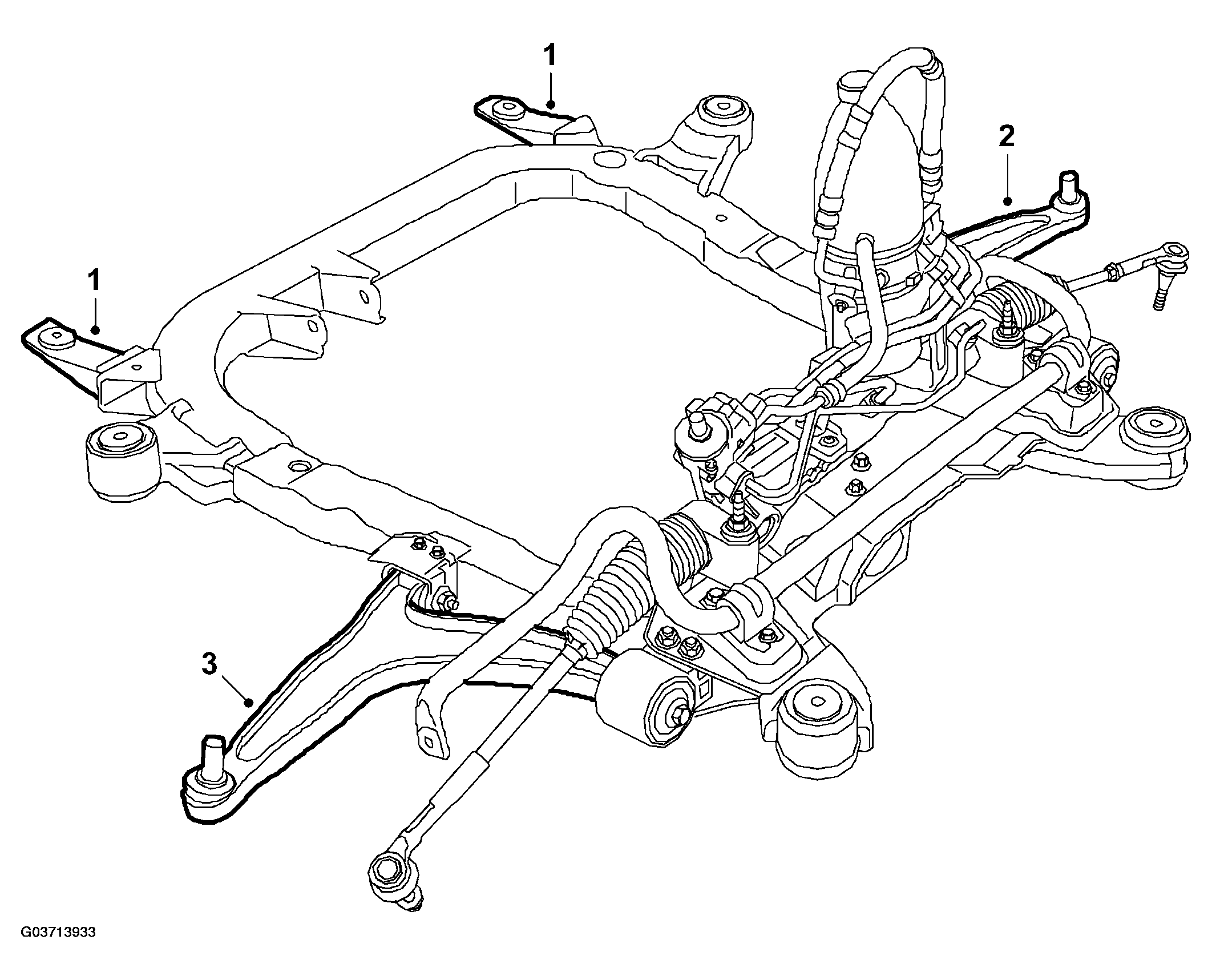

   Fig 1: Illustration For Steps 1-4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Remove the anti-roll bar (3) from the subframe.

   4 x Unscrew bolt. Instructions: Mark the fitting position.

3. Remove the steering gear (2) with EHPS supply unit (1) from the subframe.
4. Remove the rear torque rod (4) from the subframe

   2 x Unscrew bolt

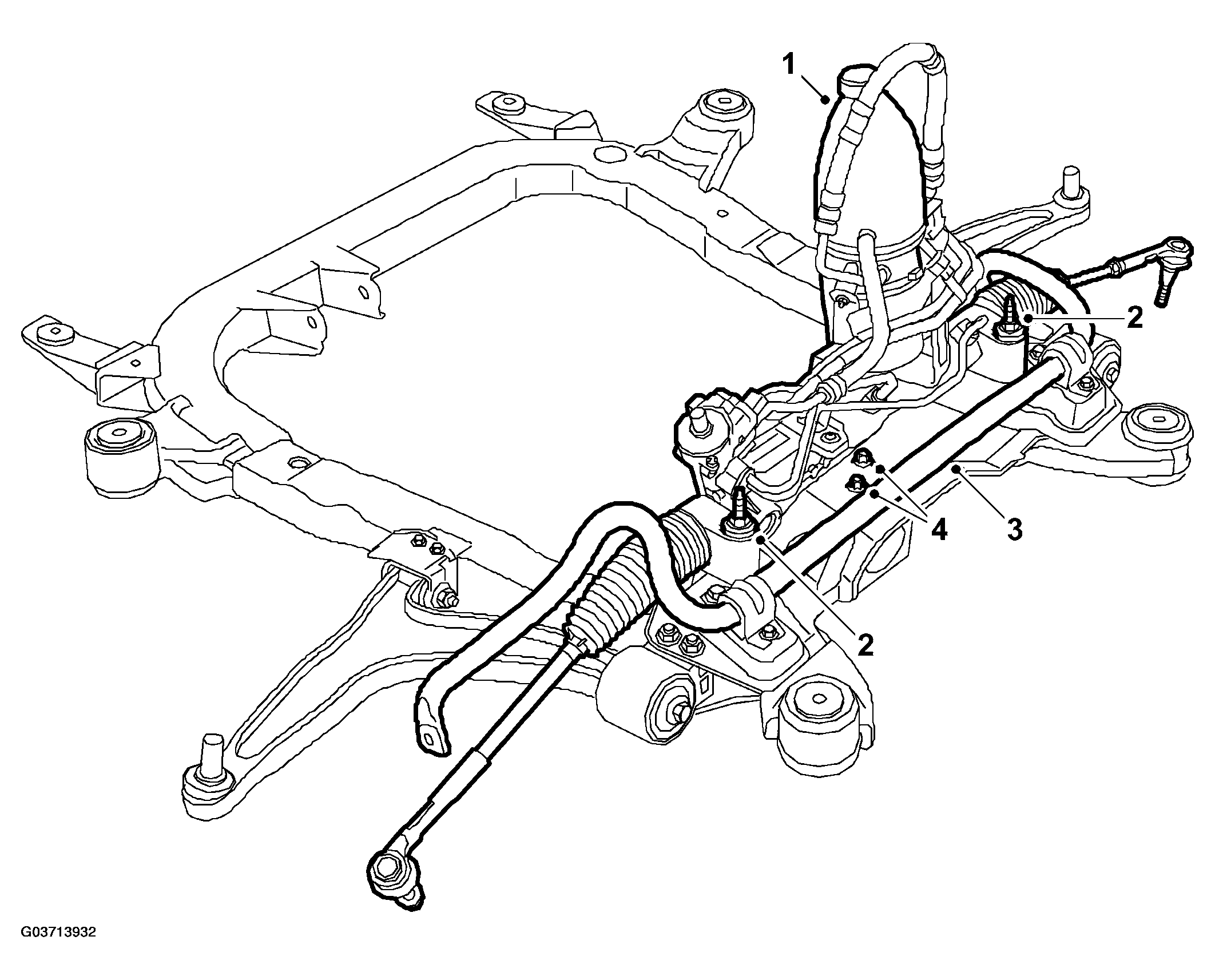

   Fig 2: Illustration For Steps 1-4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Remove the right-hand link arm (2) from the front axle beam

   3 x Unscrew bolt

6. Remove the left-hand link arm (3) from the front axle beam

   3 x Unscrew bolt

7. Remove radiator holder (1) left and right

   1 x Unscrew bolt

8. Lift away the subframe from the trolley lift.

Instructions: One more technician is necessary.
