Temperature sensor, coolant (202)

4 cylinder petrol

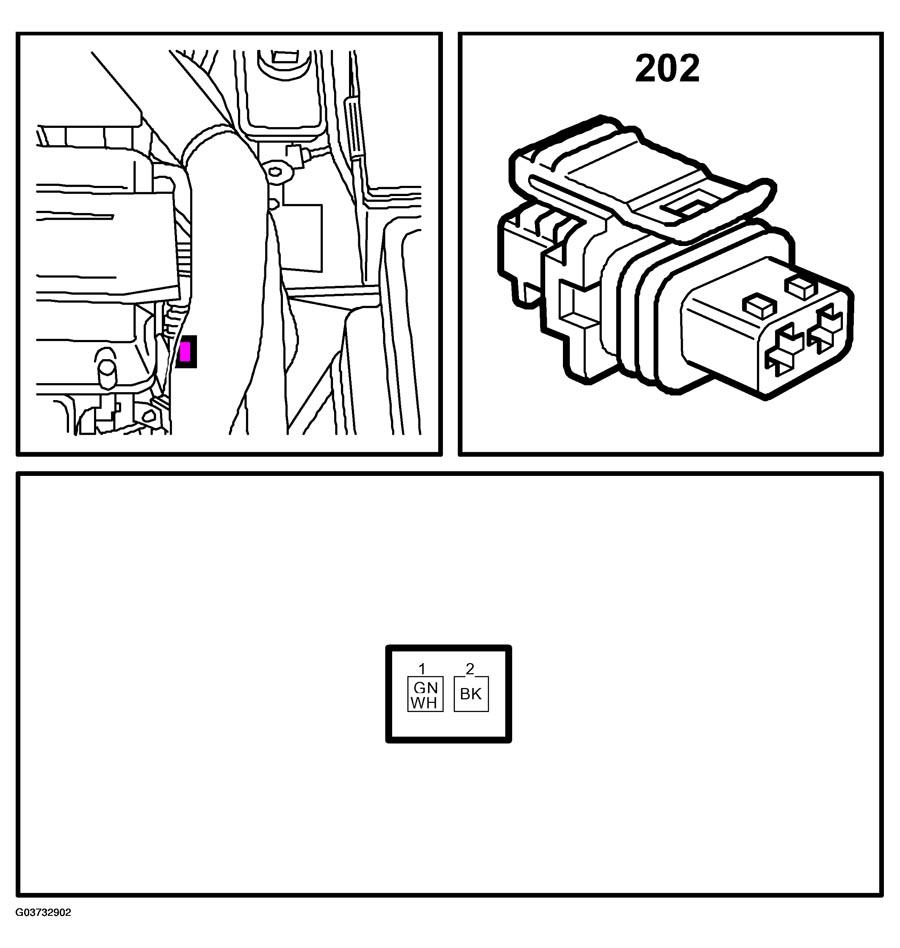

Fig 1: Identifying Coolant Temperature Sensor (4 Cylinder Petrol) Connector Pinout
G03732902Courtesy of SAAB-SCANIA OF AMERICA, INC.

4-cyl diesel

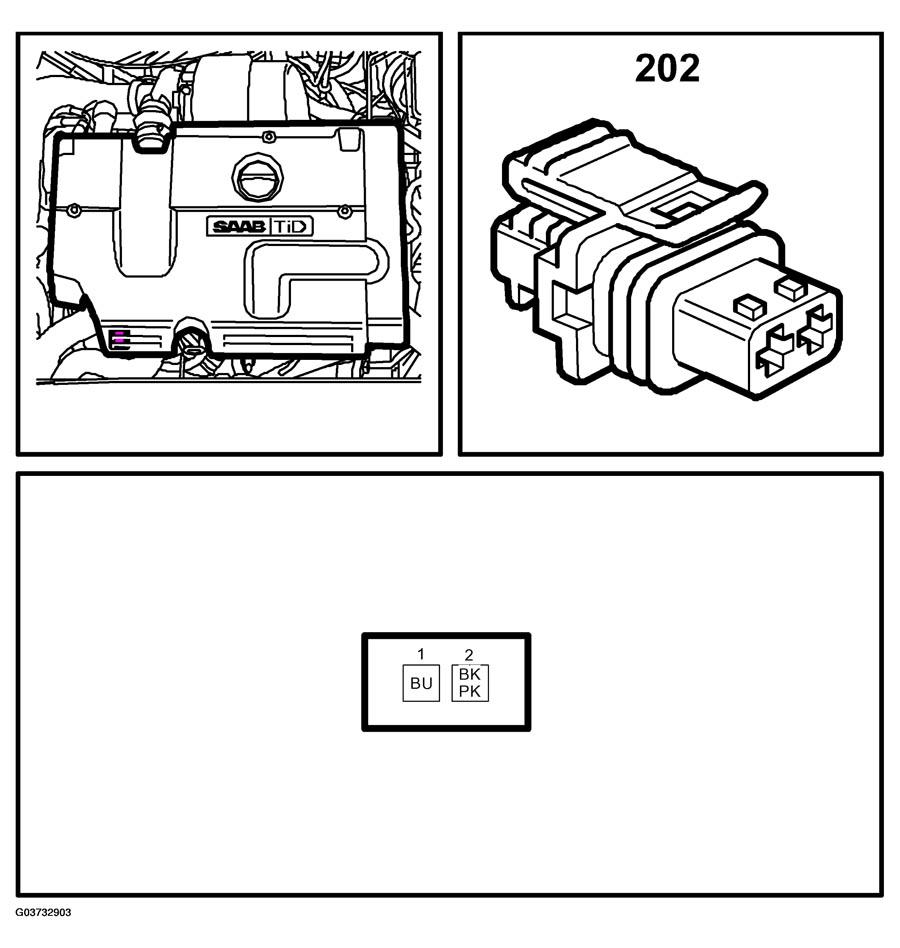

Fig 2: Identifying Coolant Temperature Sensor (4-Cyl Diesel) Connector Pinout
G03732903Courtesy of SAAB-SCANIA OF AMERICA, INC.

V6 diesel

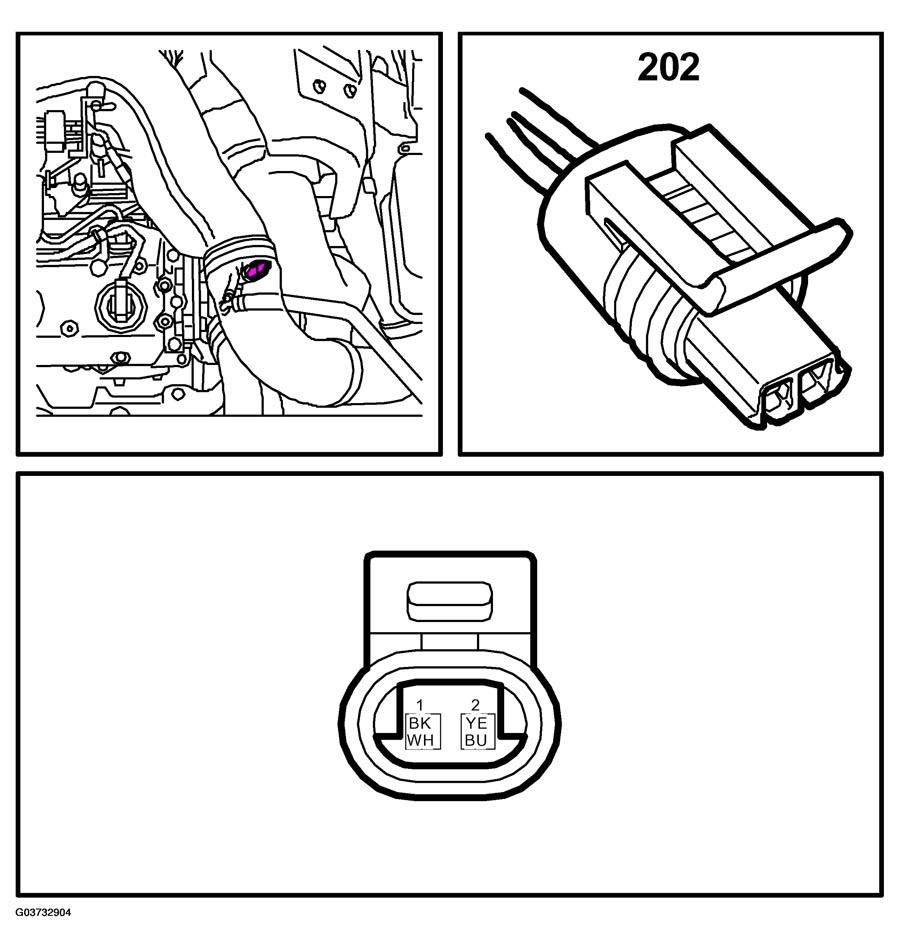

Fig 3: Identifying Coolant Temperature Sensor (V6 Diesel) Connector Pinout
G03732904Courtesy of SAAB-SCANIA OF AMERICA, INC.
