DICE control module (628)

LHD

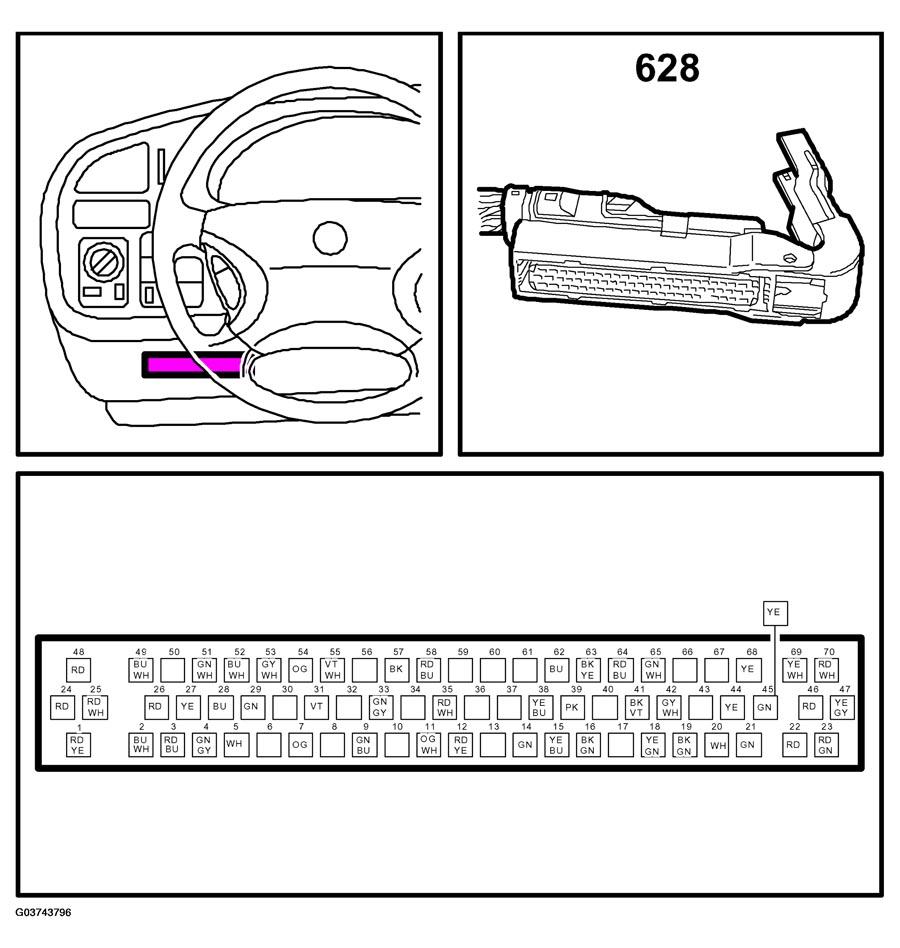

Fig 1: Identifying DICE Control Module (628) (LHD)
G03743796Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

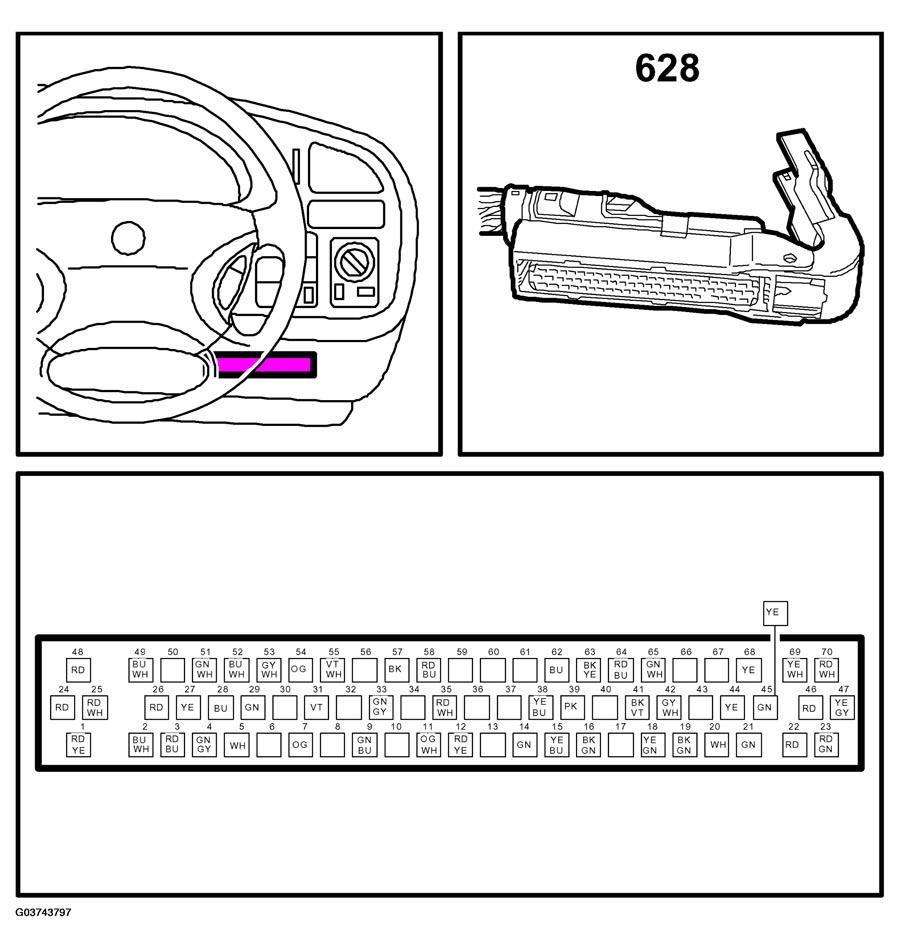

Fig 2: Identifying DICE Control Module (628) (RHD)
G03743797Courtesy of SAAB-SCANIA OF AMERICA, INC.
