Sensor, output speed

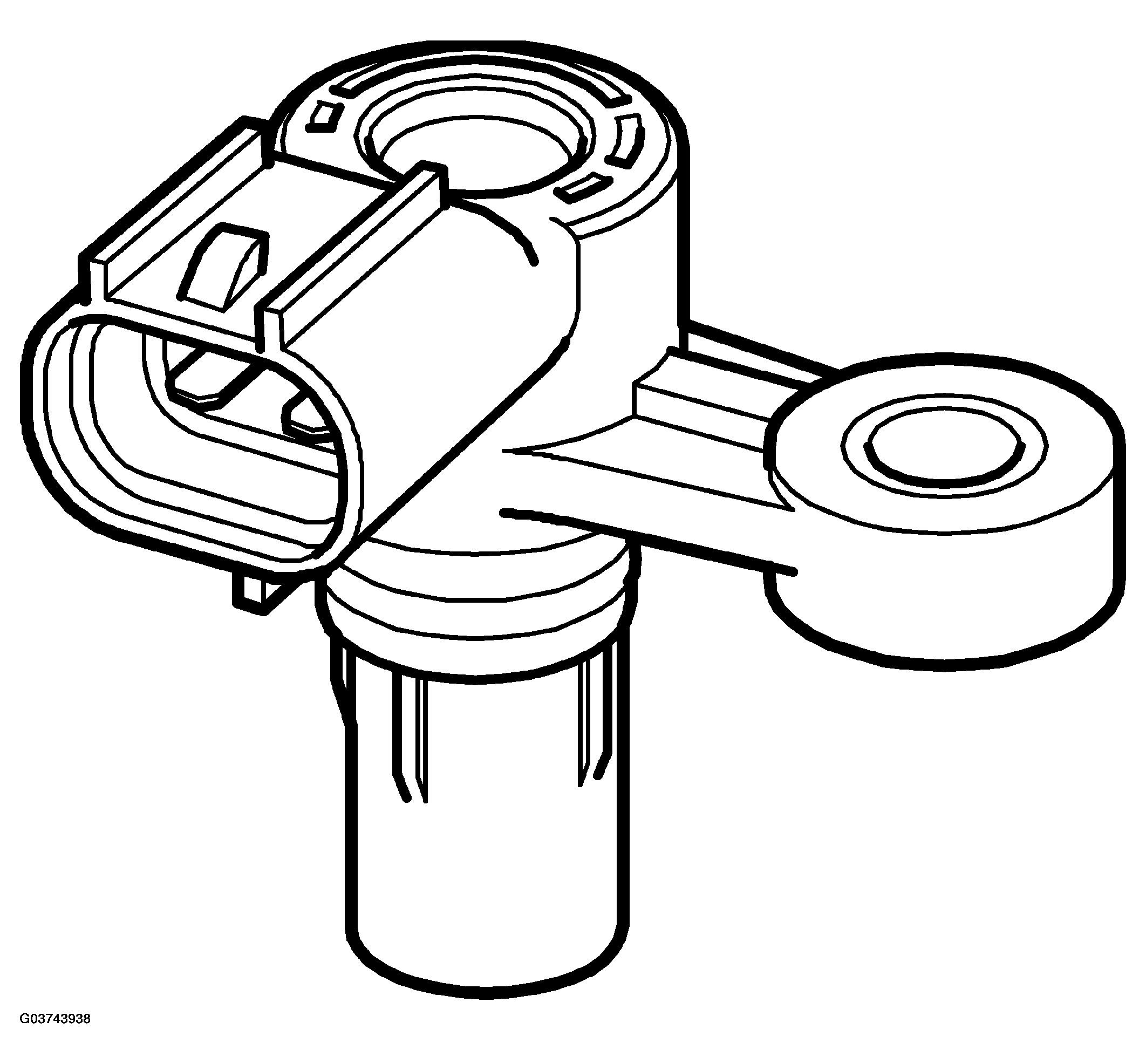

Fig 1: Identifying Output Speed Sensor
G03743938Courtesy of SAAB-SCANIA OF AMERICA, INC.
OUTPUT SPEED SENSOR SPECIFICATION

Location On the transmission casing
Type Hall sensor
Toothed wheel 18 Teeth
