July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Power flow, reverse gear

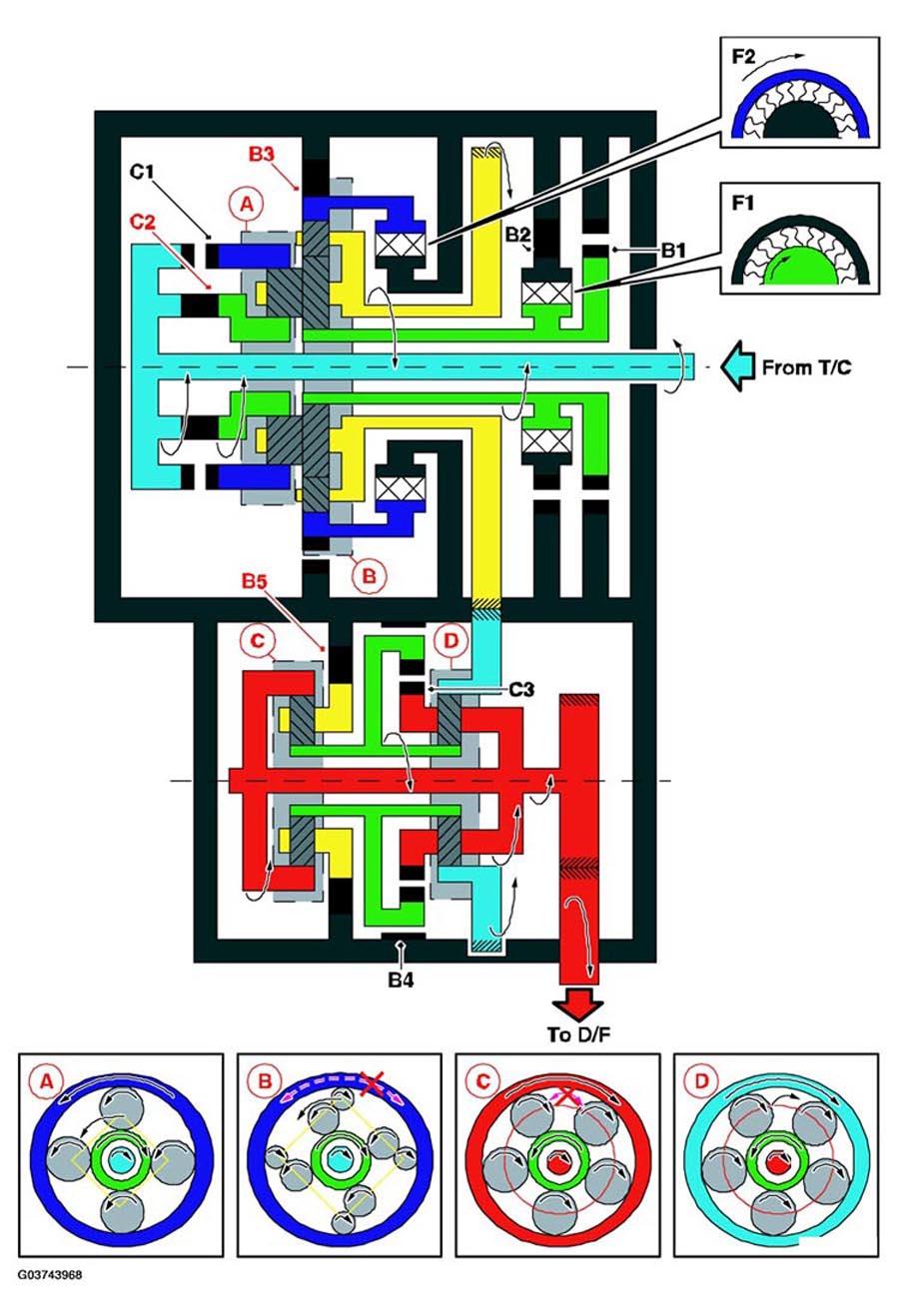

Fig 1: Identifying Reverse Gear Power Flow

Courtesy of SAAB-SCANIA OF AMERICA, INC.

GEAR POWER FLOW SEQUENCE

Position		S1	S2	S3	S4	S5	C1	C2	C3	B1	B2	B3	B4	B5	F1	F2
R	Speed = 7 km/h	OFF	OFF	ON	OFF	ON	OFF	ON	OFF	OFF	OFF	ON	OFF	ON	OFF	OFF
R	Speed 7 km/h	ON	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF	OFF	ON	OFF	OFF
