Grounding point, G41P: Notes

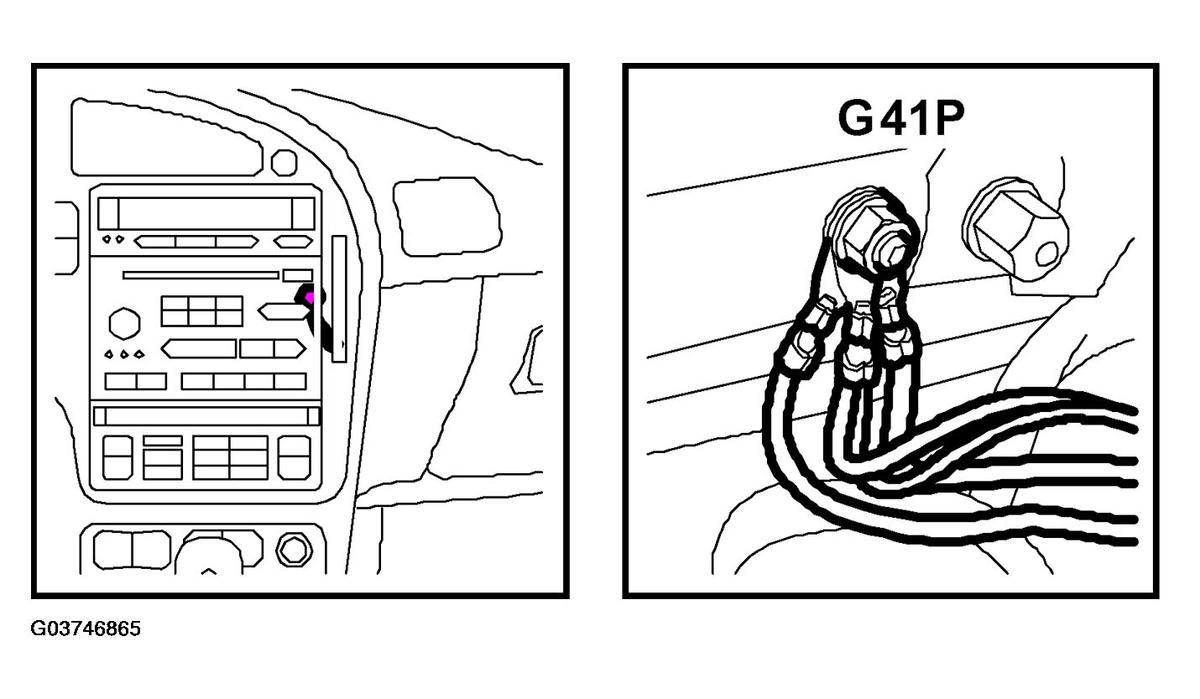

Fig 1: Identifying Grounding Point, G41P
G03746865Courtesy of SAAB-SCANIA OF AMERICA, INC.

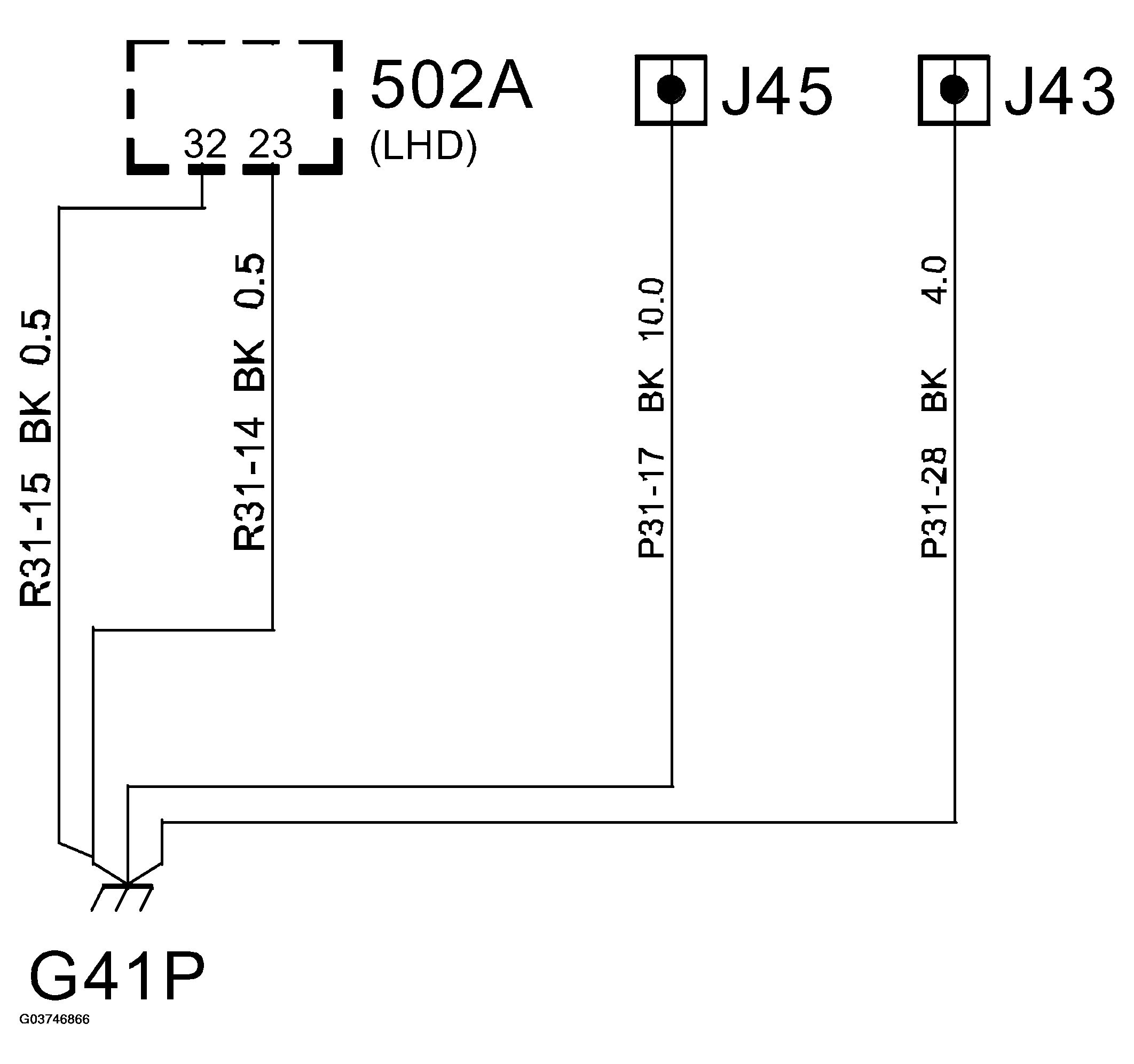

Fig 2: Identifying Grounding Point, G41P Connection Diagram
G03746866Courtesy of SAAB-SCANIA OF AMERICA, INC.
