Switch unit (357D)

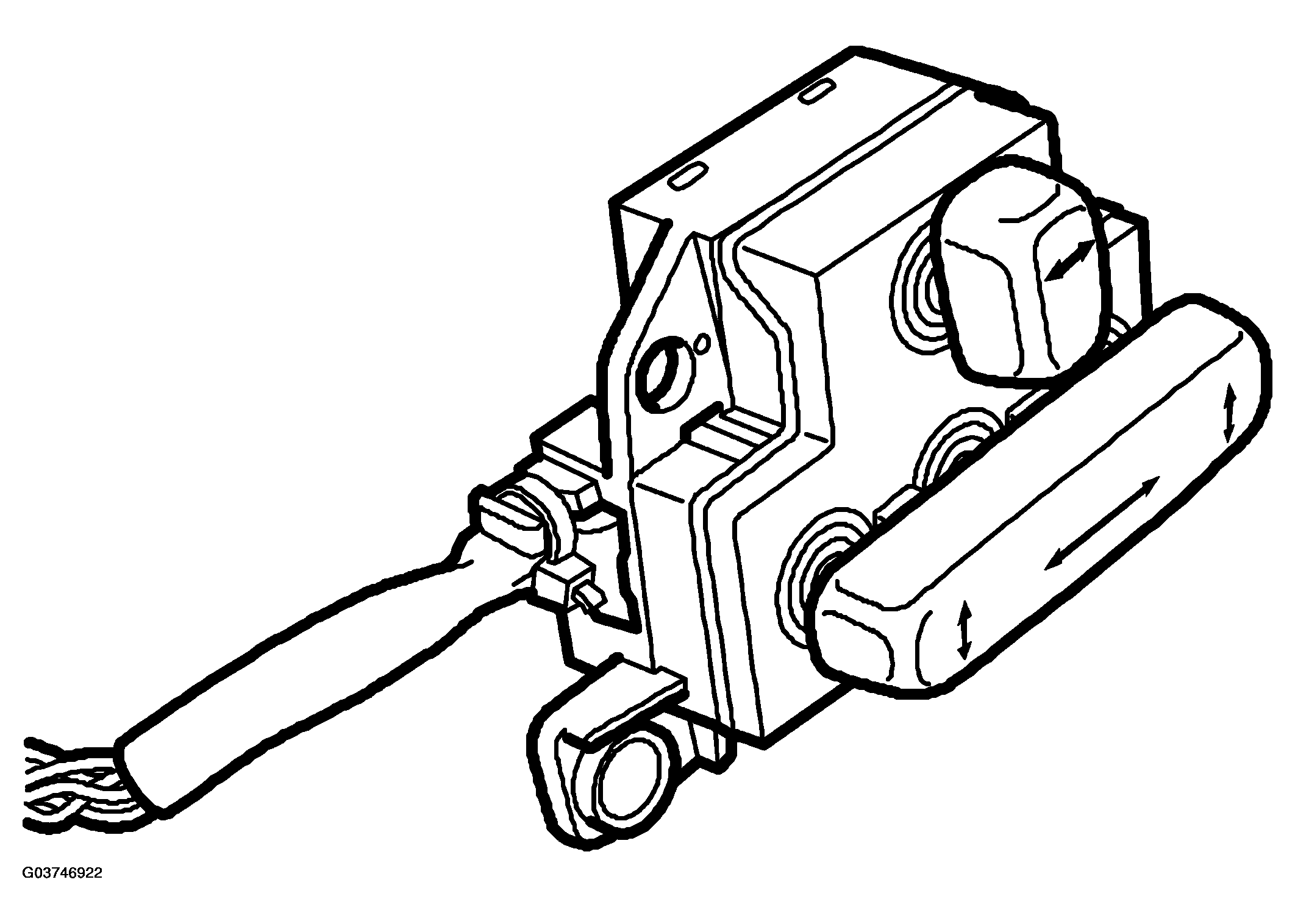

Fig 1: Identifying Switch Unit
G03746922Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - SWITCH UNIT

Number of connector pins qty 9
Power supply pin 1
