Heated front seat: Notes

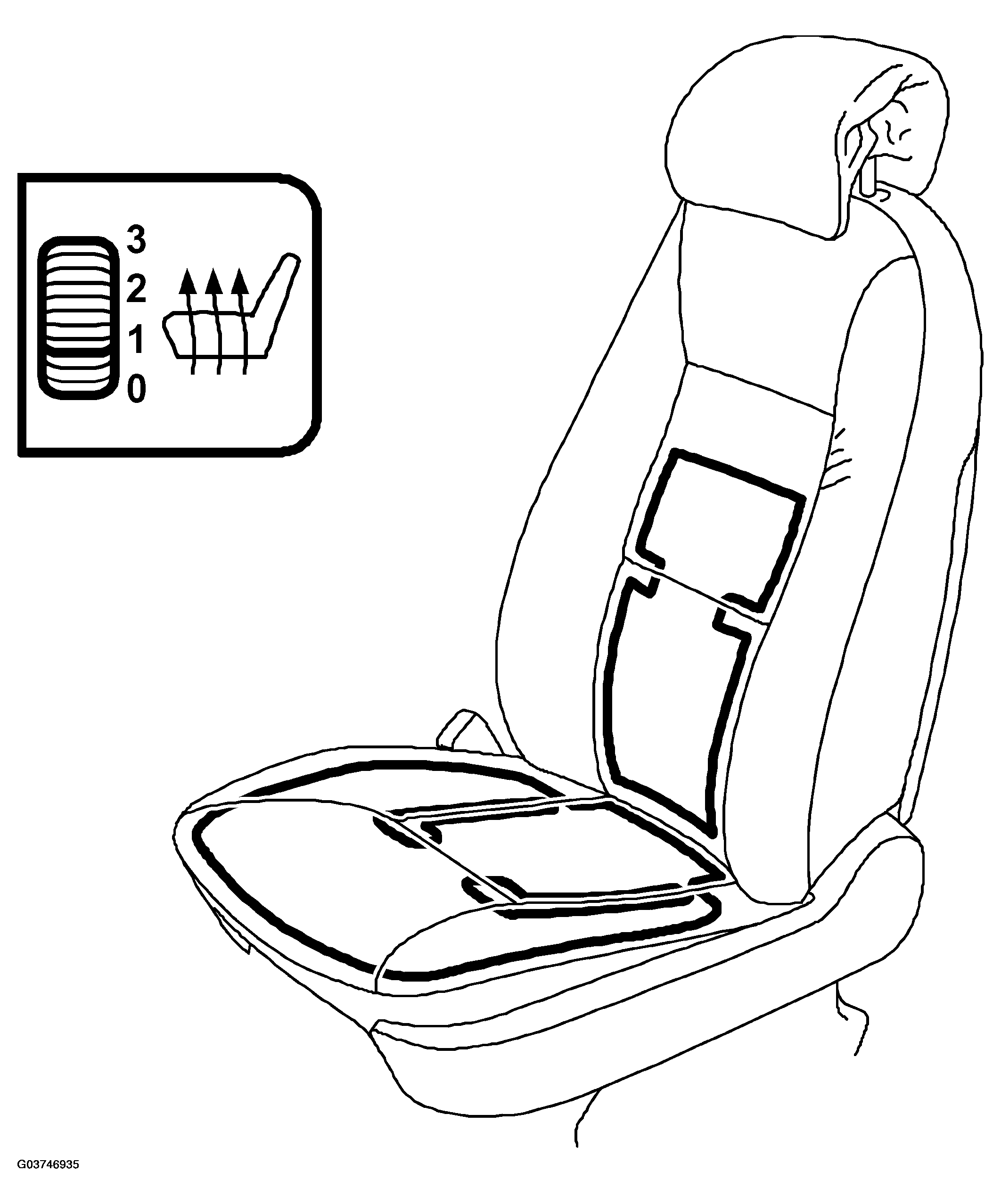

Fig 1: Identifying Heated Front Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

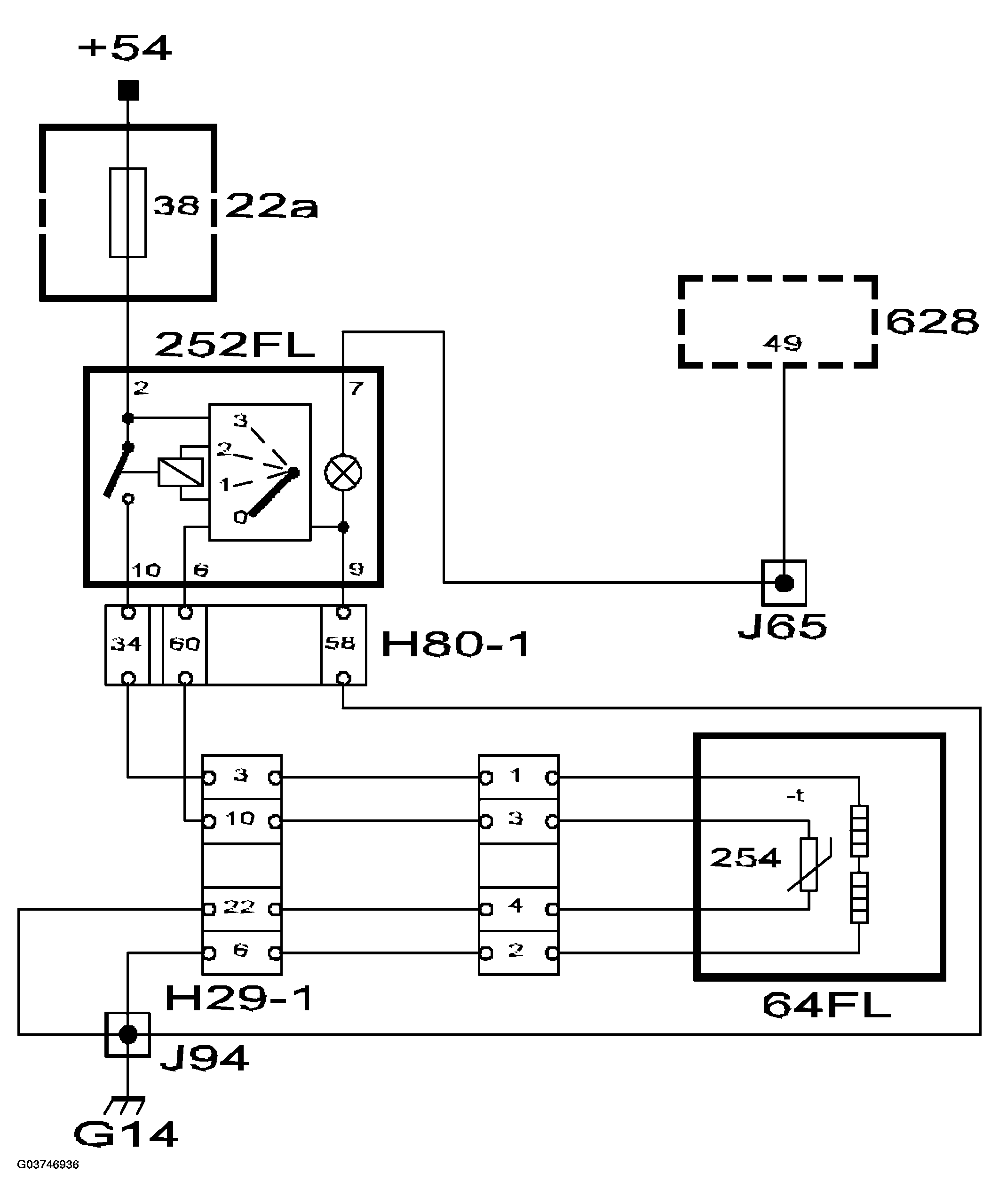

Fig 2: Circuit Diagram - Heated Front Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The seat and backrest on both front seats are heated. The heating is turned on when the ignition is ON (+54 circuit).
