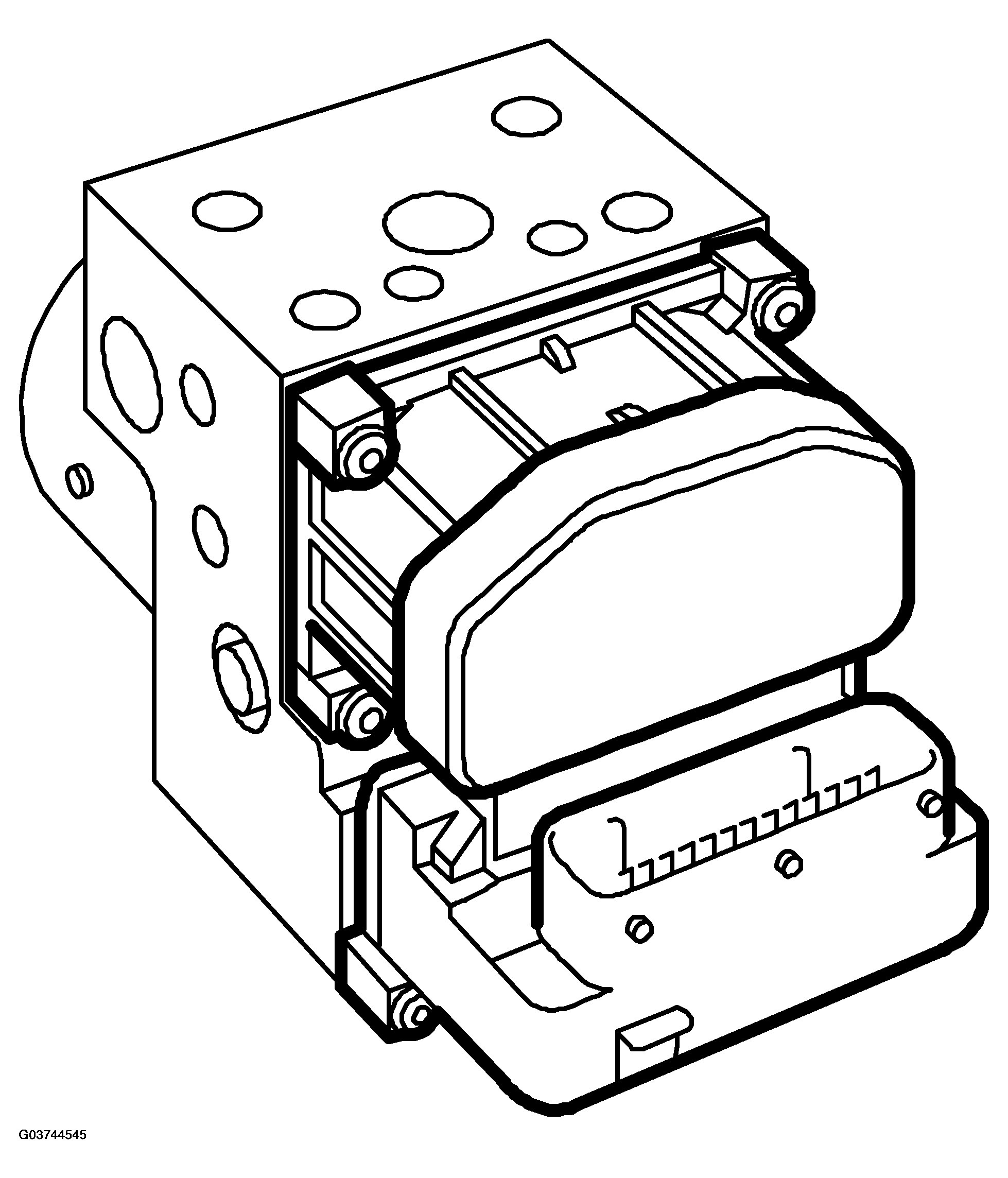

Control module (integrated into hydraulic unit)
Courtesy of SAAB-SCANIA OF AMERICA, INC. CONTROL MODULE (INTEGRATED INTO HYDRAULIC UNIT) TECHNICAL DATA
| Number of terminal pins |
|
26 |
| Power supply, (+30 circuit) |
Pin |
17, 18 |
| Power supply (+15 circuit) |
Pin |
15 |
| Main ground |
Pin |
19 |
| Working voltage |
V |
9-16 |
| Power consumption, brakes-off position |
mA |
<3 |
