Tightening torque

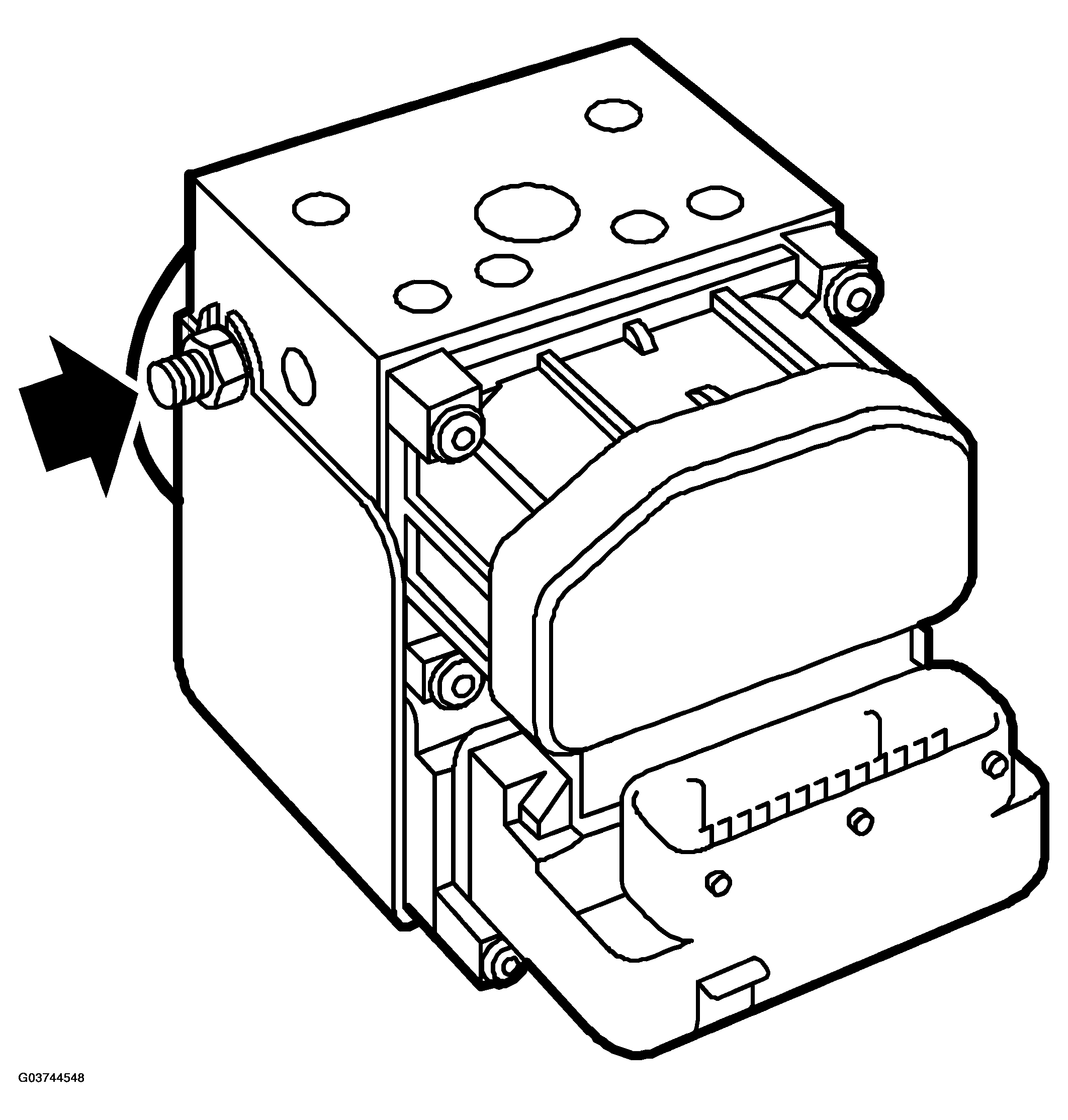

Fig 1: Identifying Hydraulic Unit
G03744548Courtesy of SAAB-SCANIA OF AMERICA, INC.
HYDRAULIC UNIT TIGHTENING TORQUE SPECIFICATION

Hydraulic unit Nm (lbf ft) 20 (14.8)
