To remove

  1. Remove the battery cover.
  2. Remove the battery.
  3. Remove the maxi fuse holder.

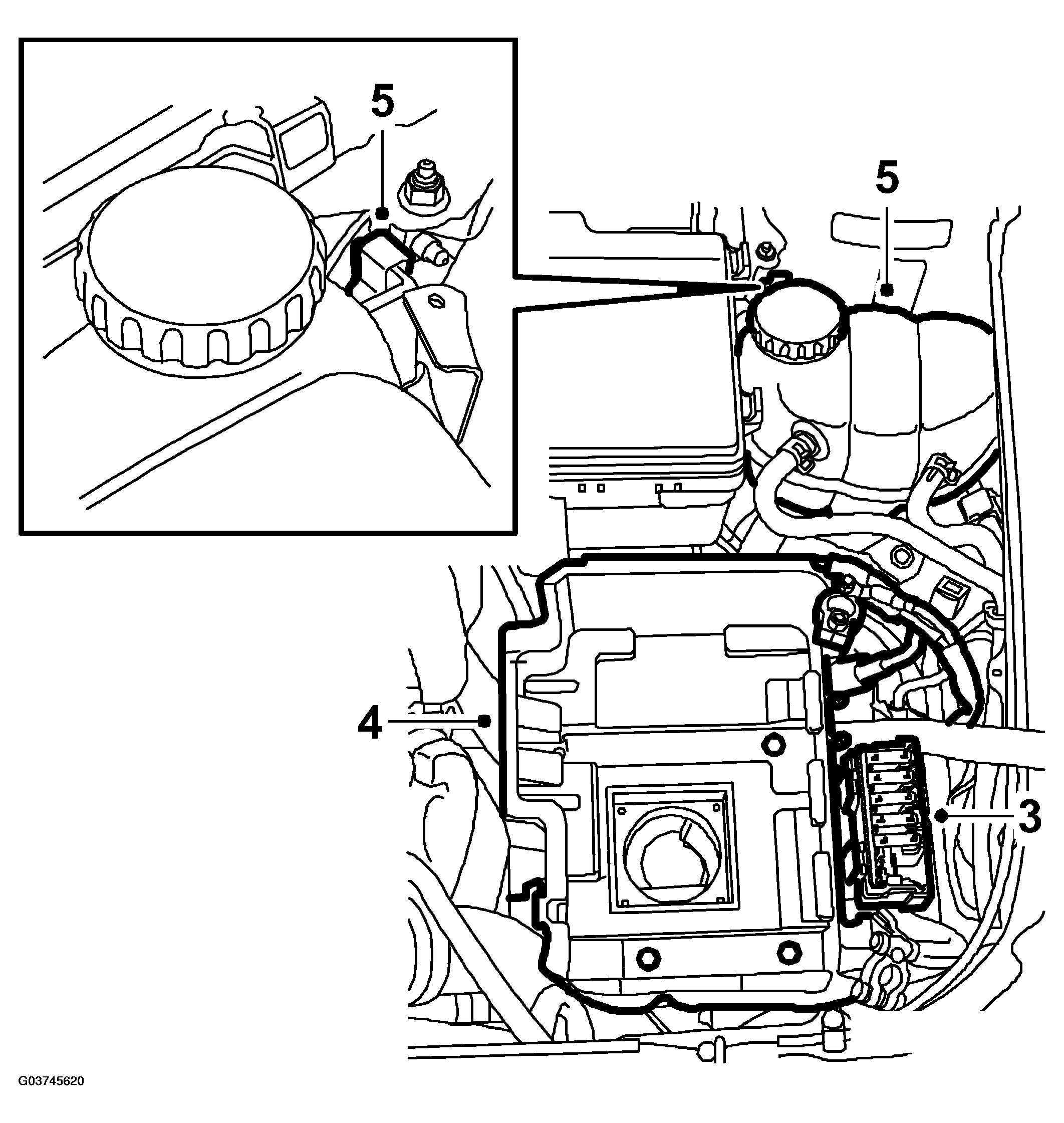

    Fig 1: Illustration For Step 3-5
    G03745620Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the battery tray.
  5. Remove the clip and twist out the coolant reservoir.
  6. Unplug the connector.

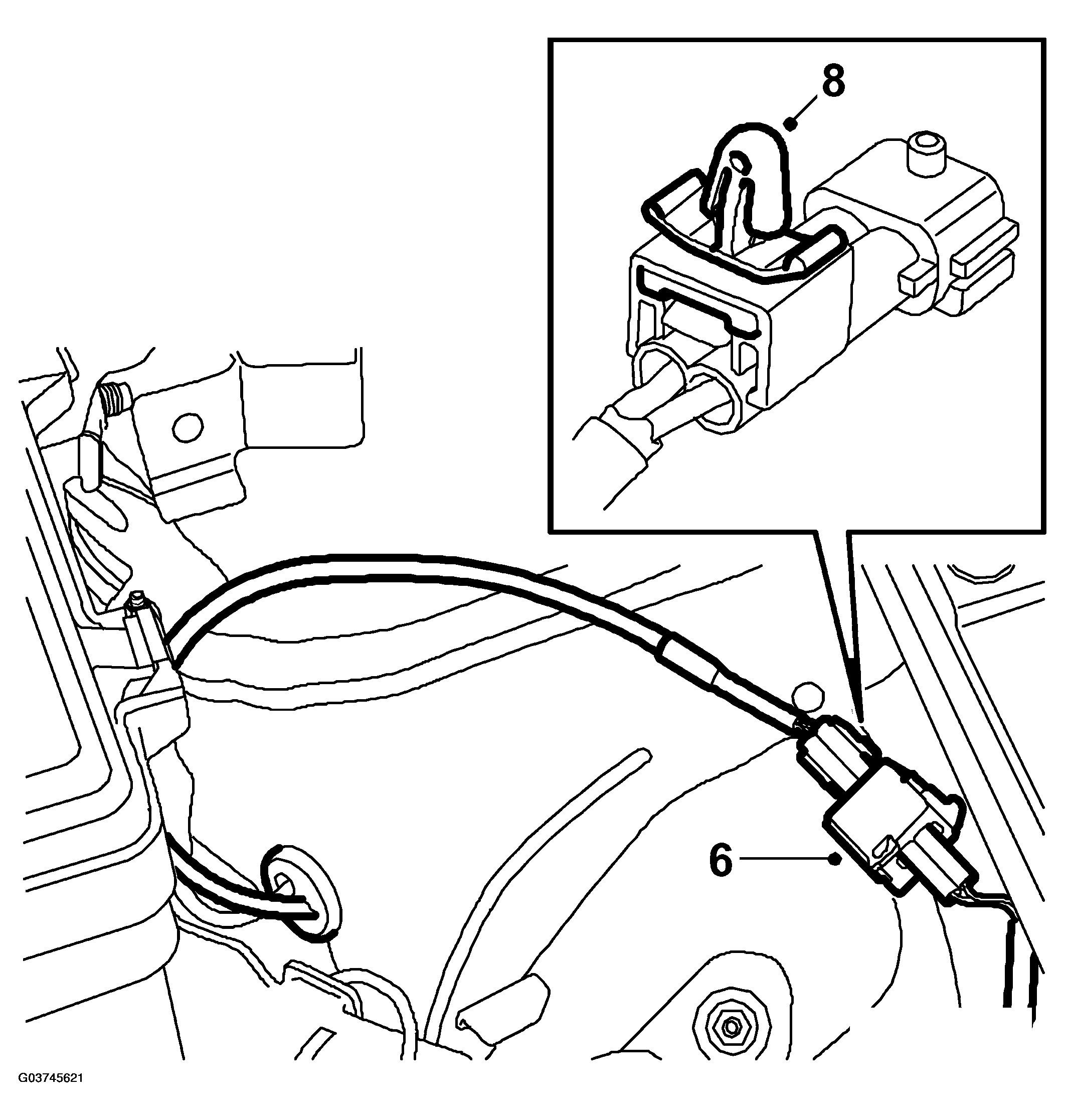

    Fig 2: Illustration For Step 6 And 8
    G03745621Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Remove the clip from the bracket.
  8. Remove the clip from the connector.
  9. Raise the car and remove the wheel.
  10. Clean the area round the wheel sensor using a soft wire brush.
  11. Undo the wheel sensor retaining bolt and remove the wheel sensor.

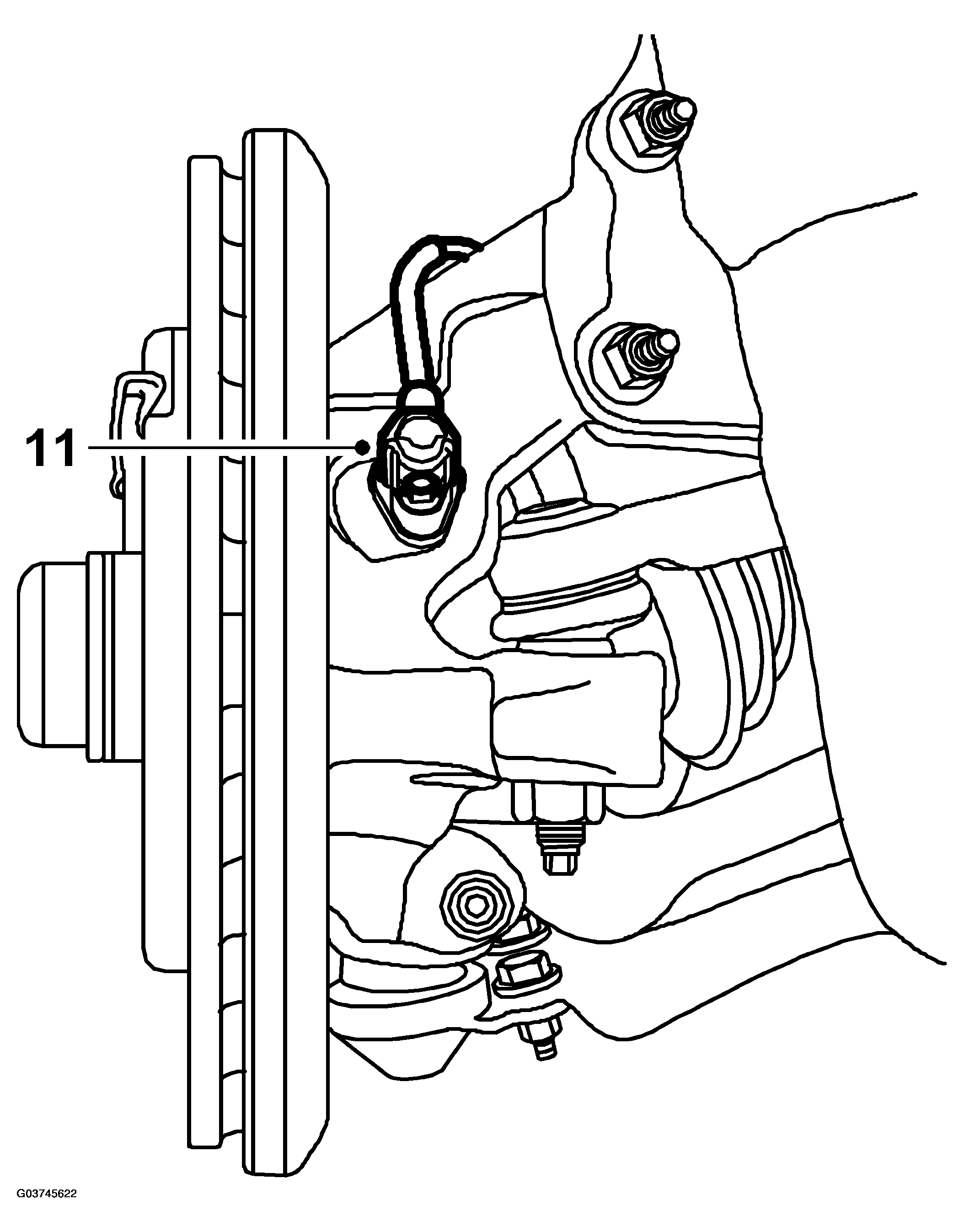

    Fig 3: Illustration For Step 11
    G03745622Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Remove the grommet and withdraw the lead.

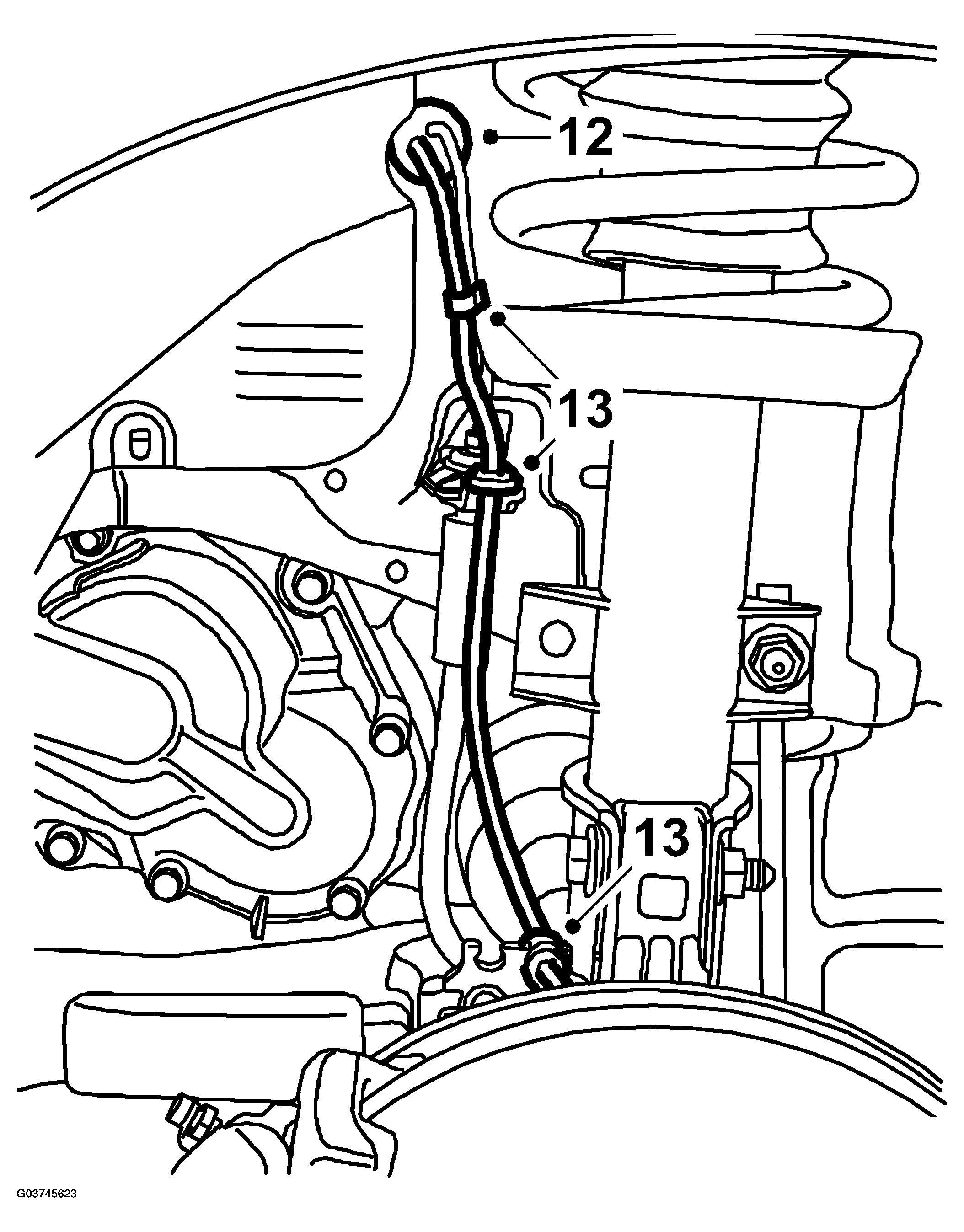

    Fig 4: Illustration For Step 12 And 13
    G03745623Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Detach the lead from the clips and lift out the sensor.
