Grounding point G41S: Notes

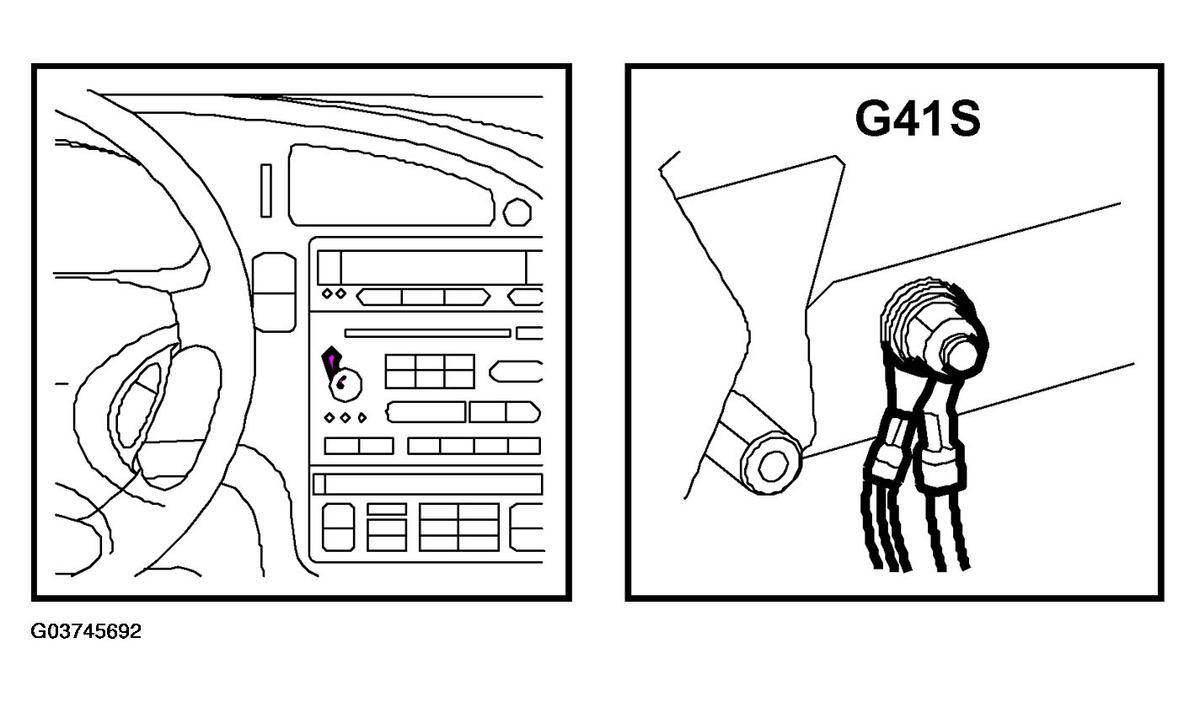

Fig 1: Identifying Grounding Point G41S
G03745692Courtesy of SAAB-SCANIA OF AMERICA, INC.

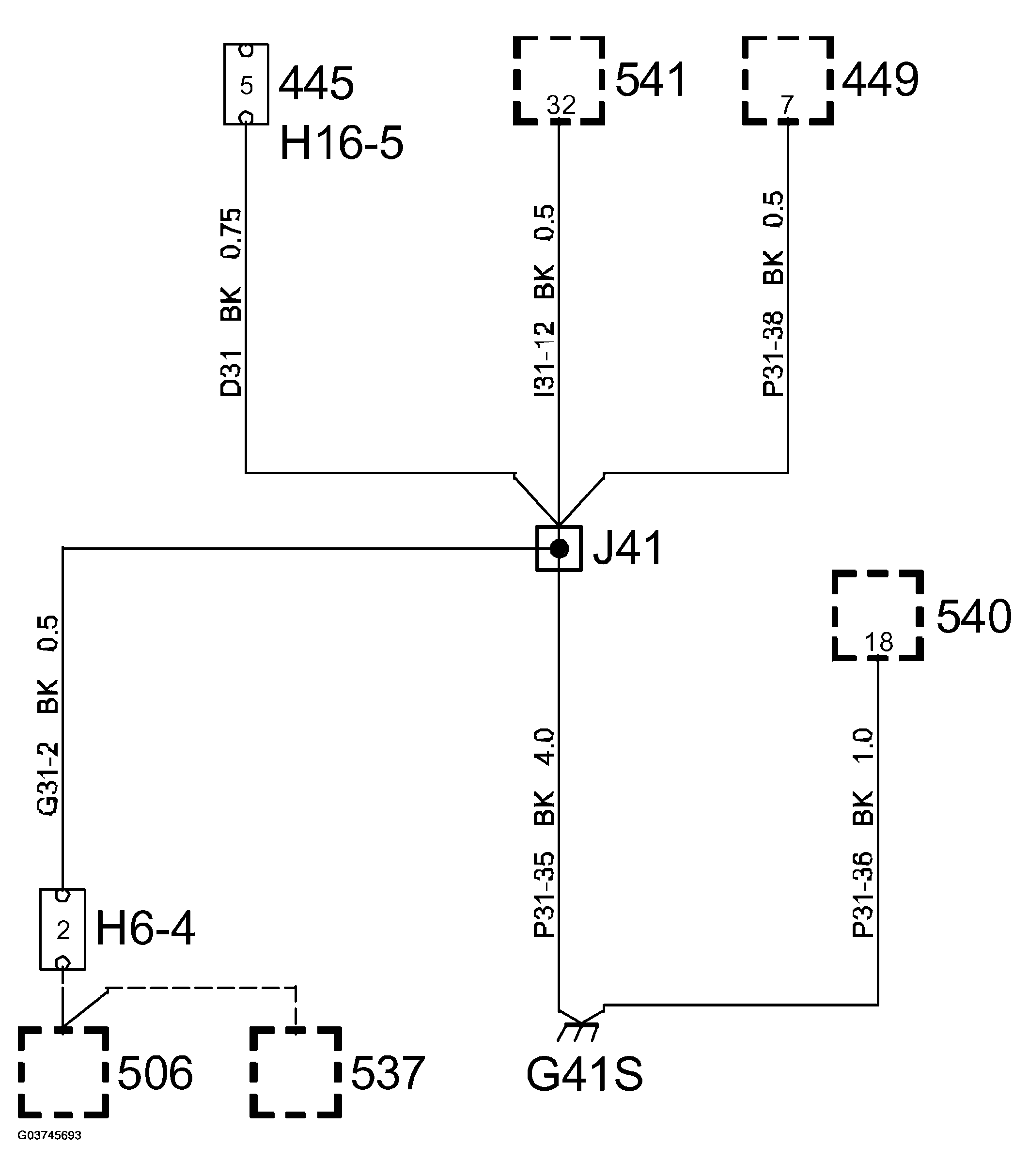

Fig 2: Identifying Grounding Point G41S Circuit Diagram
G03745693Courtesy of SAAB-SCANIA OF AMERICA, INC.
