Grounding point G42: Notes

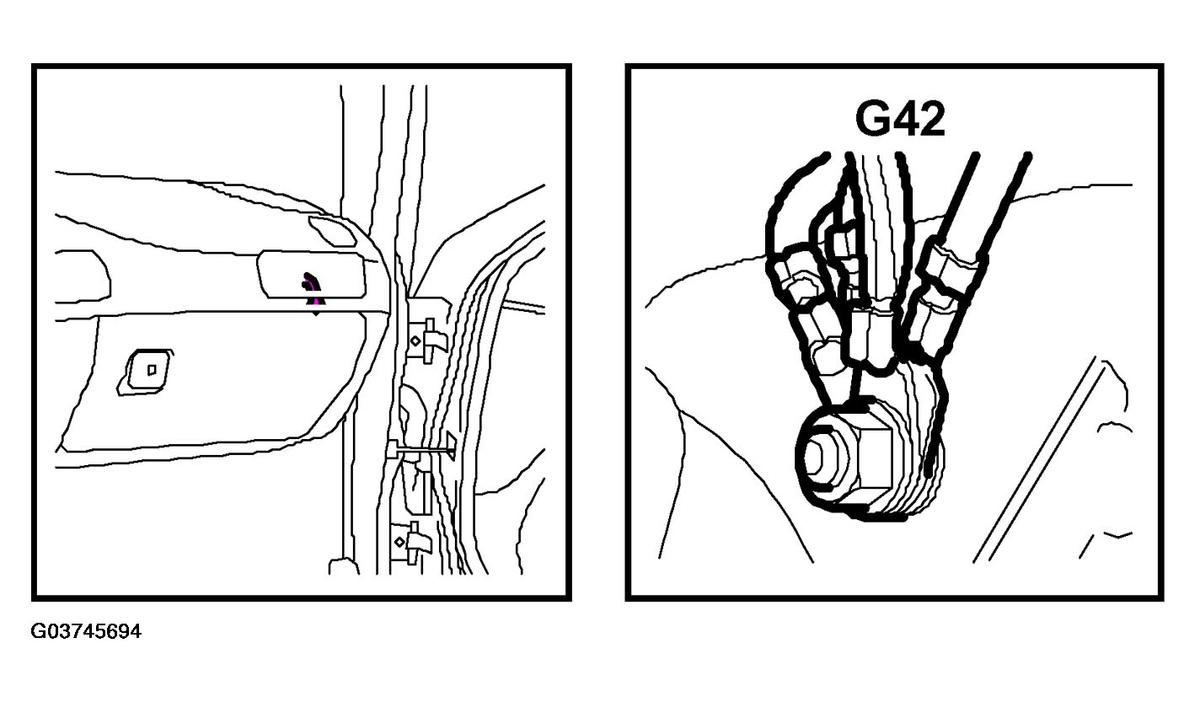

Fig 1: Identifying Grounding Point G42
G03745694Courtesy of SAAB-SCANIA OF AMERICA, INC.

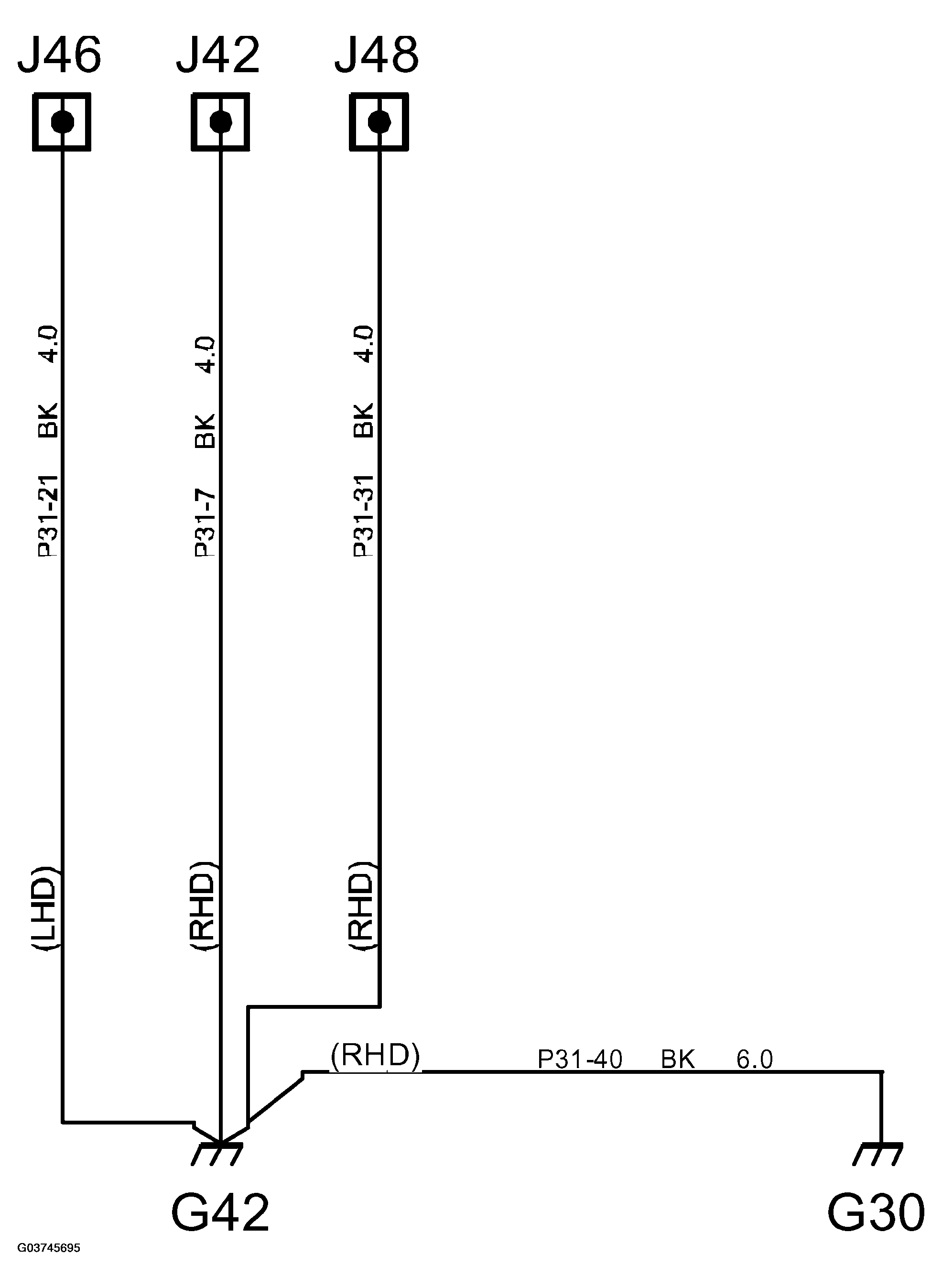

Fig 2: Identifying Grounding Point G42 Circuit Diagram
G03745695Courtesy of SAAB-SCANIA OF AMERICA, INC.
