Brake pressure sensor

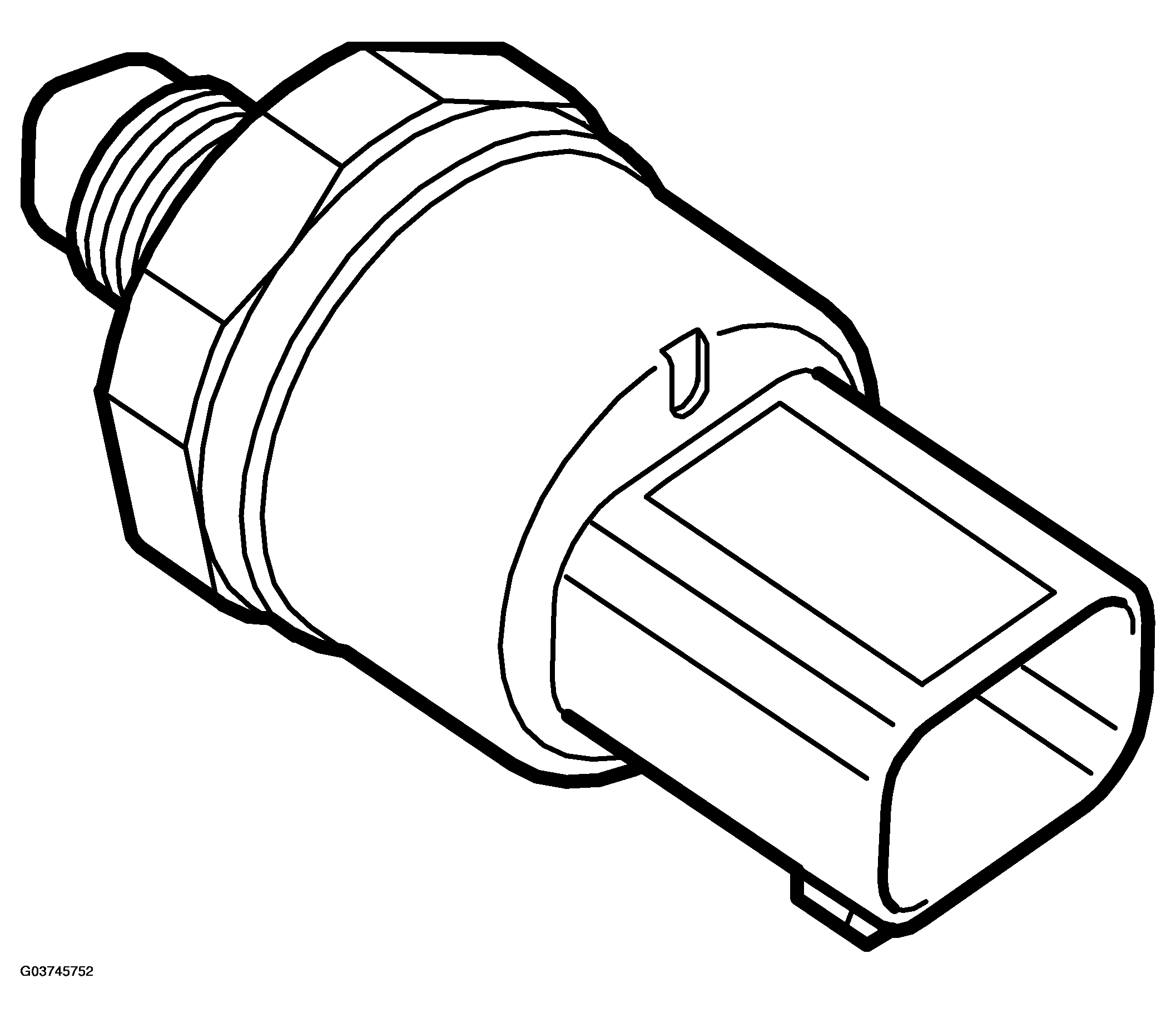

Fig 1: Identifying Brake Pressure Sensor
G03745752Courtesy of SAAB-SCANIA OF AMERICA, INC.
BRAKE PRESSURE SENSOR SPECIFICATION

Test range 0-250 bar
