Control module outputs, bus

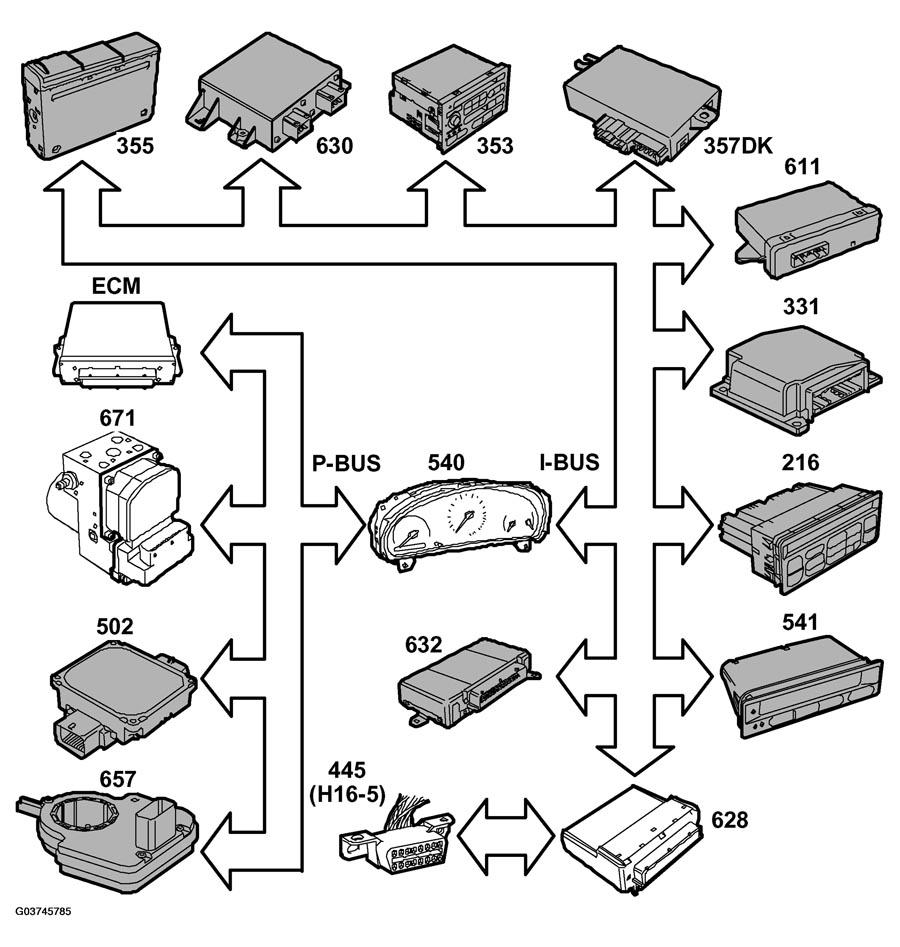

Fig 1: Communication Diagram Control Module Outputs, Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• TCS OFF/ESP OFF INDICATOR LAMP
• ABS warning lamp
• TCS/ESP indicator lamp
• Wheel speed out for all wheels
• ENGINE TORQUE REQUEST

See BUS AND DIAGNOSTICS COMMUNICATION , CONTROL MODULE CONNECTIONS .
