TC/Abs 5.3 - 9-5
>>
Technical description
>>
Control module inputs
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control module inputs

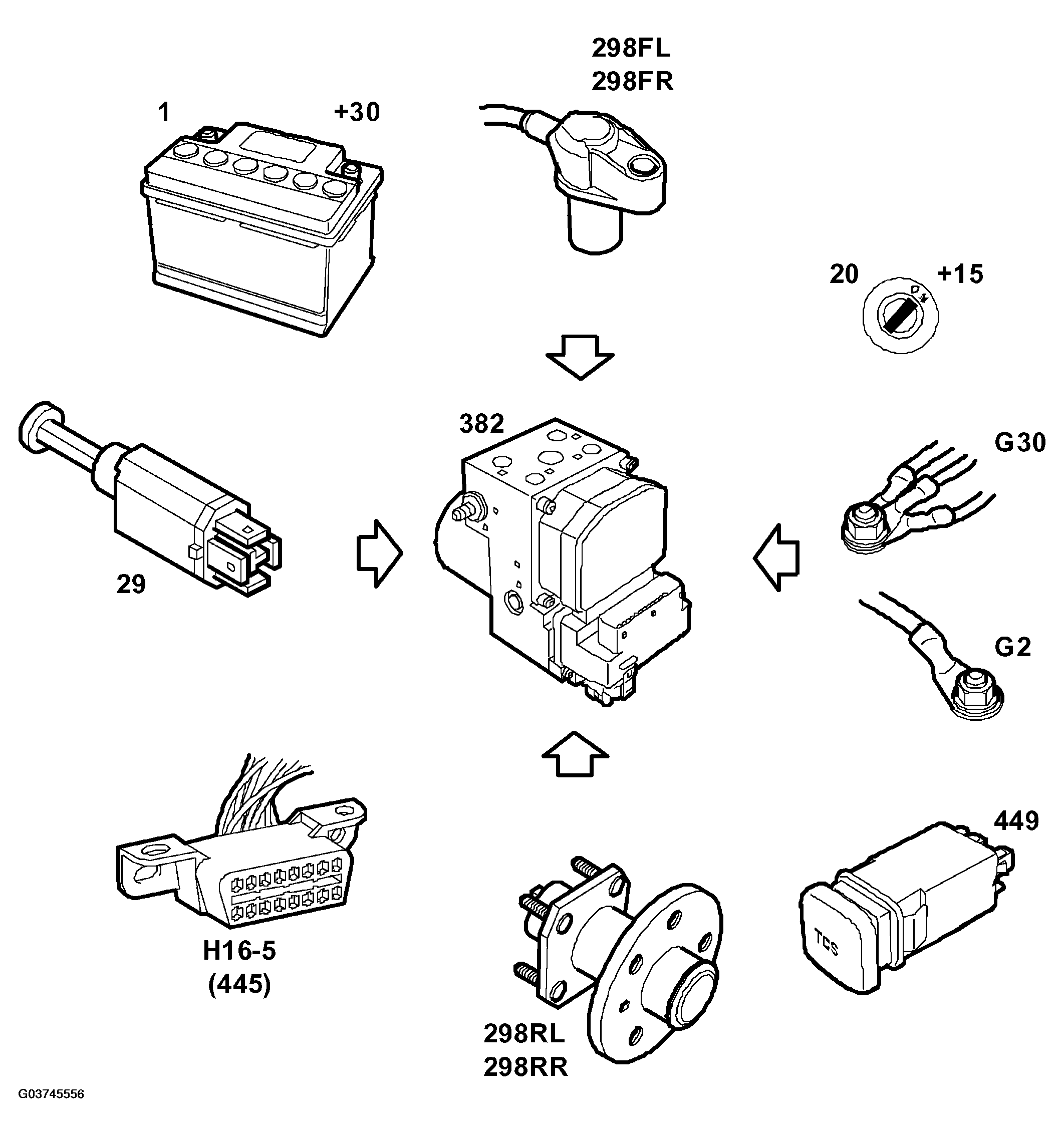

Fig 1: Identifying Control Module Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
CURRENT (+30 CIRCUIT) (1)
CURRENT (+15 CIRCUIT) (20)
Ground (
G30
,
G2
).
FRONT-WHEEL SENSORS (298)
REAR-WHEEL SENSORS (298)
BRAKE LIGHT SWITCH (29)
DIAGNOSTICS COMMUNICATION (445)
SWITCH, TCS (449)
