Grounding point, G31: Notes

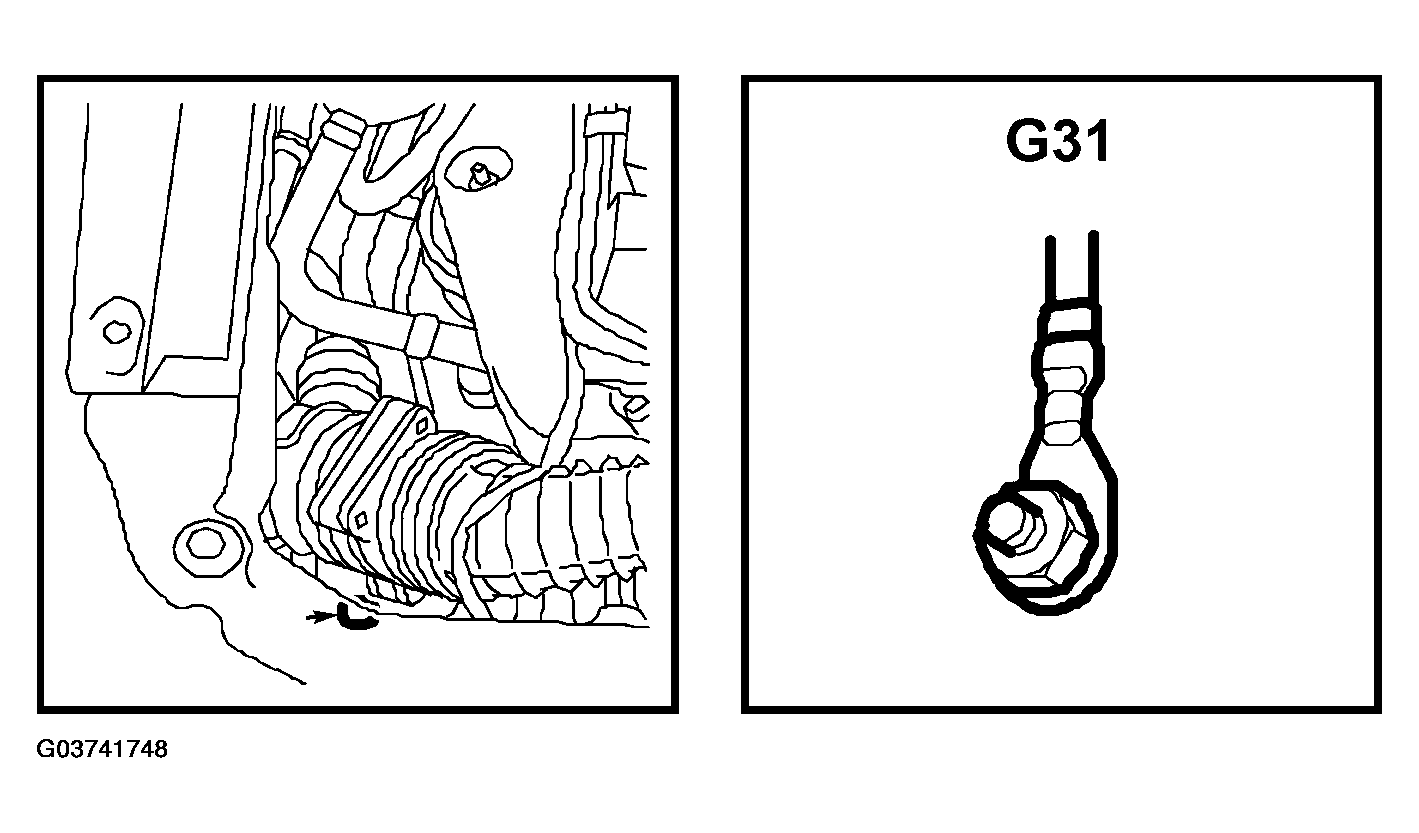

Fig 1: Identifying Grounding Point, G31
G03741748Courtesy of SAAB-SCANIA OF AMERICA, INC.

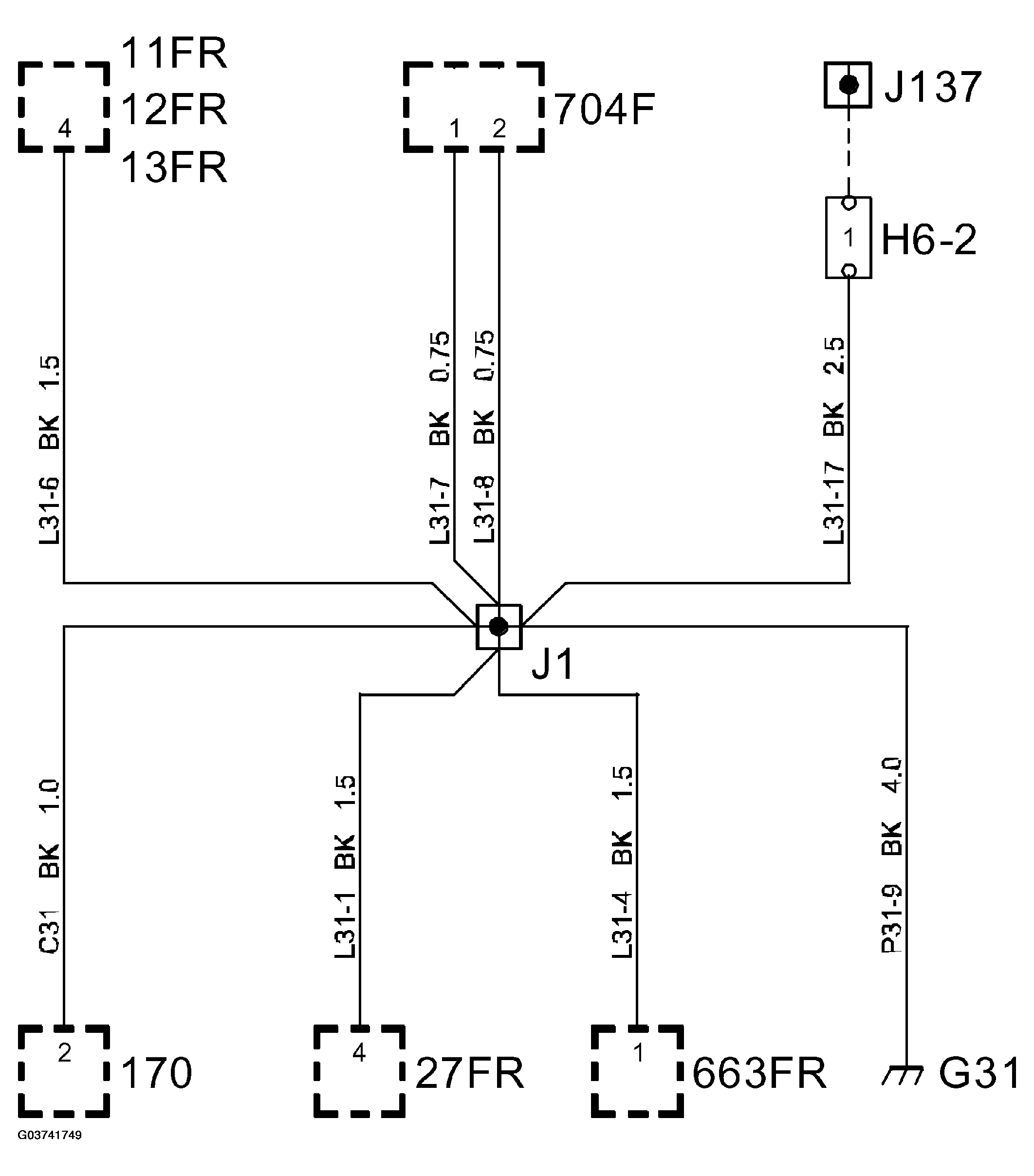

Fig 2: Wiring Diagram - Grounding Point, G31
G03741749Courtesy of SAAB-SCANIA OF AMERICA, INC.
