To fit

  1. Spray the connectors in the relay holder with Kontakt 61 (part no. 30 04 520) and fit the relay.

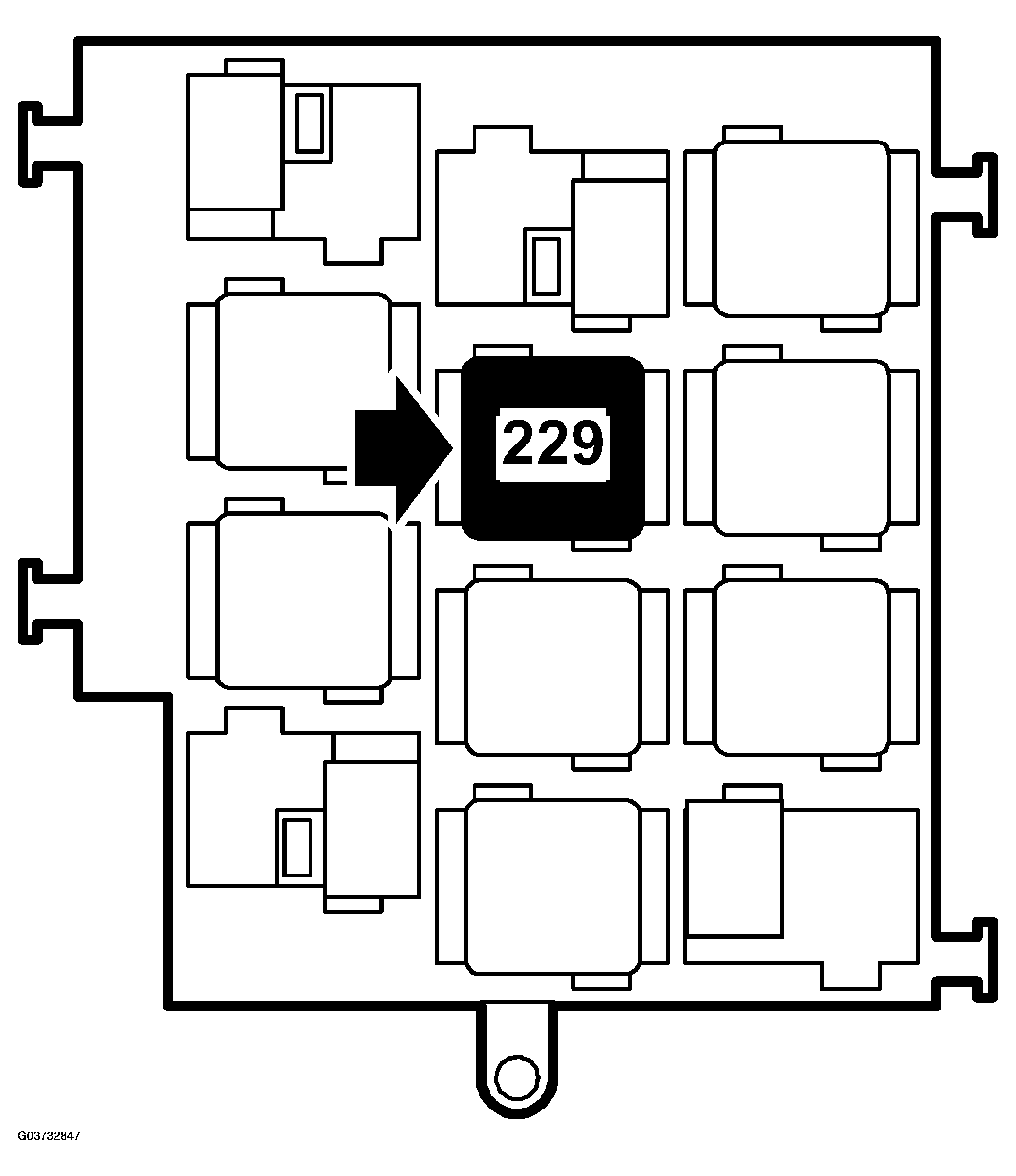

    Fig 1: Fitting Relay
    G03732847Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Tilt up the relay holder so that the cover closes.

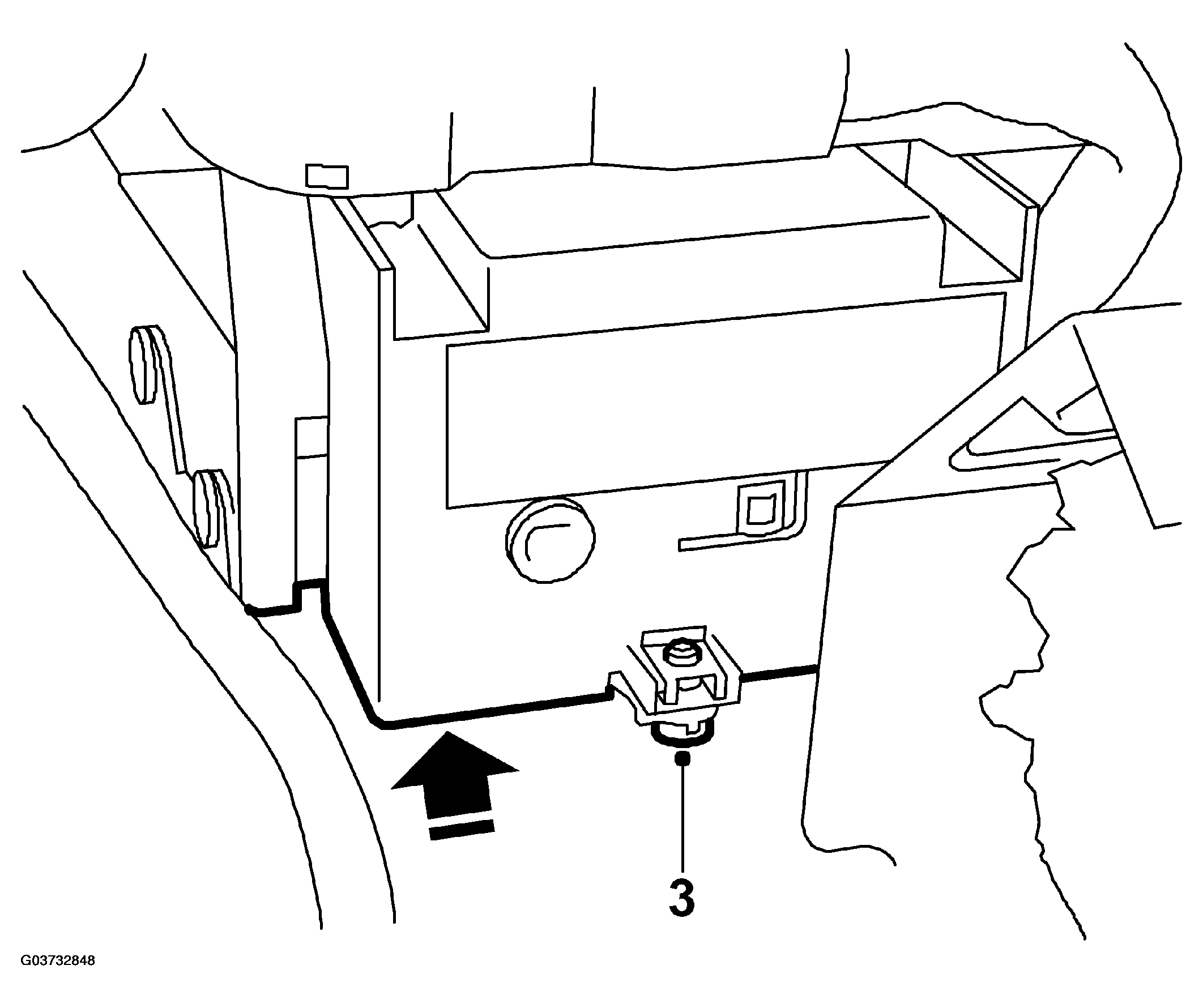

    Fig 2: Illustration For Step 3
    G03732848Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Tighten the screw on the relay box.
  4. Replace the cables to the diagnostic tool data link connector and the lighting. Position the pedal bracket cover and tighten the 3 screws and the clip.

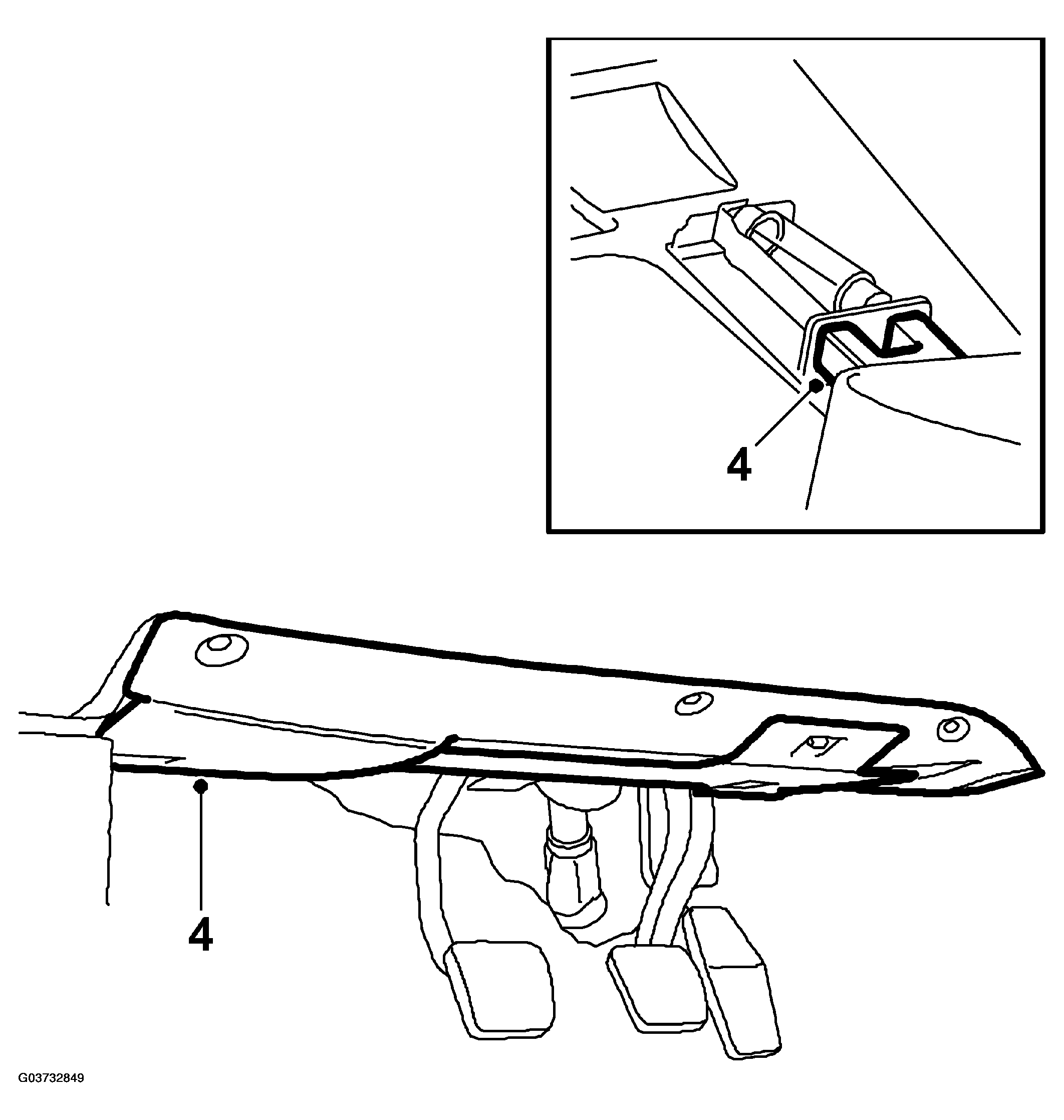

    Fig 3: Illustration For Step 4
    G03732849Courtesy of SAAB-SCANIA OF AMERICA, INC.
