DTC P1576: Brake Light Switch Circuit Open/Short To B+: Notes

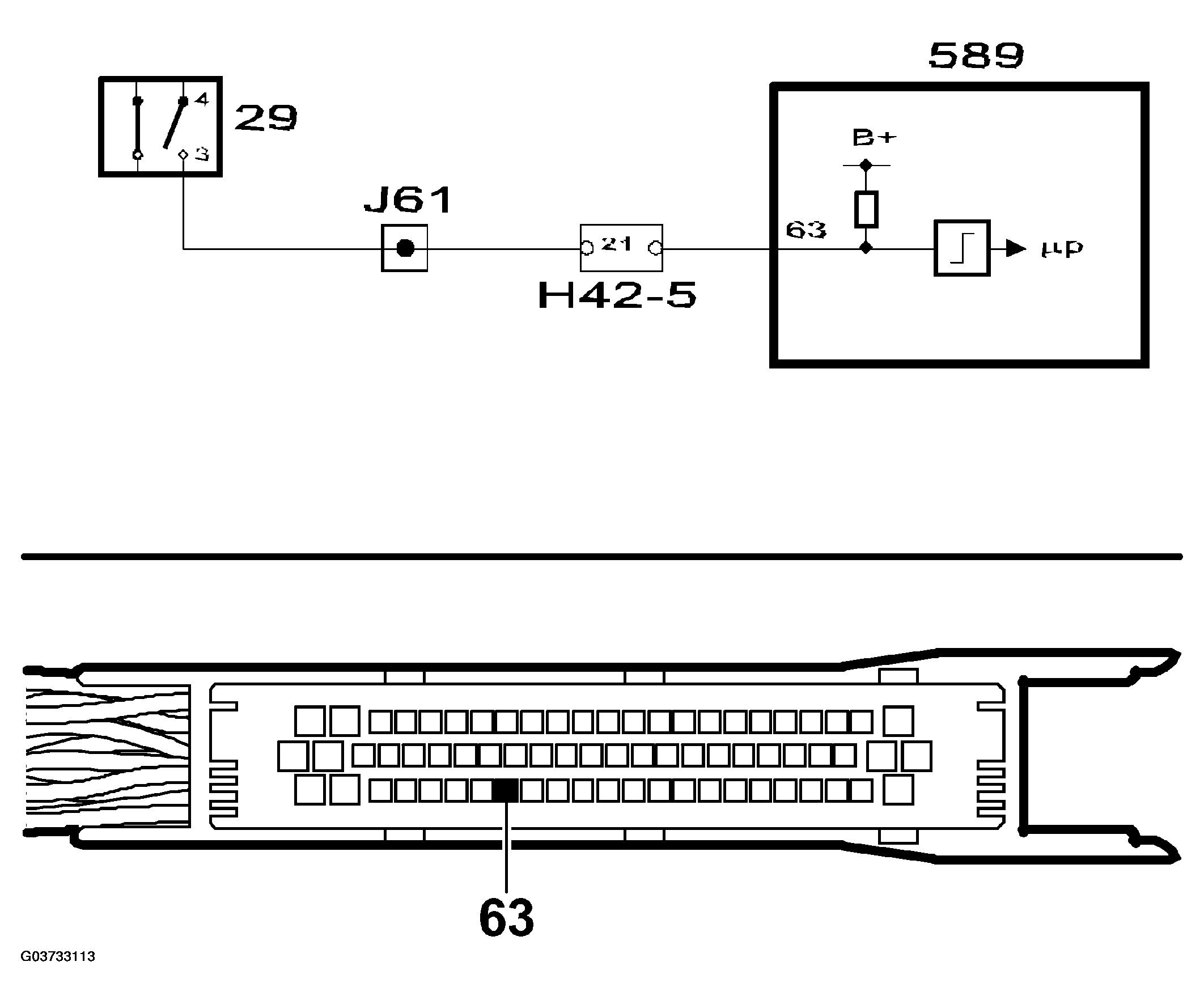

Fig 1: P1576 Brake Light Switch Circuit Diagram
G03733113Courtesy of SAAB-SCANIA OF AMERICA, INC.
