Main relay (229)

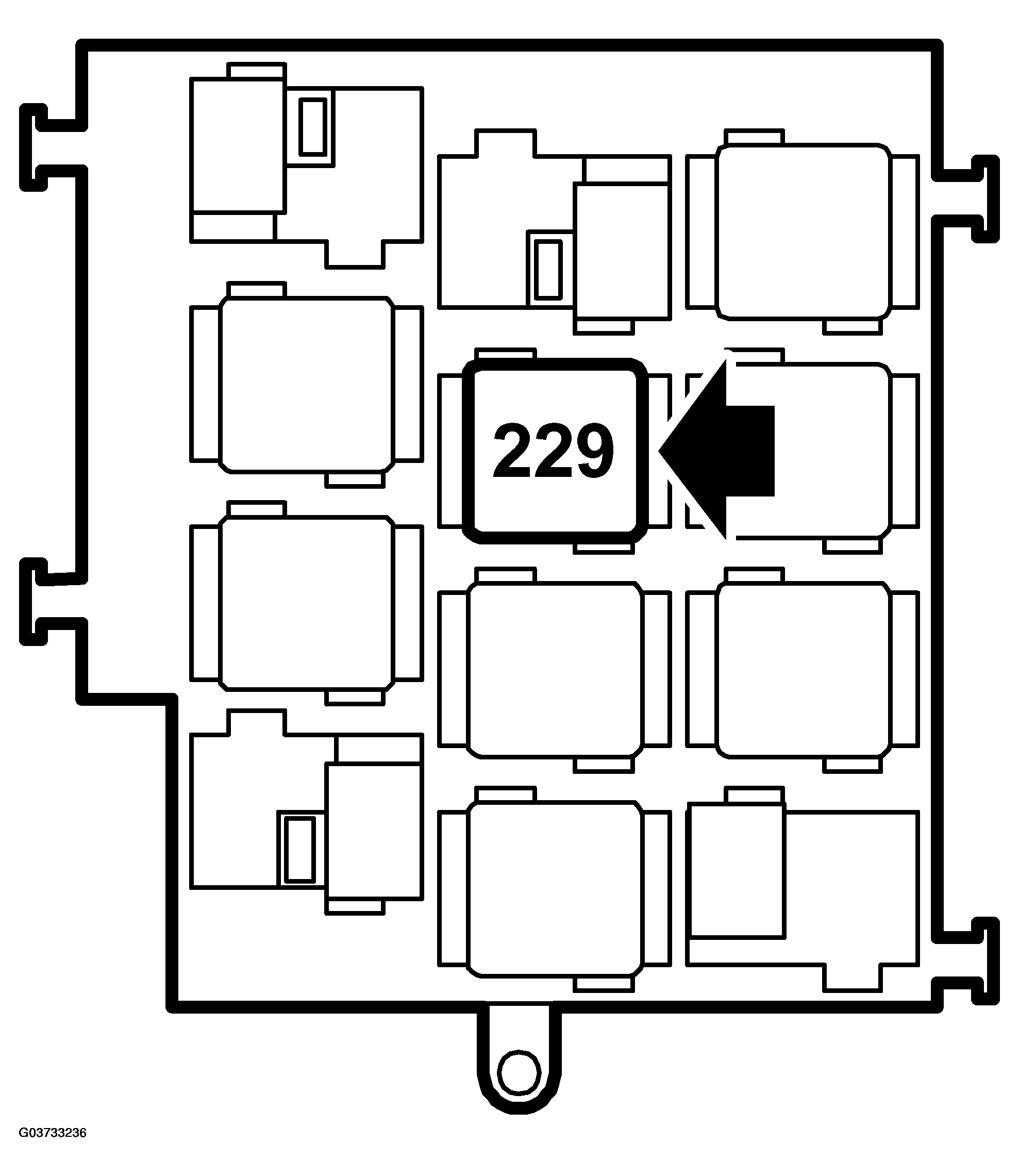

Fig 1: Identifying Main Relay (229)
G03733236Courtesy of SAAB-SCANIA OF AMERICA, INC.
MAIN RELAY DESCRIPTION

Location   On main relay board in dashboard
Resistance, coil at 20°C (68°F) Ohm 85+/-5
Nominal control voltage V 12
Rated current A 30
