Slave cylinder

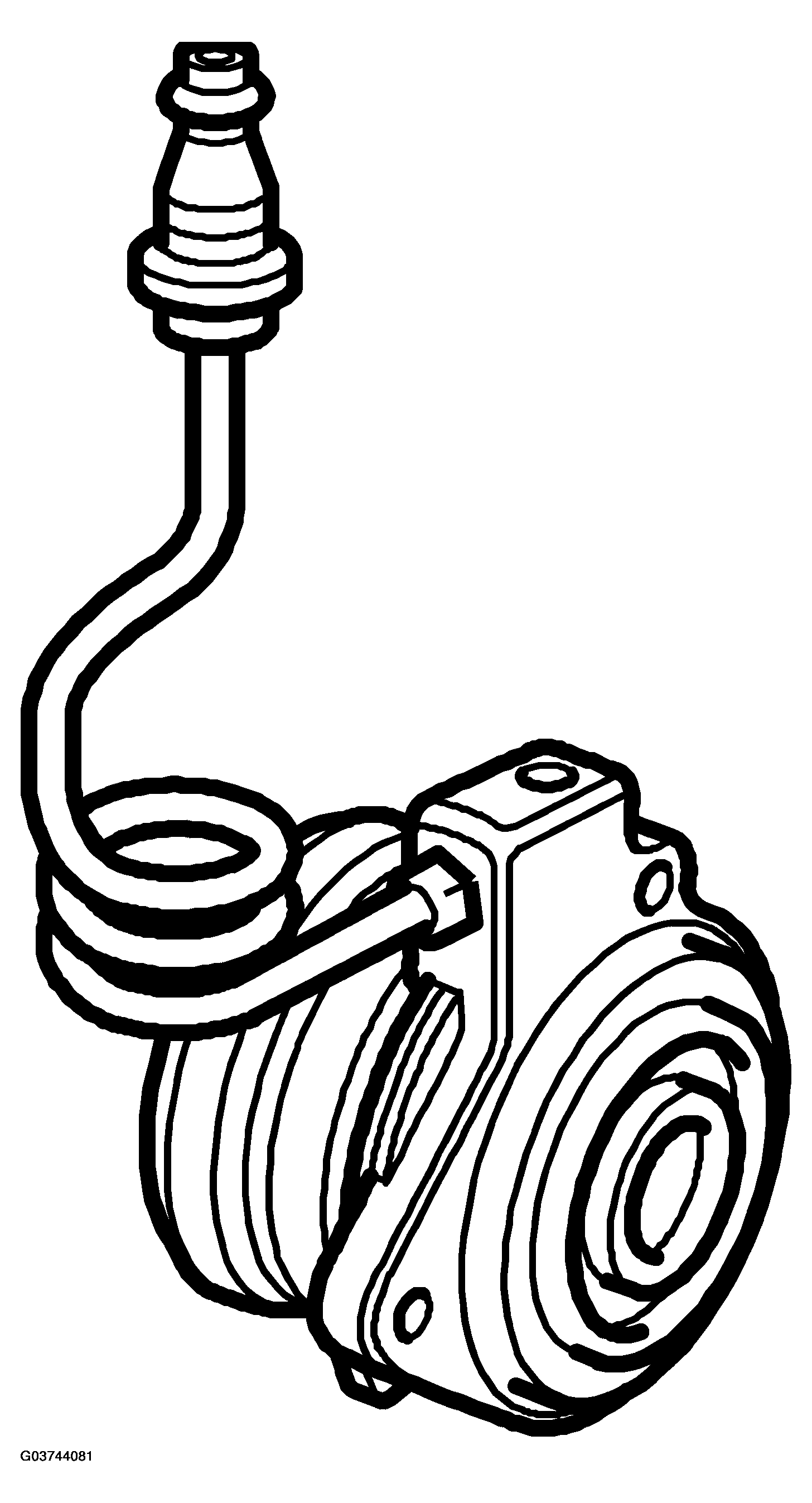

Fig 1: Identifying Slave Cylinder
G03744081Courtesy of SAAB-SCANIA OF AMERICA, INC.
SLAVE CYLINDER TECHNICAL DATA

Type CSC (Concentric slave cylinder)
Effective area 58515 sq mm
Stroke 80.5 mm
