Component View

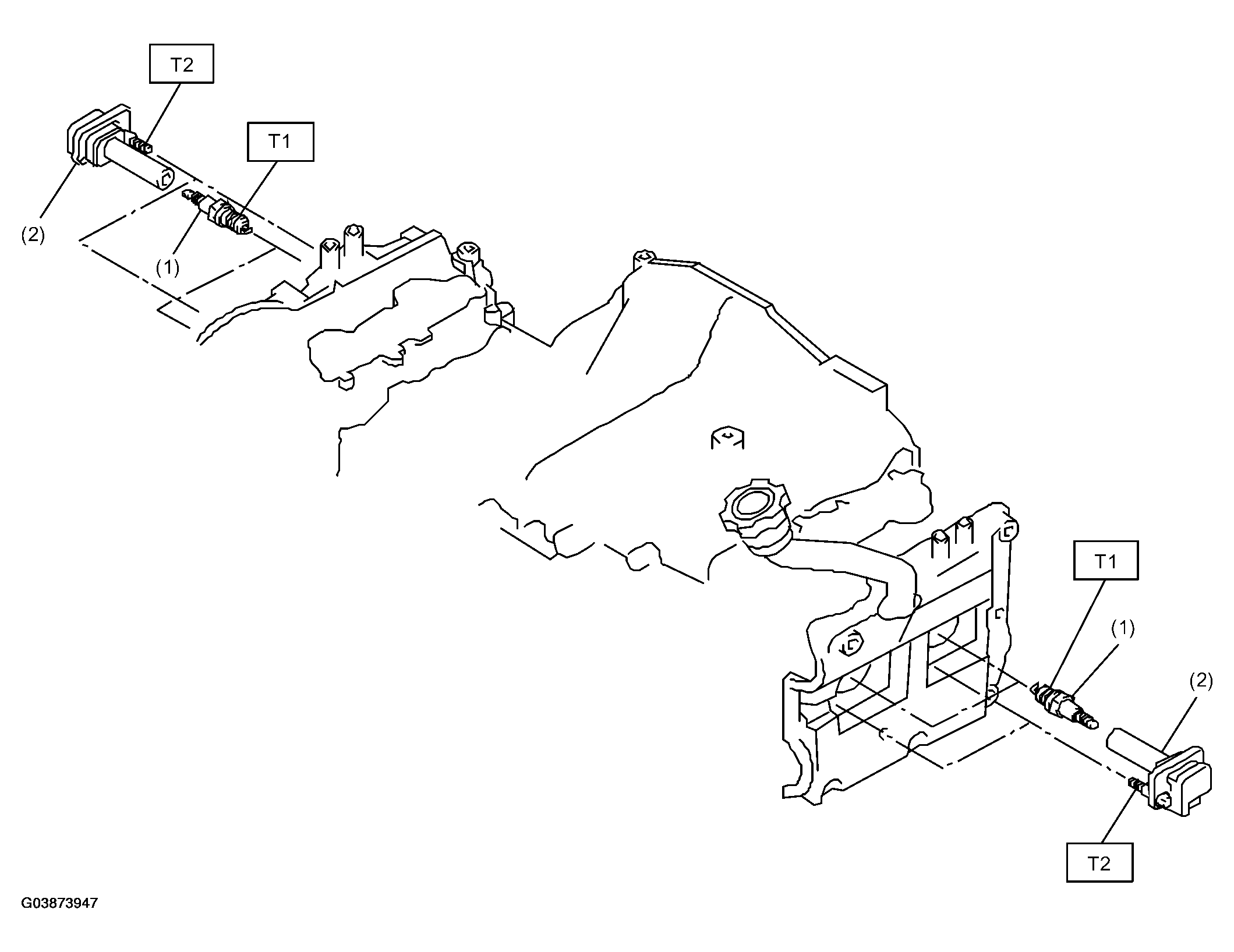

Fig 1: Identifying Ignition Components - 2.0L Turbo
G03873947Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spark plug
  2. Ignition coil and ignitor assembly

    Tightening torque: Nm (kgfm, ft-lb)

    T1: 21 (2.1, 15.2)

    T2: 16 (1.6, 11.7)
