Evaporator Temperature Sensor / Switch: Testing and Inspection
Evaporator Sensor
Wiring Diagram:

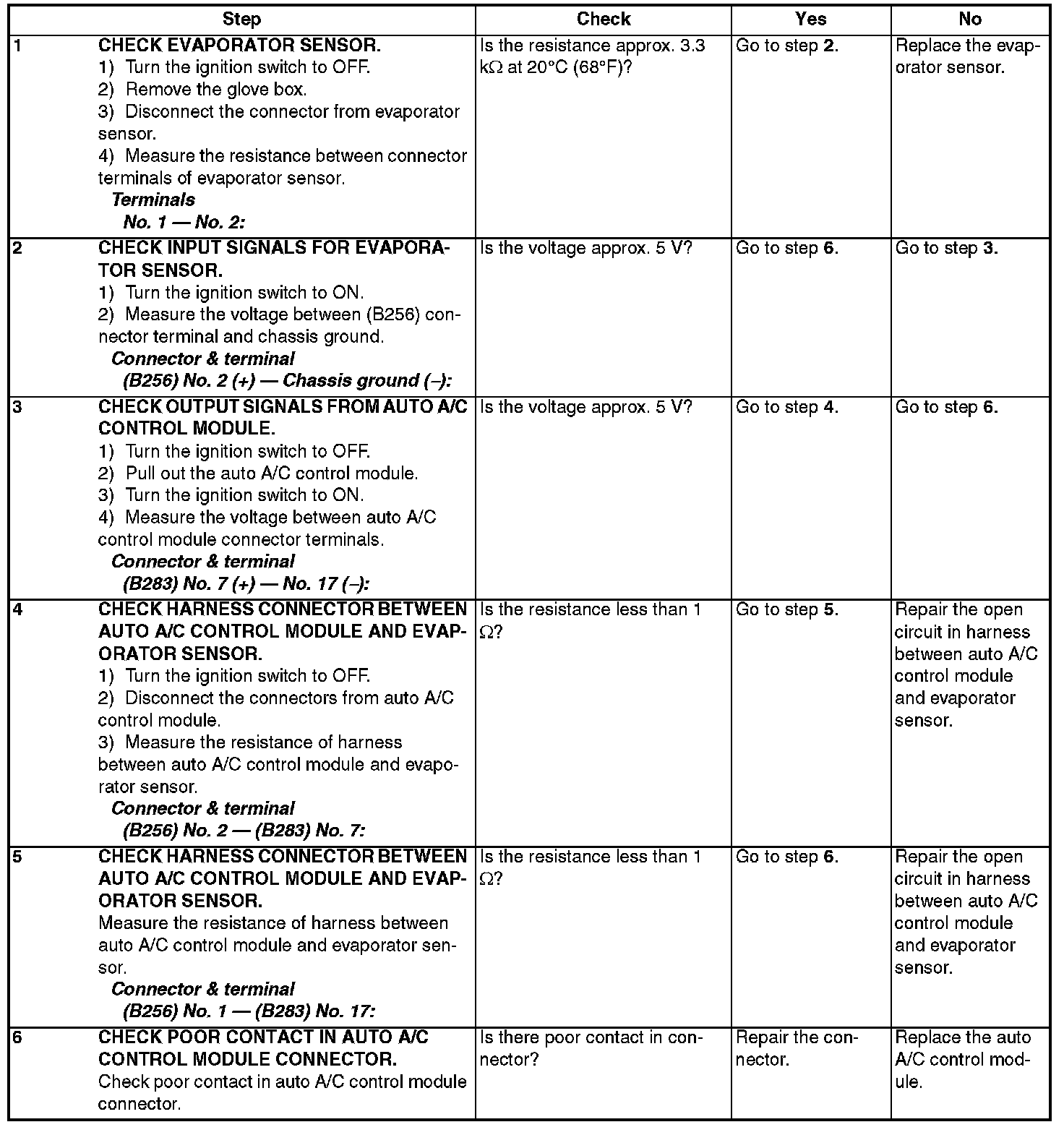

Step 1 - 6:
