Computers and Control Systems: Locations

ENGINE

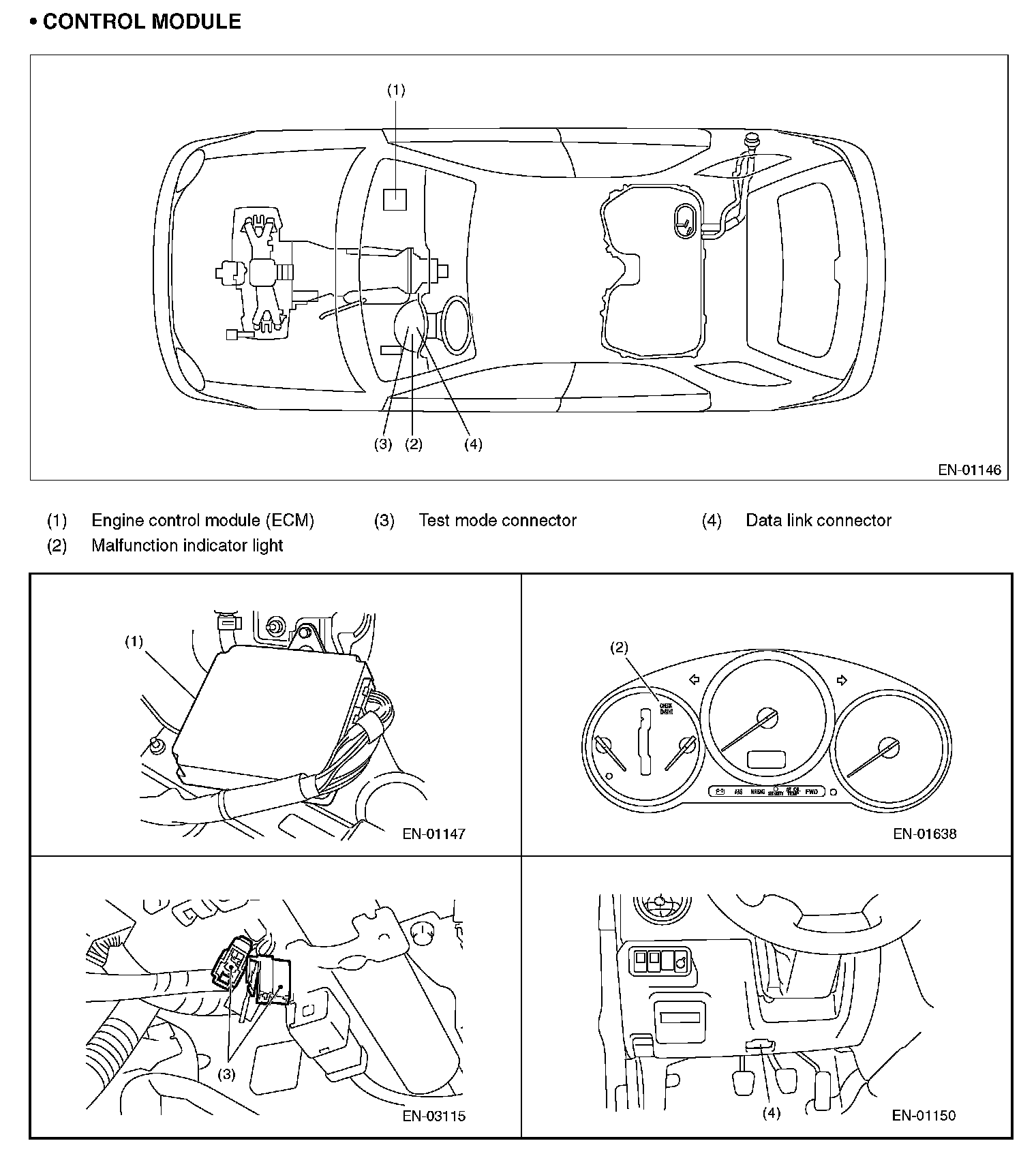

CONTROL MODULE

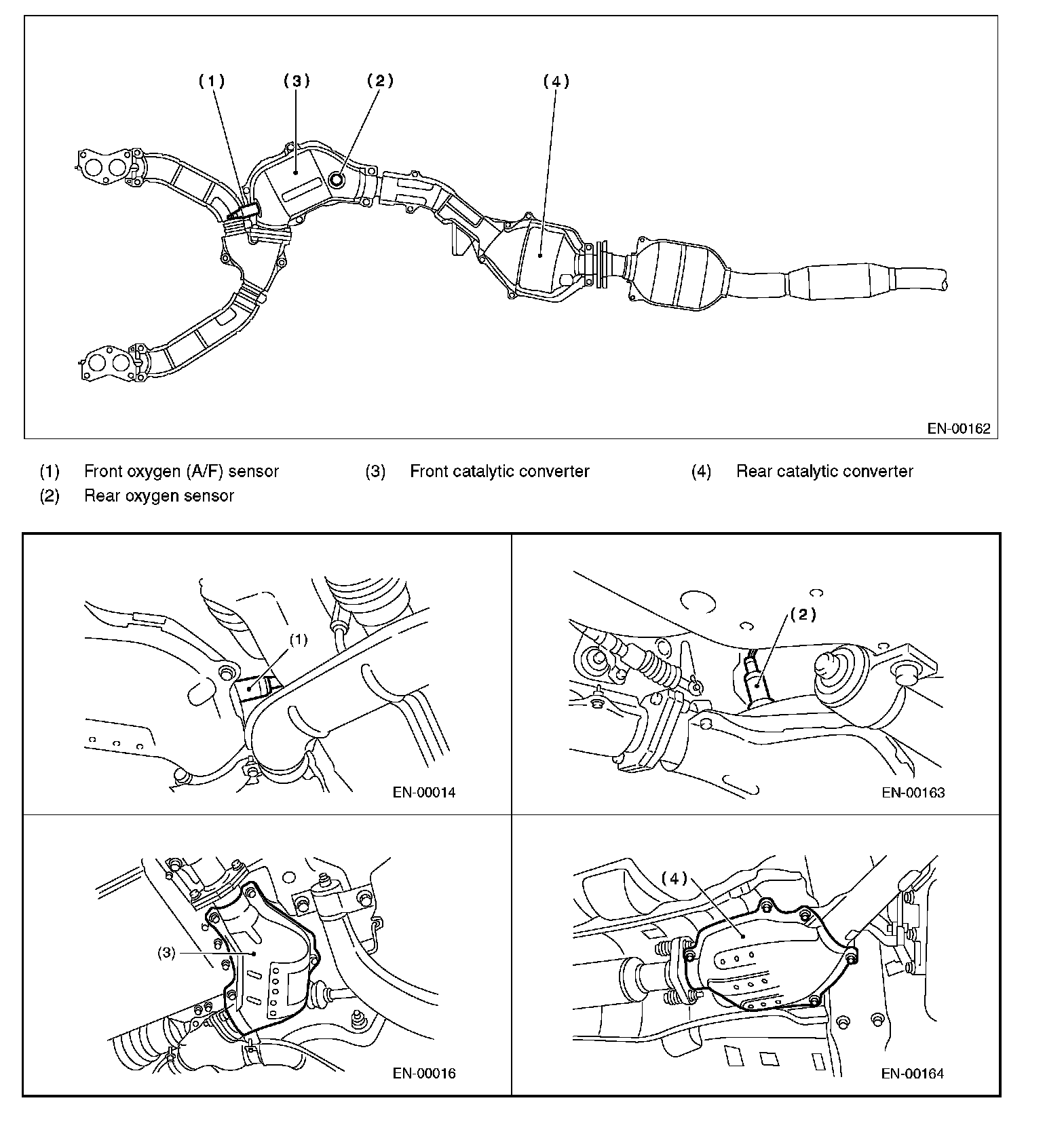

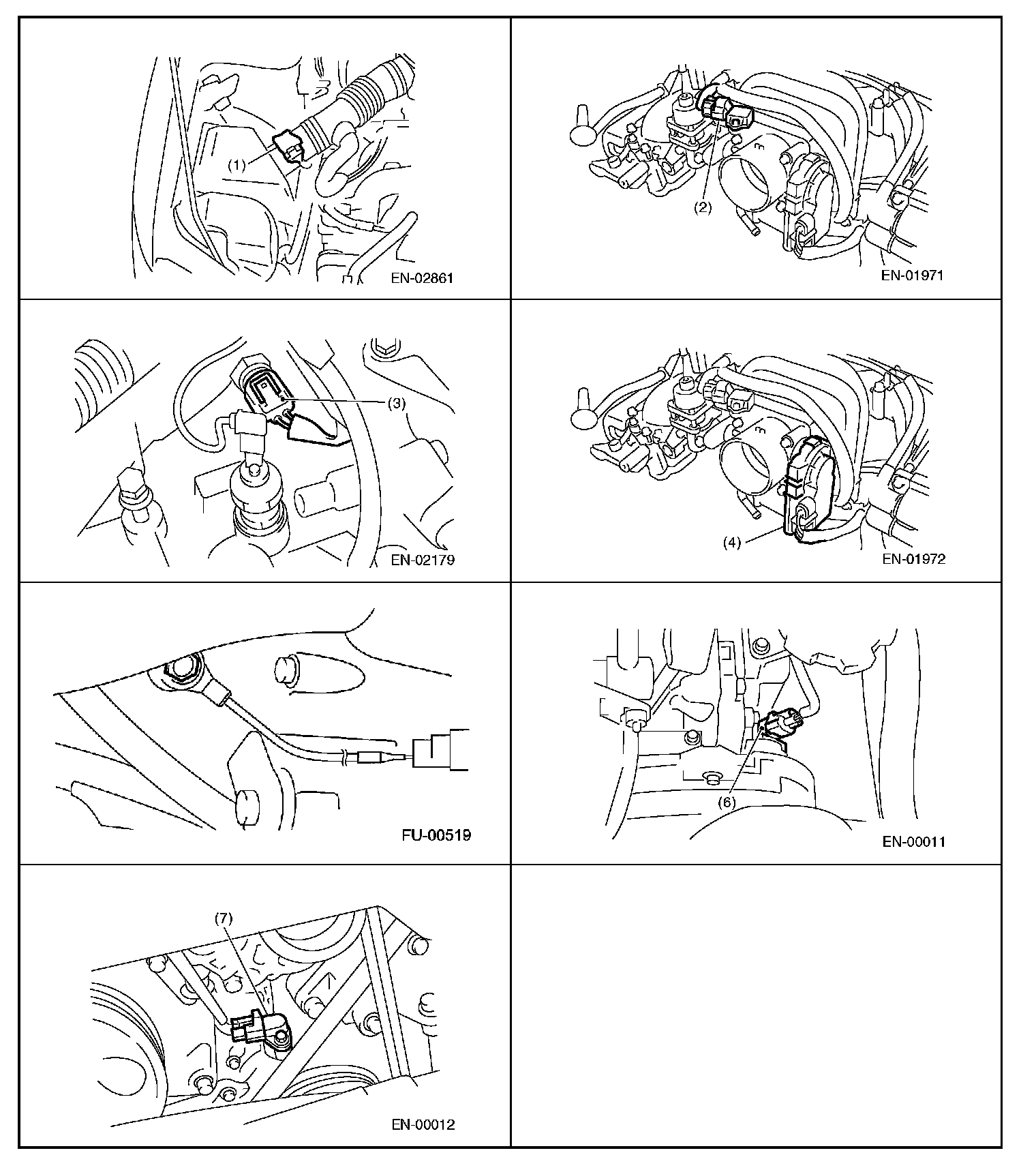

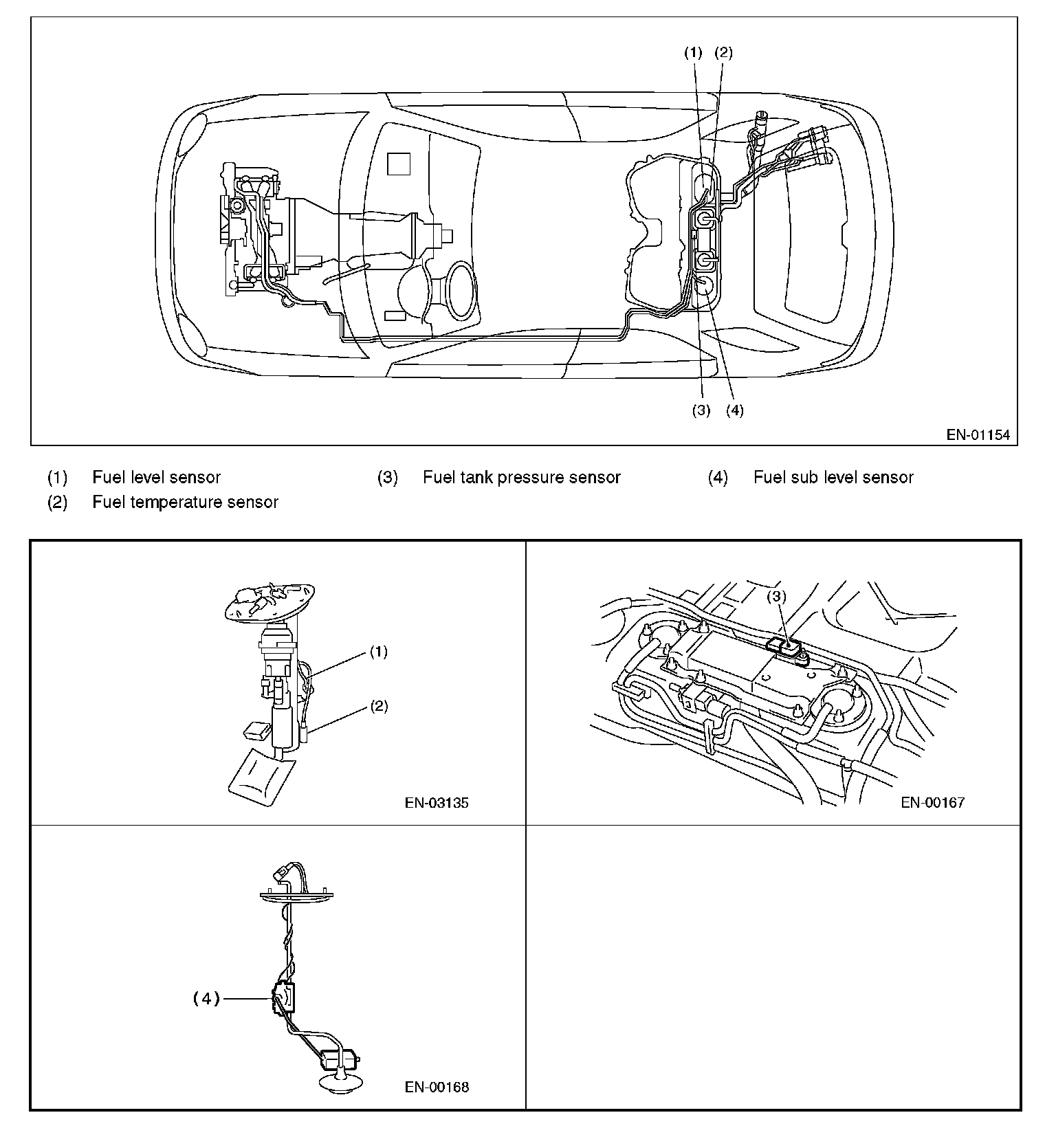

SENSOR

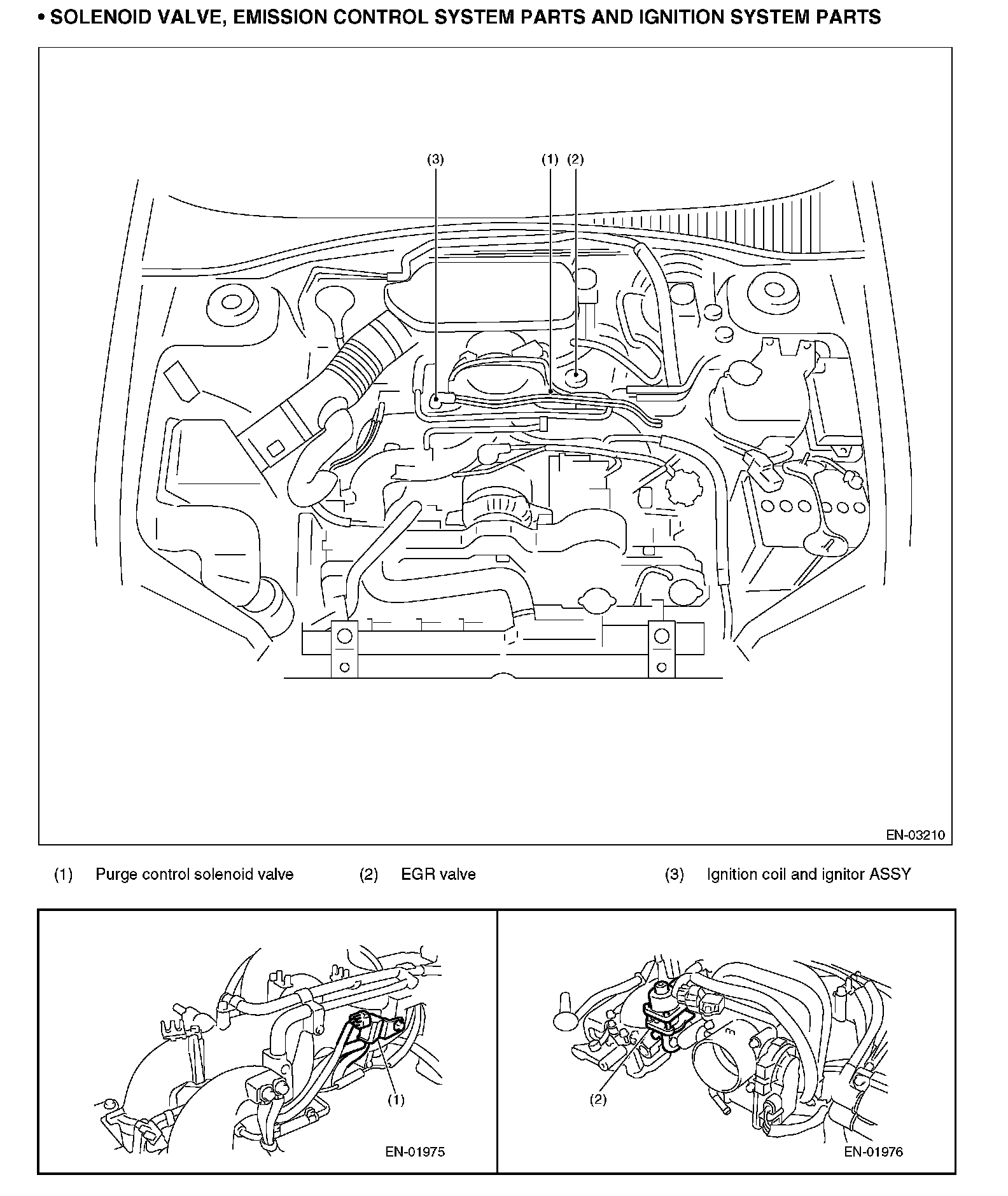

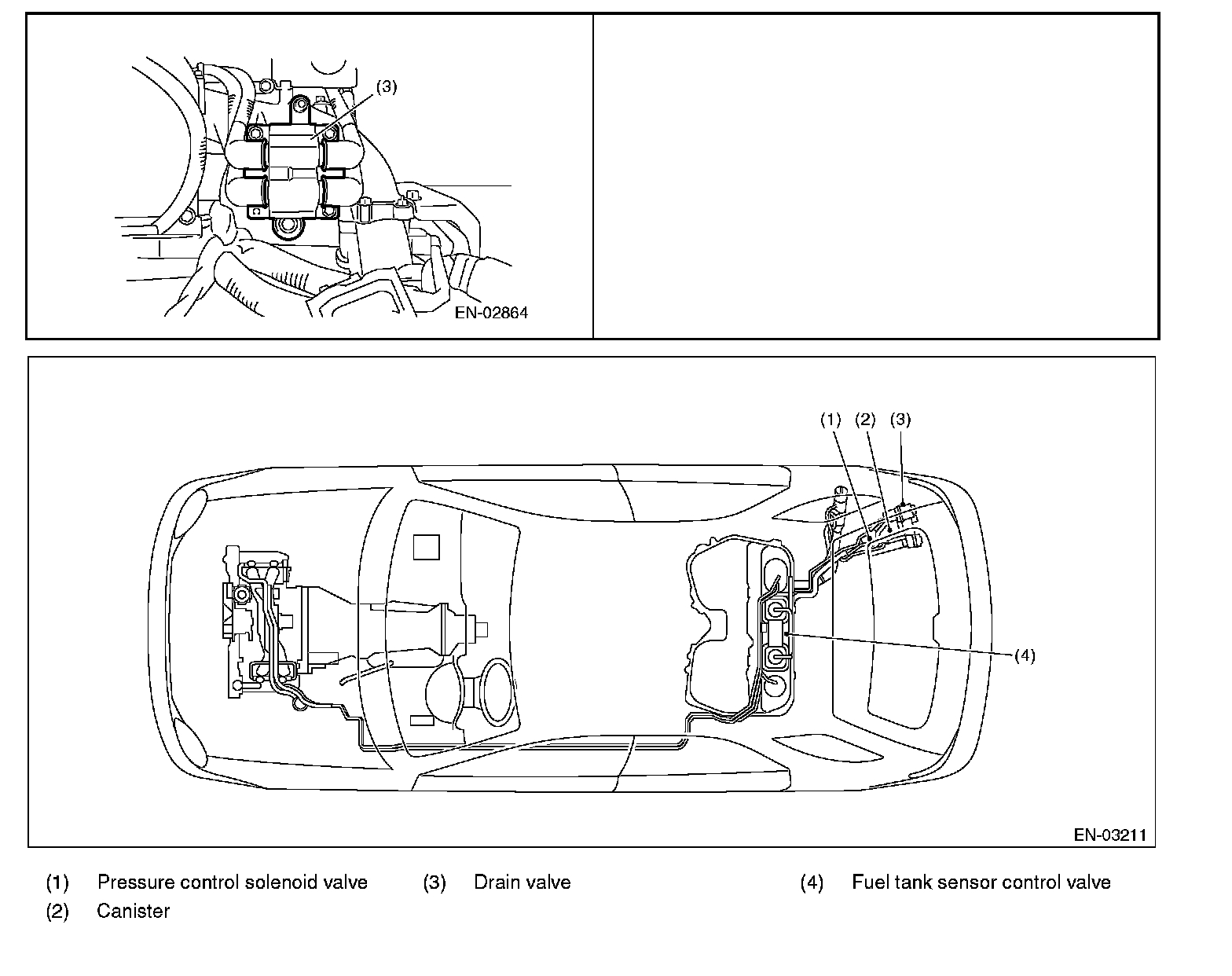

SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
