Component Tests and General Diagnostics

INSPECTION

MAIN SWITCH

Remove the main switch.
Turn the window lock switch to UNLOCK.

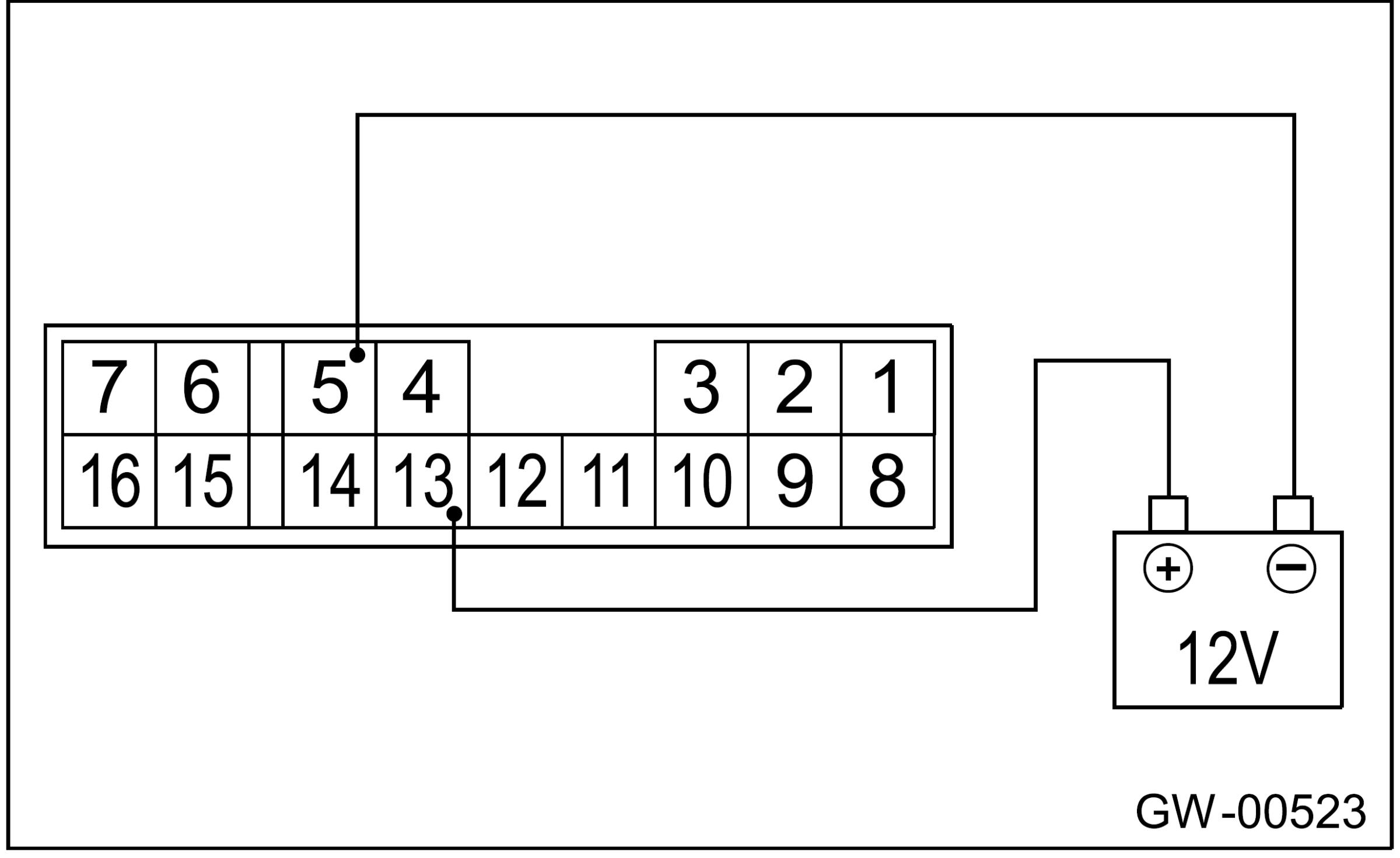

Connect the battery and main switch as shown in the figure below.

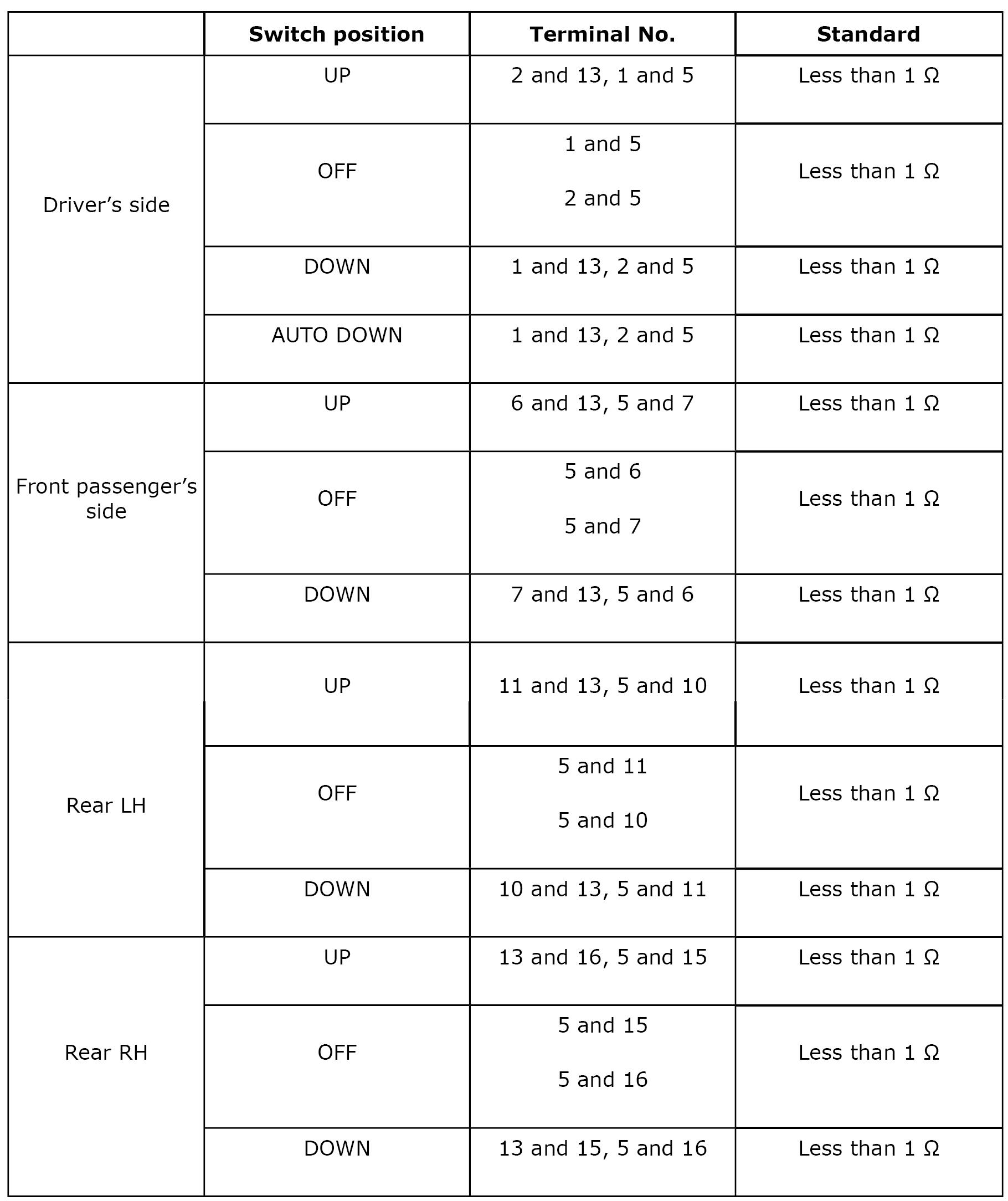

Measure the main switch resistance.







If NG, replace the main switch.

SUB SWITCH

Remove the sub switch.

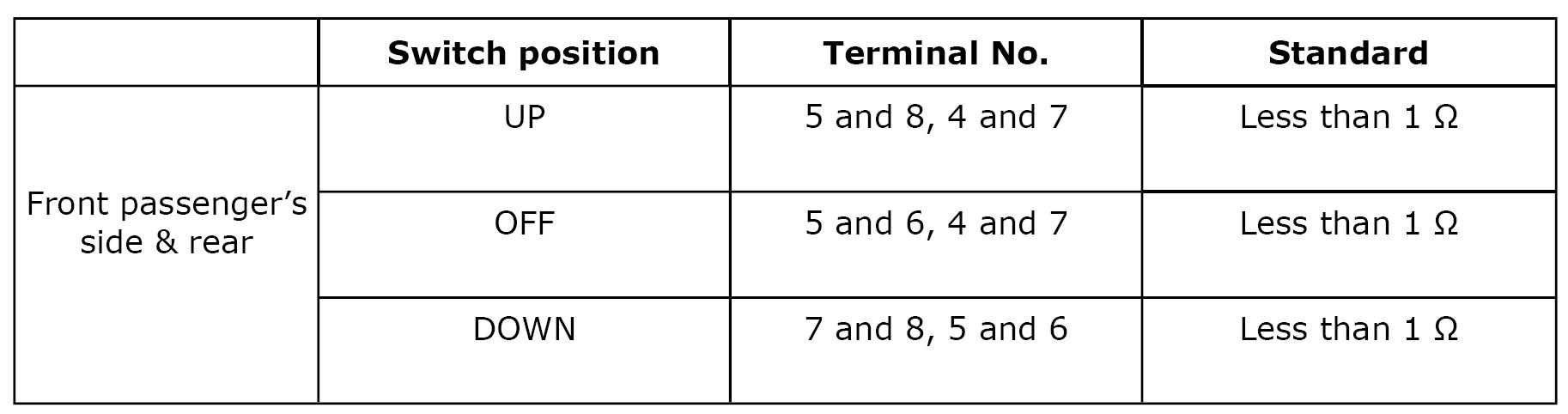

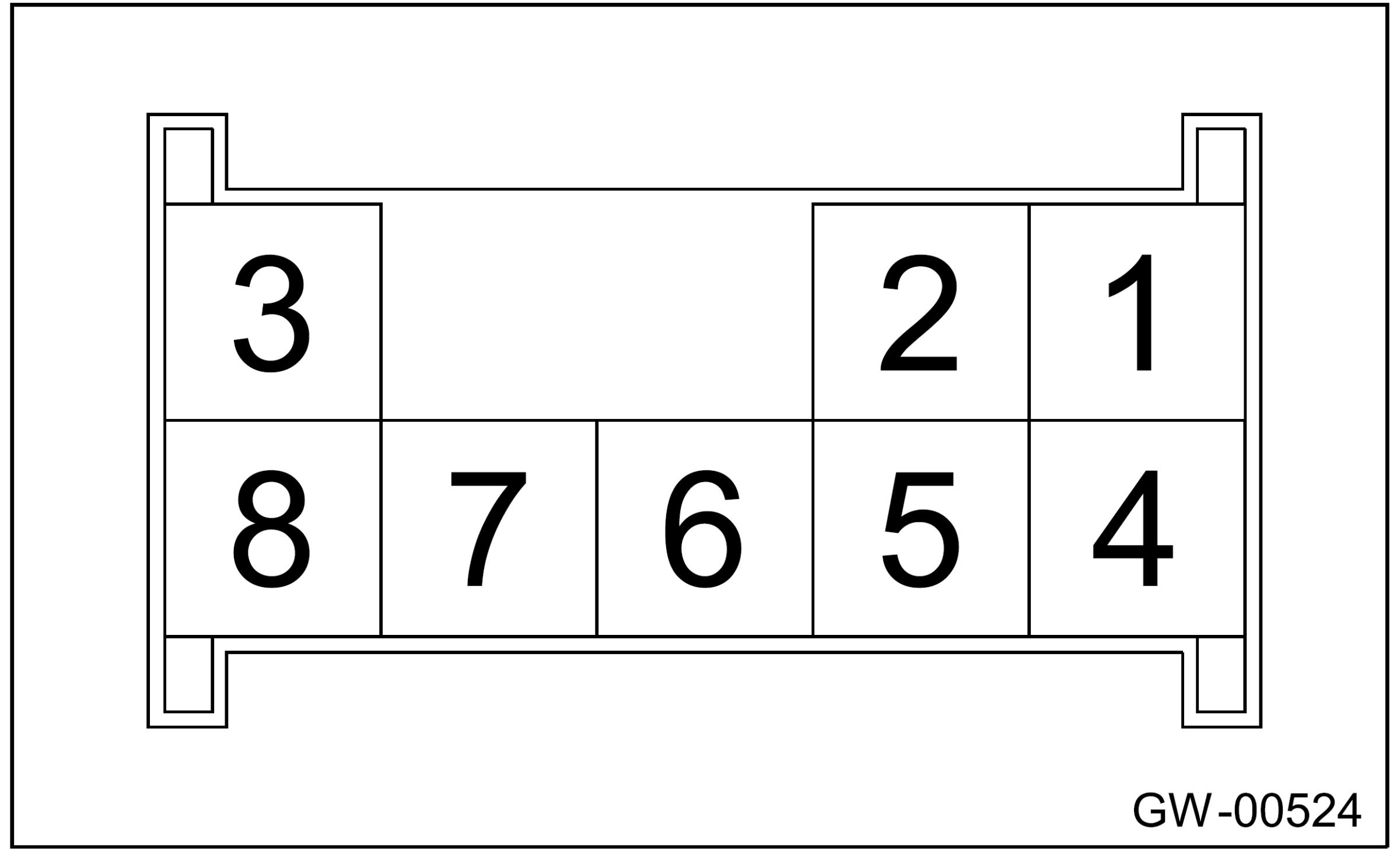

Measure the sub switch resistance.










If NG, replace the sub switch.
