Adjustment - Replacement: Generator: Installation
Install in the reverse order of removal.
Tightening torque:
25 Nm (2.5 kgf-m, 18.1 ft -lb)
IMPORTANT:
Check and adjust the V-belt tension.

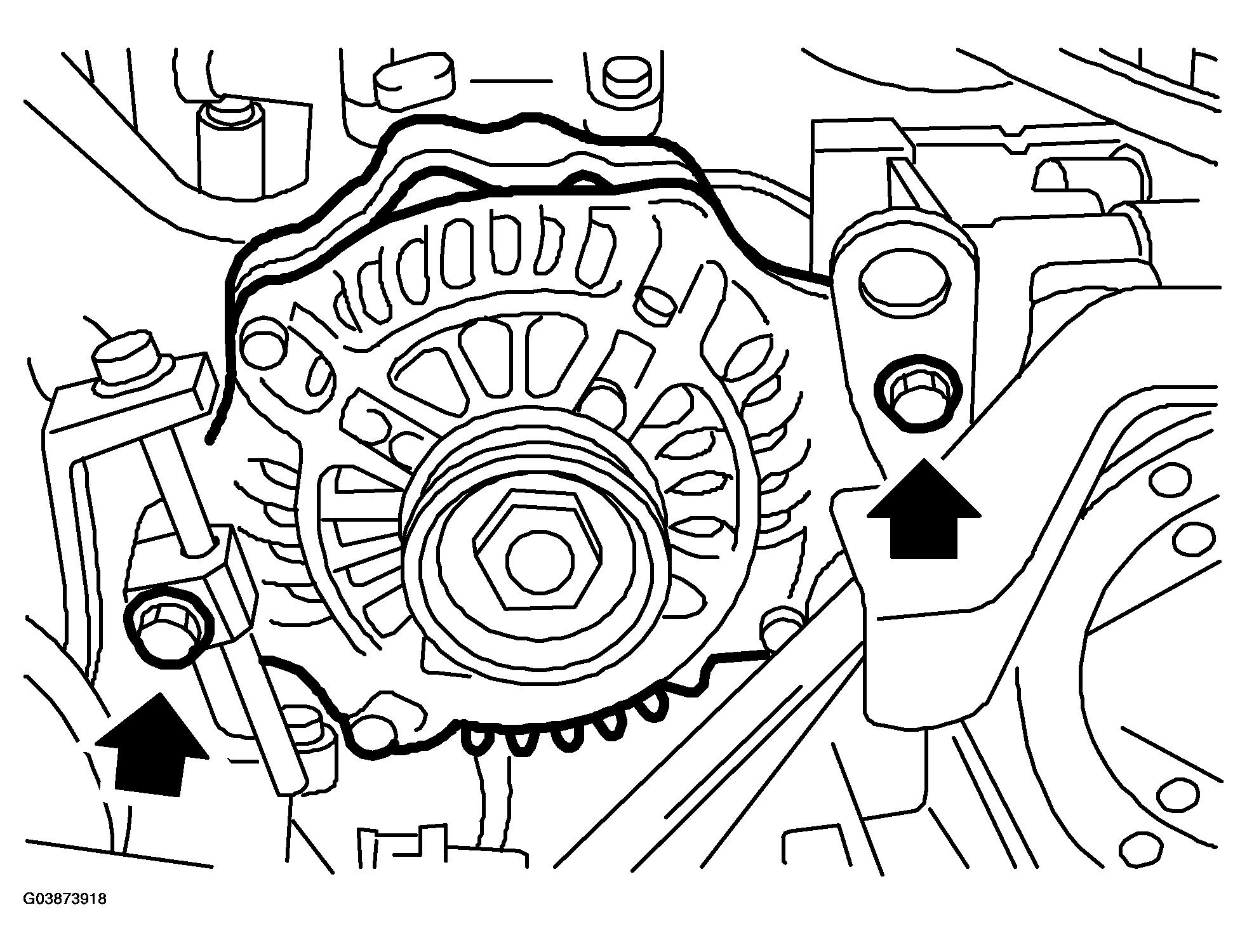

Fig 1: Installing Generator Bracket Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
