Reduction Gear With MPT

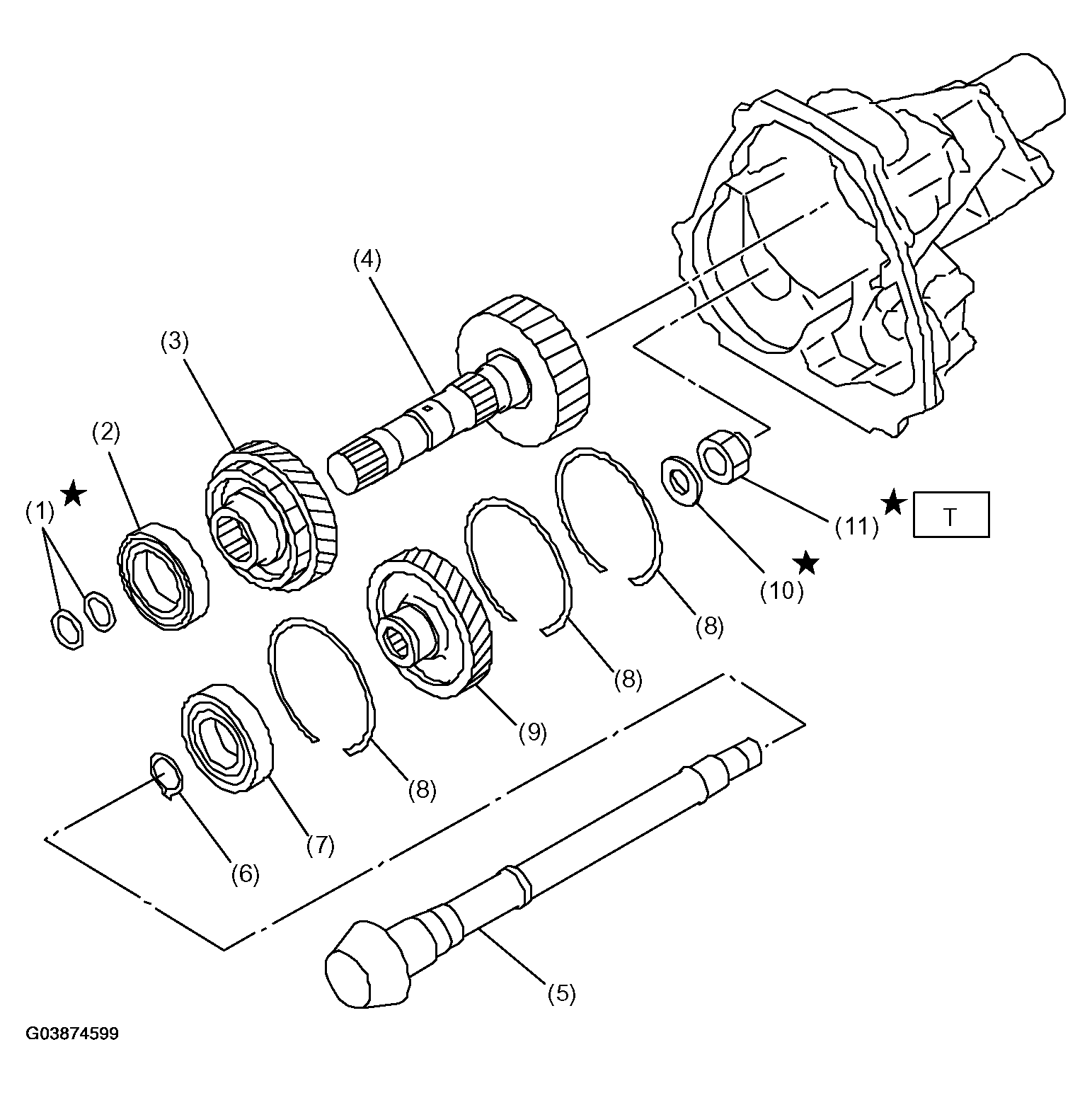

Fig 1: Identifying Components Reduction Gear With MPT

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Seal ring
2. Ball bearing
3. Reduction drive gear
4. Reduction drive shaft
5. Snap ring
6. Drive pinion shaft
7. Ball bearing
8. Snap ring
9. Reduction driven gear
10. Washer
11. Lock nut

Tightening torque: Nm (kgfm, ft-lb)

T: 100 (10.2, 73.8)
