Fuse 2, engine bay fuse box 342: Trionic: Notes

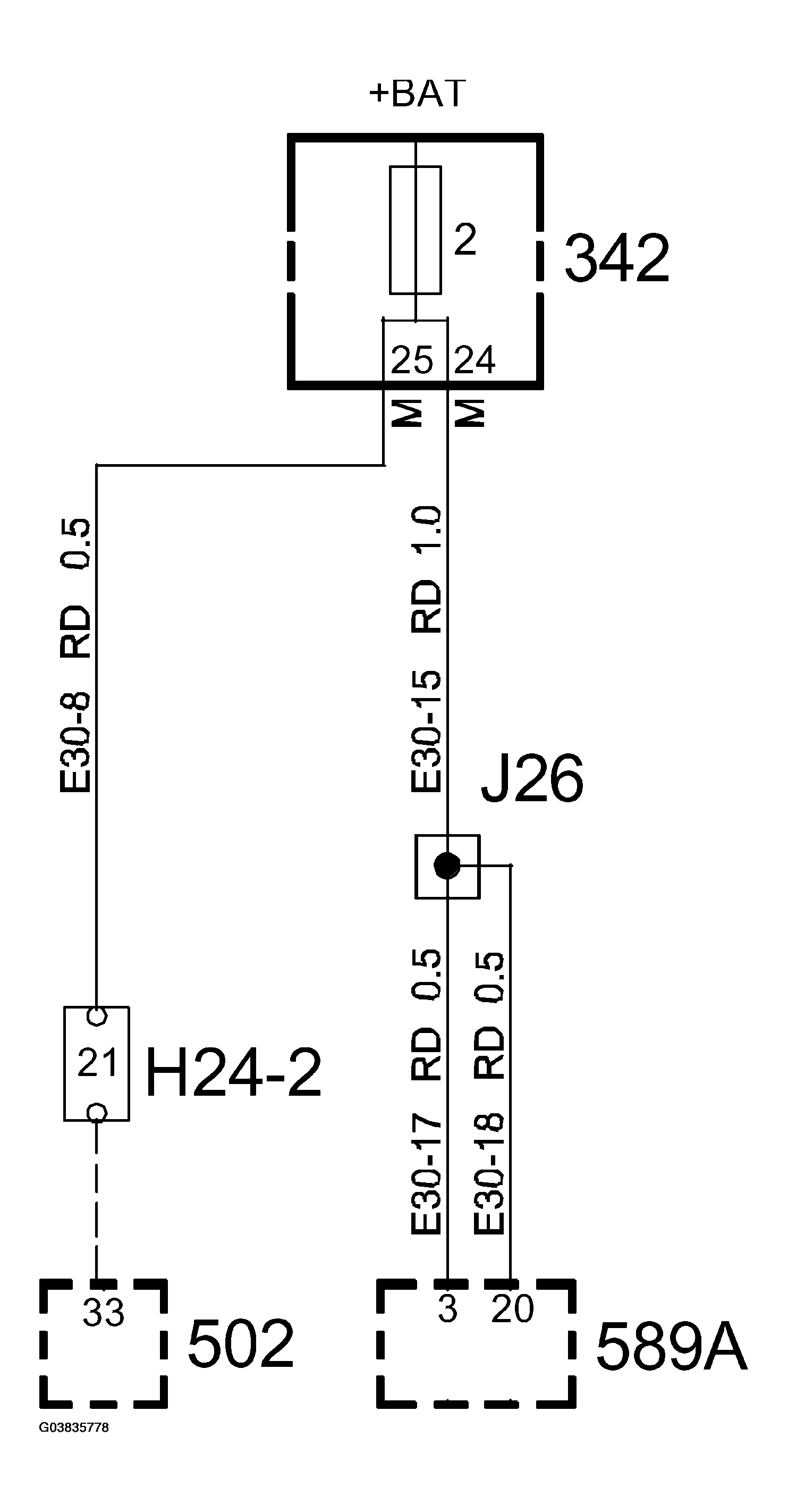

Fig 1: Circuit Diagram - Fuse 2 Trionic
G03835778Courtesy of SAAB-SCANIA OF AMERICA, INC.
