To remove

  1. Place covers over the wings to keep the paintwork clean and protect it from damage.
  2. Remove the battery cover.

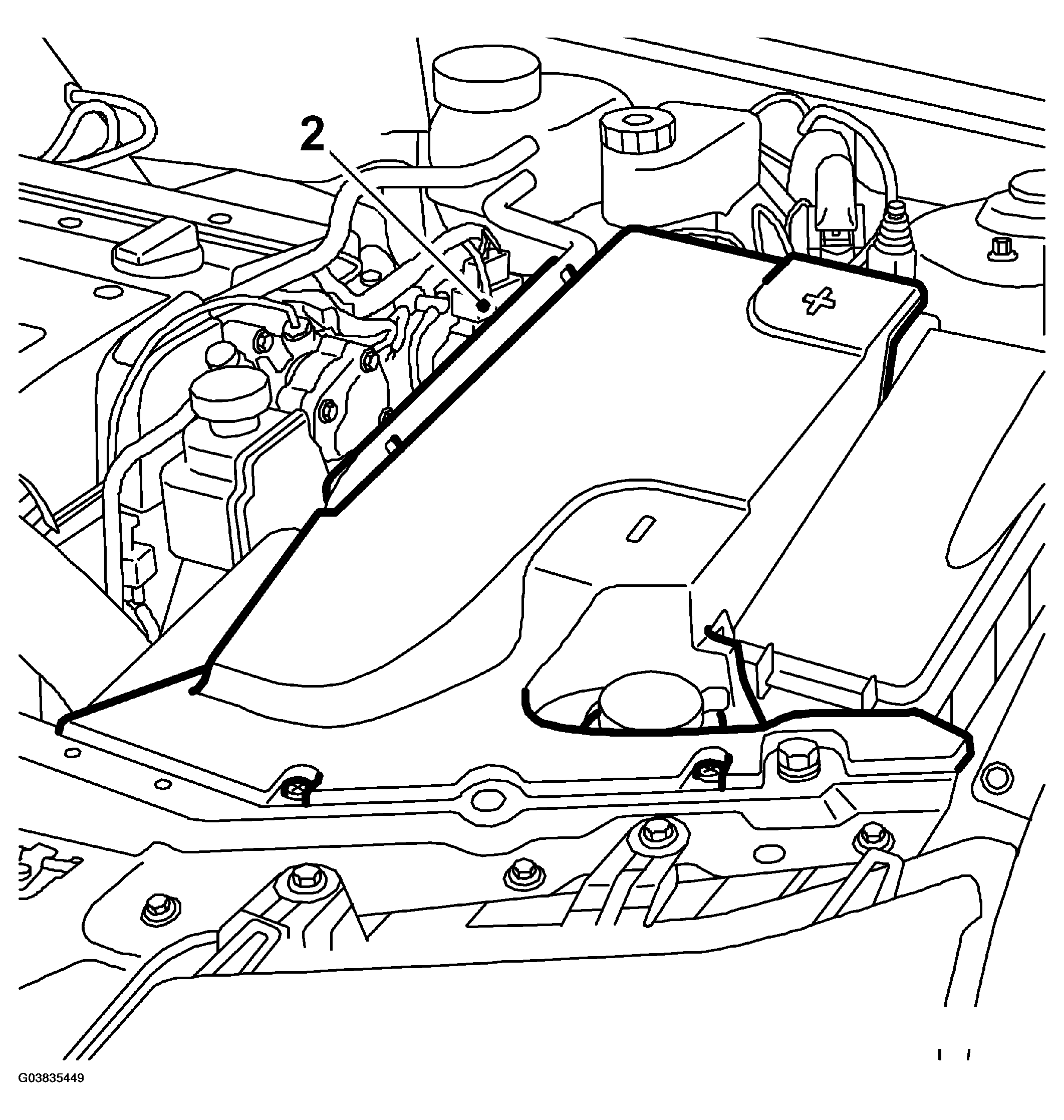

    Fig 1: Illustration For Step 2
    G03835449Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the battery, coolant pipe, main fuse box and bonnet switch.

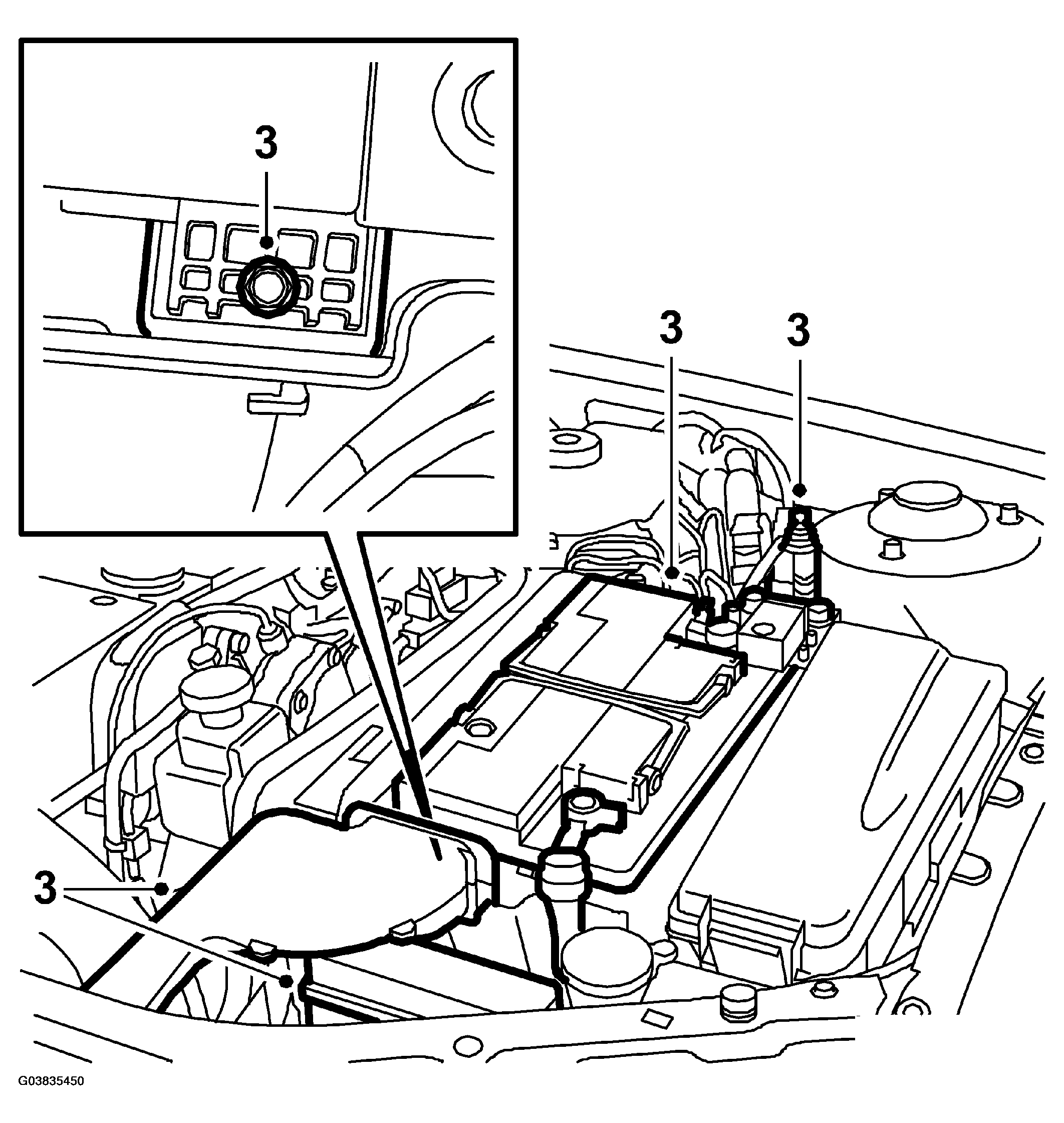

    Fig 2: Illustration For Step 3
    G03835450Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the control module connector. Unplug the connectors under the control module. Remove the battery tray.

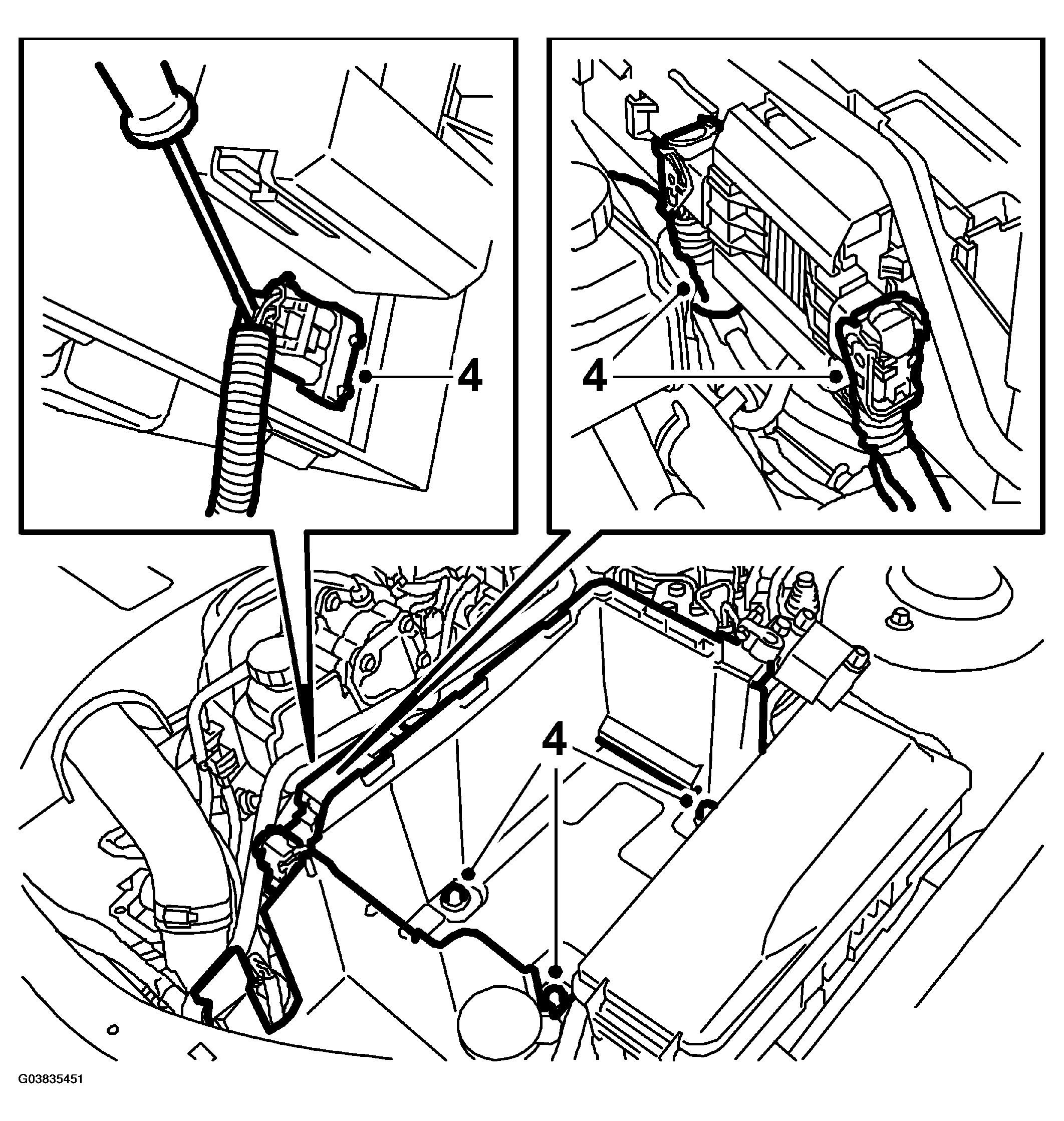

    Fig 3: Illustration For Step 4
    G03835451Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Unplug the speed sensor connector. Remove the output shaft speed sensor.

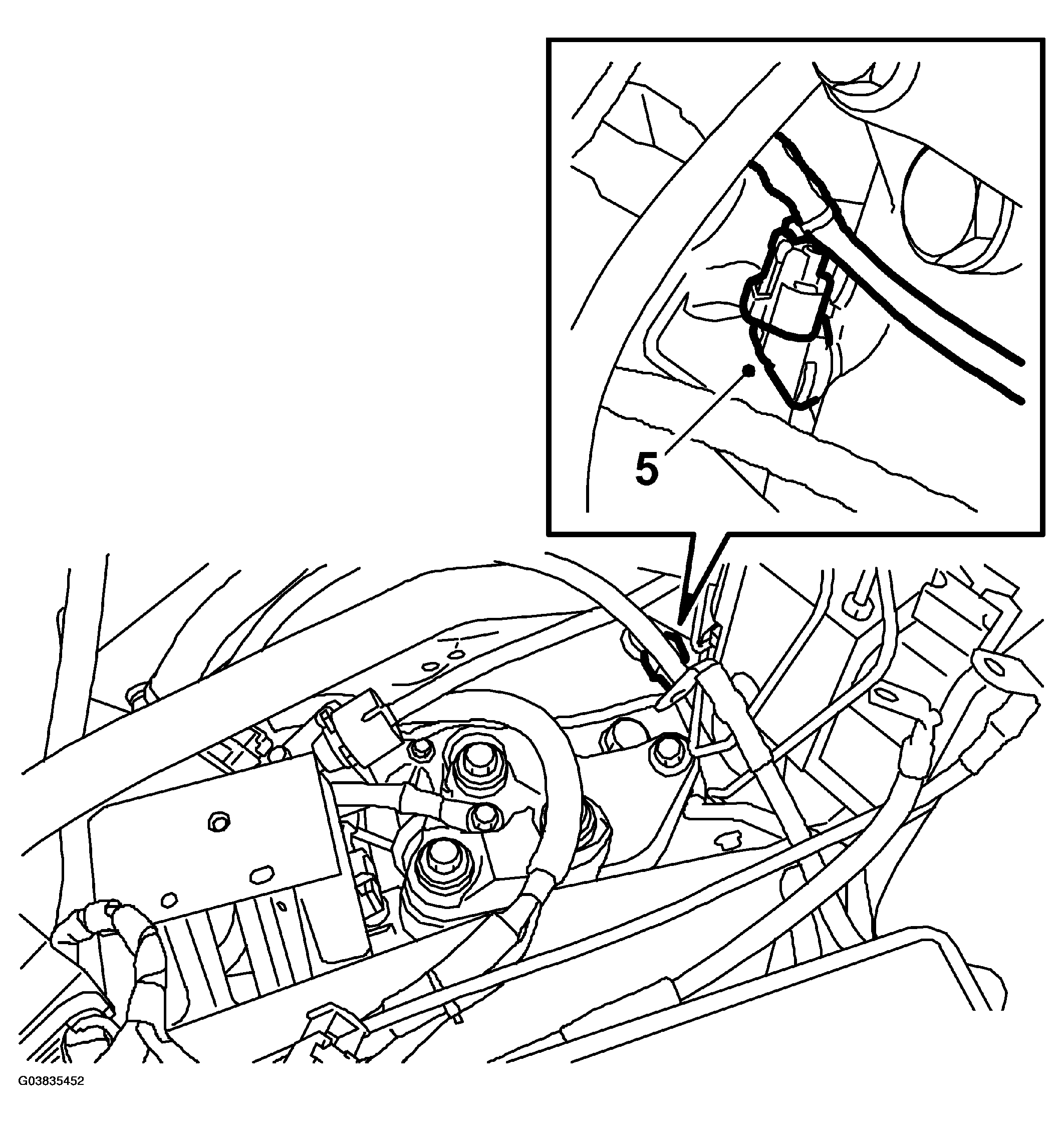

    Fig 4: Illustration For Step 5
    G03835452Courtesy of SAAB-SCANIA OF AMERICA, INC.
