To remove

  1. REMOVE THE BACKREST UPHOLSTERY .
  2. Remove the lumbar support.

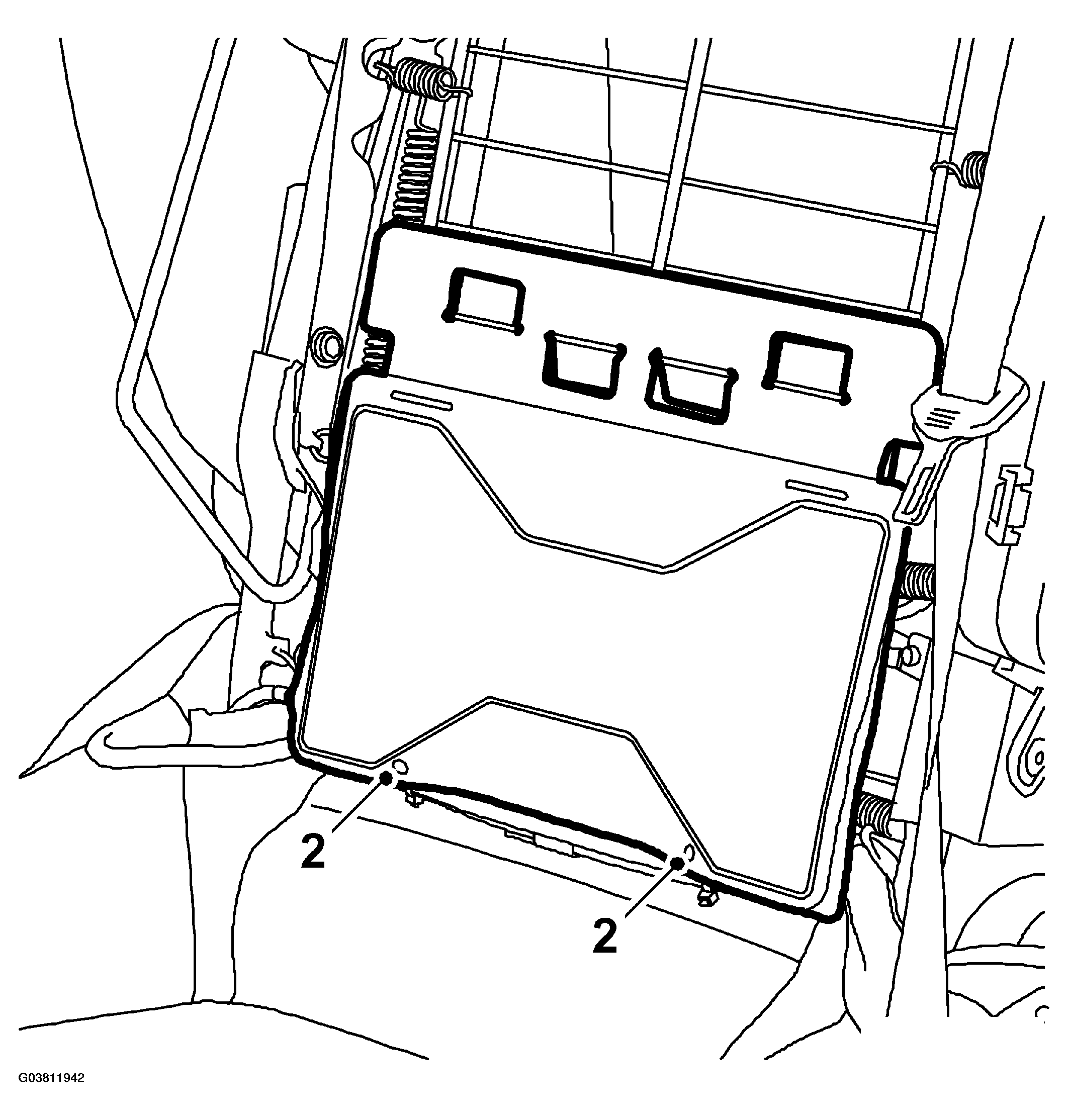

    Fig 1: Removing Lumbar Support
    G03811942Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector.

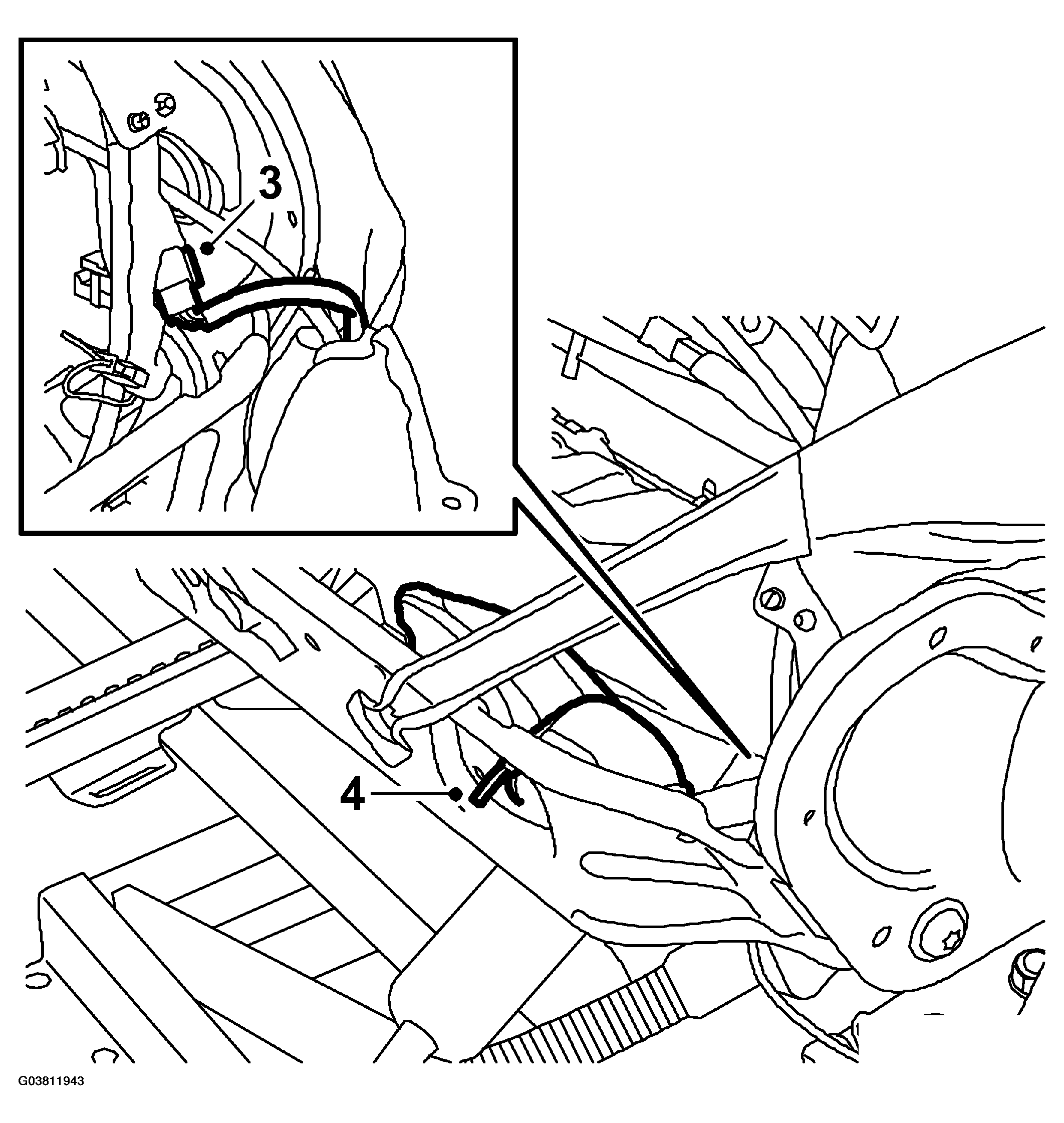

    Fig 2: Illustration For Step (3 And 4)
    G03811943Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the pump.
  5. Pull out the lumbar support.
