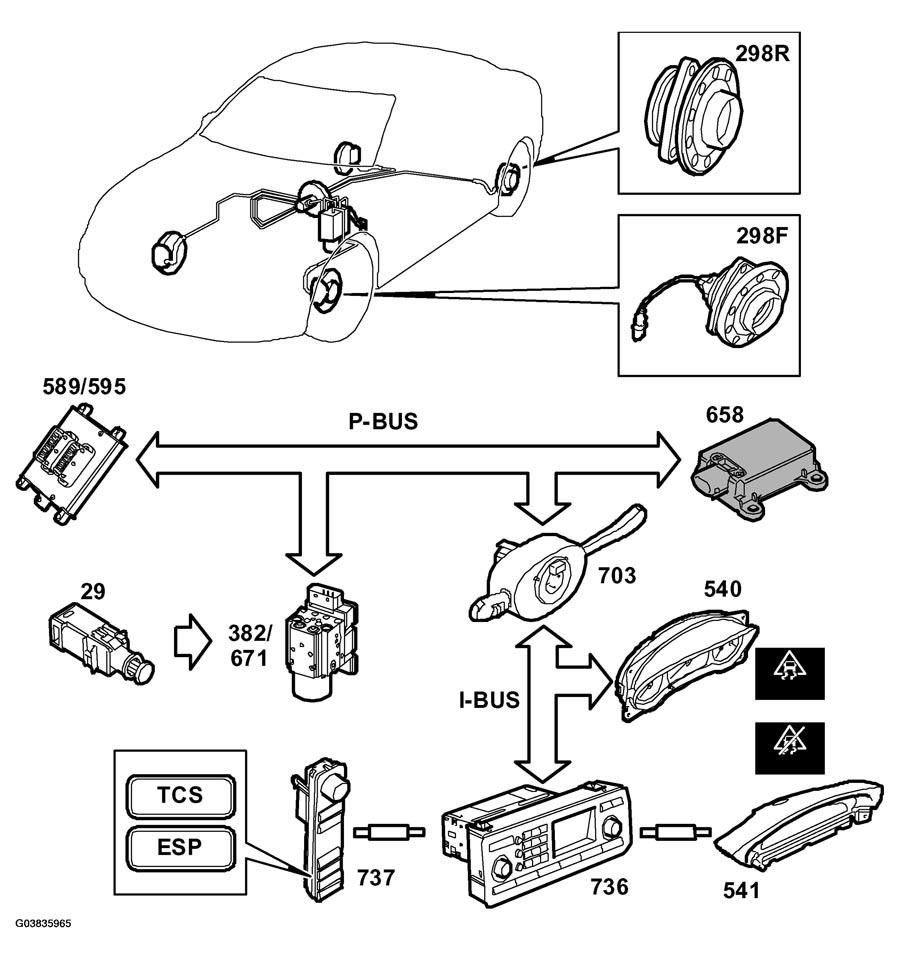

TCS/ESP, brief description: Overview
- TCS control module (382)/ESP control module (671)
- control module
- valve housing
- pump
- FRONT WHEEL SPEED SENSOR (298F)
- REAR WHEEL SPEED SENSOR (298R)
- MIU (540)
- ABS warning lamp
- TCS or ESP indicator lamp
- TCS OFF or ESP OFF warning lamp
- Brake warning lamp (EBD fault)
- SID (541)
- Warning message, EBD fault
- Warning message, ABS fault
- Warning message, TCS fault
- Warning message, ESP fault
- SID control panel, SIDC (737)
- TCS or ESP ON/OFF
- INFOTAINMENT CONTROL PANEL, ICM (736)
- CONTROL MODULE, TRIONIC 4 CYL PETROL (589) /CONTROL MODULE, EDC16 4 CYL DIESEL (595)
- BRAKE LIGHT SWITCH (29), TCS/ESP
- COLUMN INTEGRATION MODULE (703) - ESP only
- YAW SENSOR (658) - ESP only
