Starter motor, B207: Notes

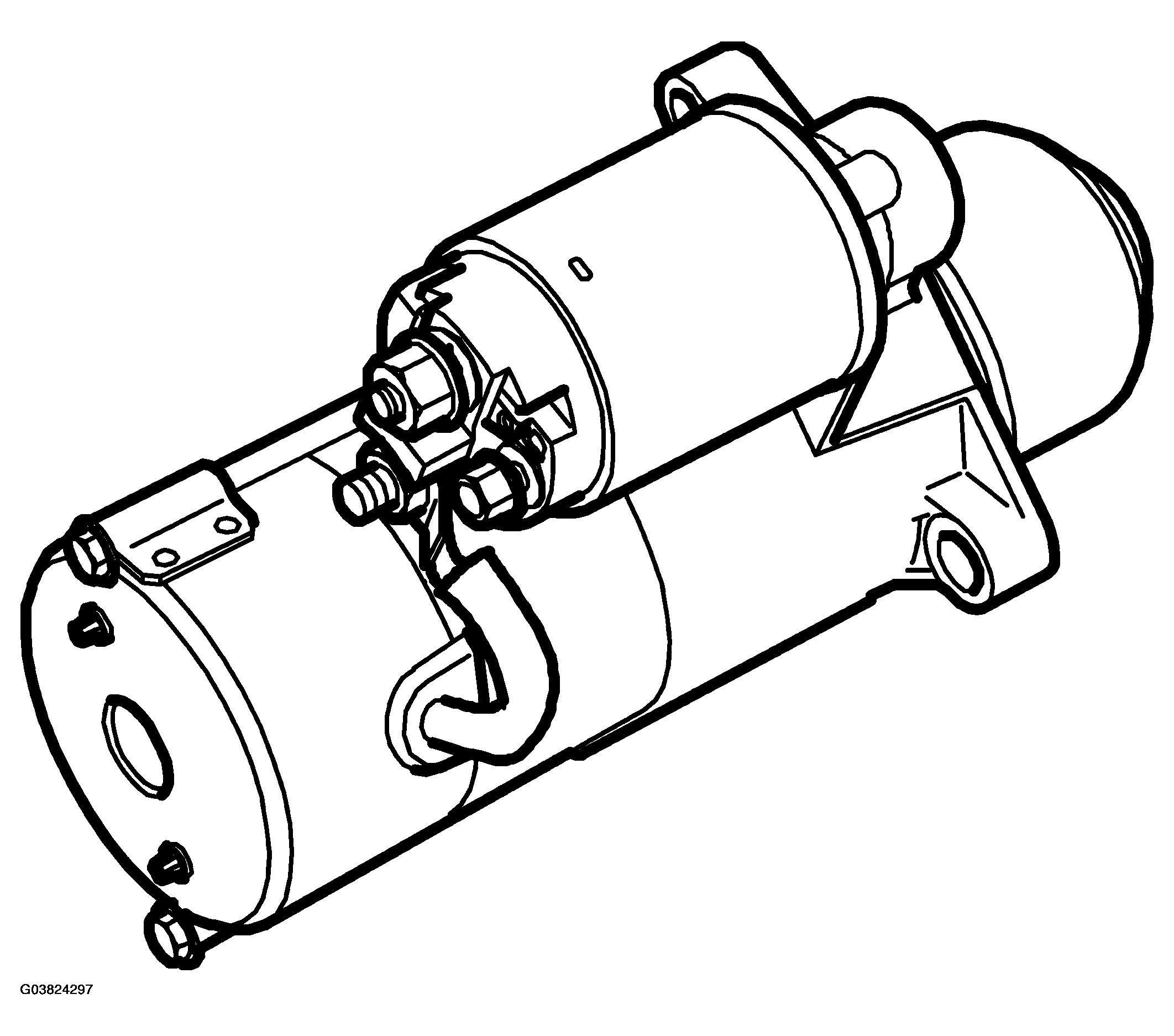

Fig 1: Identifying Starter Motor (B207)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

STARTER MOTOR DESCRIPTION (B207)

Type designation	Delco
Power	1.8 kW
No. of teeth on starter motor pinion	11
Number of teeth on ring gear	135
Ratio engine/starter motor	12.5:1
