Fuel pressure regulator

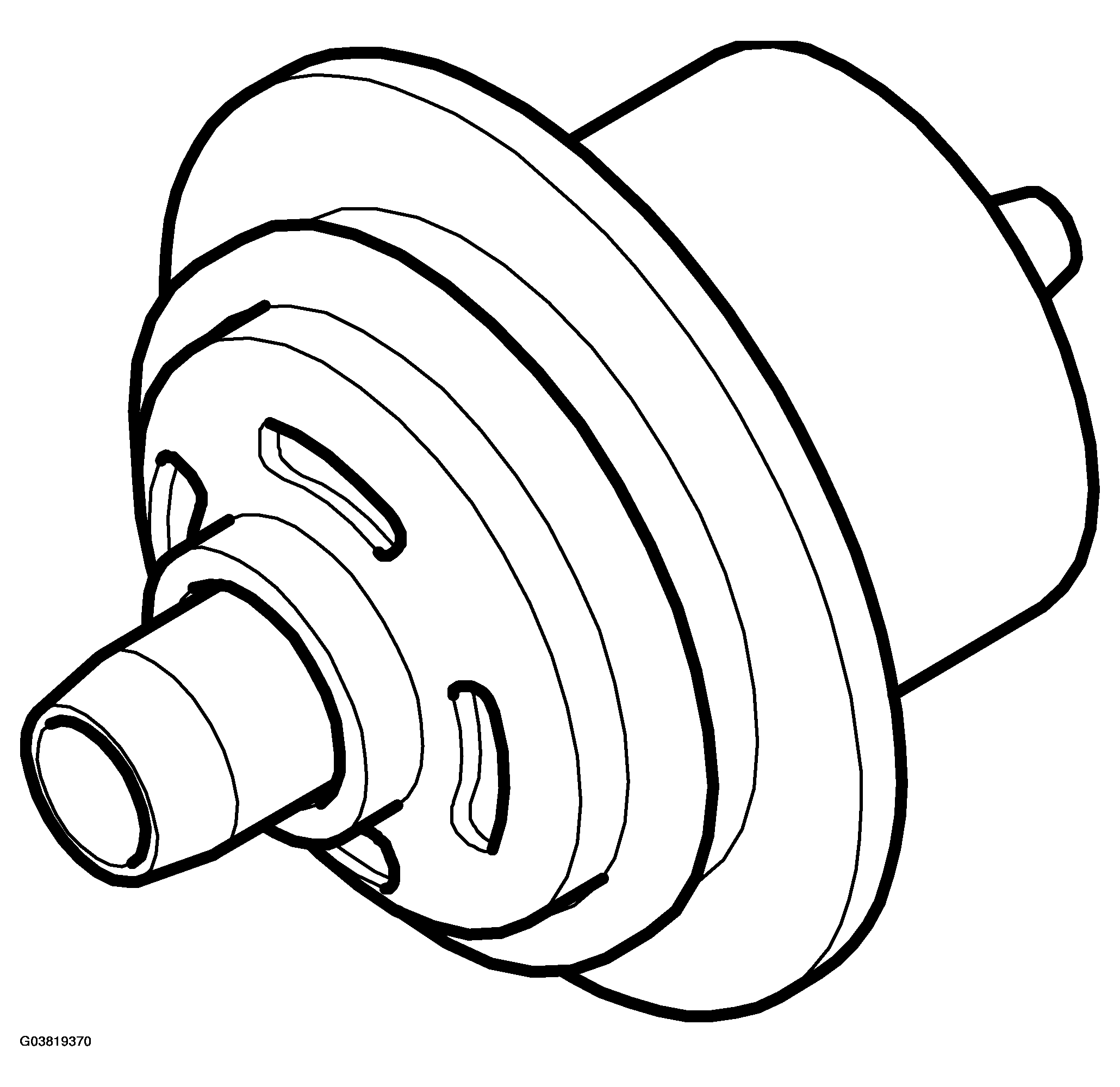

Fig 1: Identifying Fuel Pressure Regulator
G03819370Courtesy of SAAB-SCANIA OF AMERICA, INC.
PRESSURE REFERENCE

Fuel pressure 3.0+/-0.1 bar
Pressure, air side Connected to intake manifold
