Home >> Saab >> 2005 >> 9-3 Linear, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T8 Fuel Control System >> Component location >> Main relay, engine control system (229) >> Location:
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Main relay, engine control system (229): Location:

in the main fuse box in front of battery

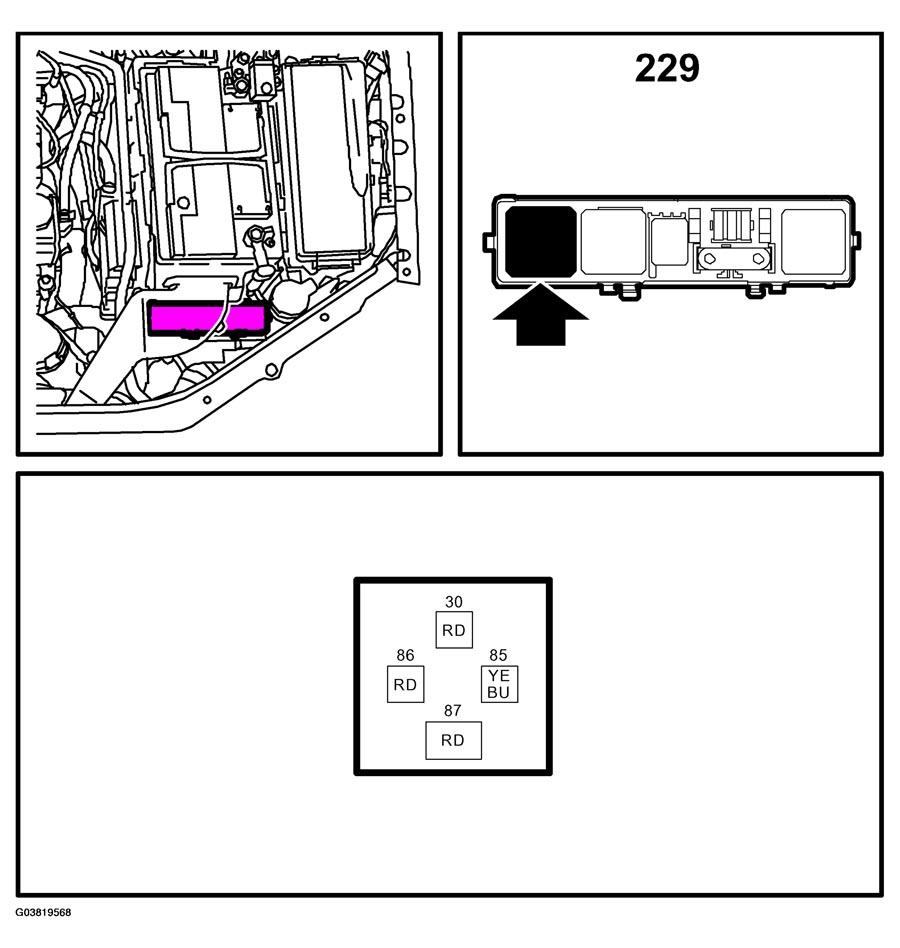

Fig 1: Locating Main Fuse Box
G03819568Courtesy of SAAB-SCANIA OF AMERICA, INC.
