To remove

  1. Remove gearbox assembly 5-SPEED ,5-SPEED, F17 , or 6-SPEED .
  2. Remove CLUTCH ASSEMBLY  .
  3. Remove the flywheel.

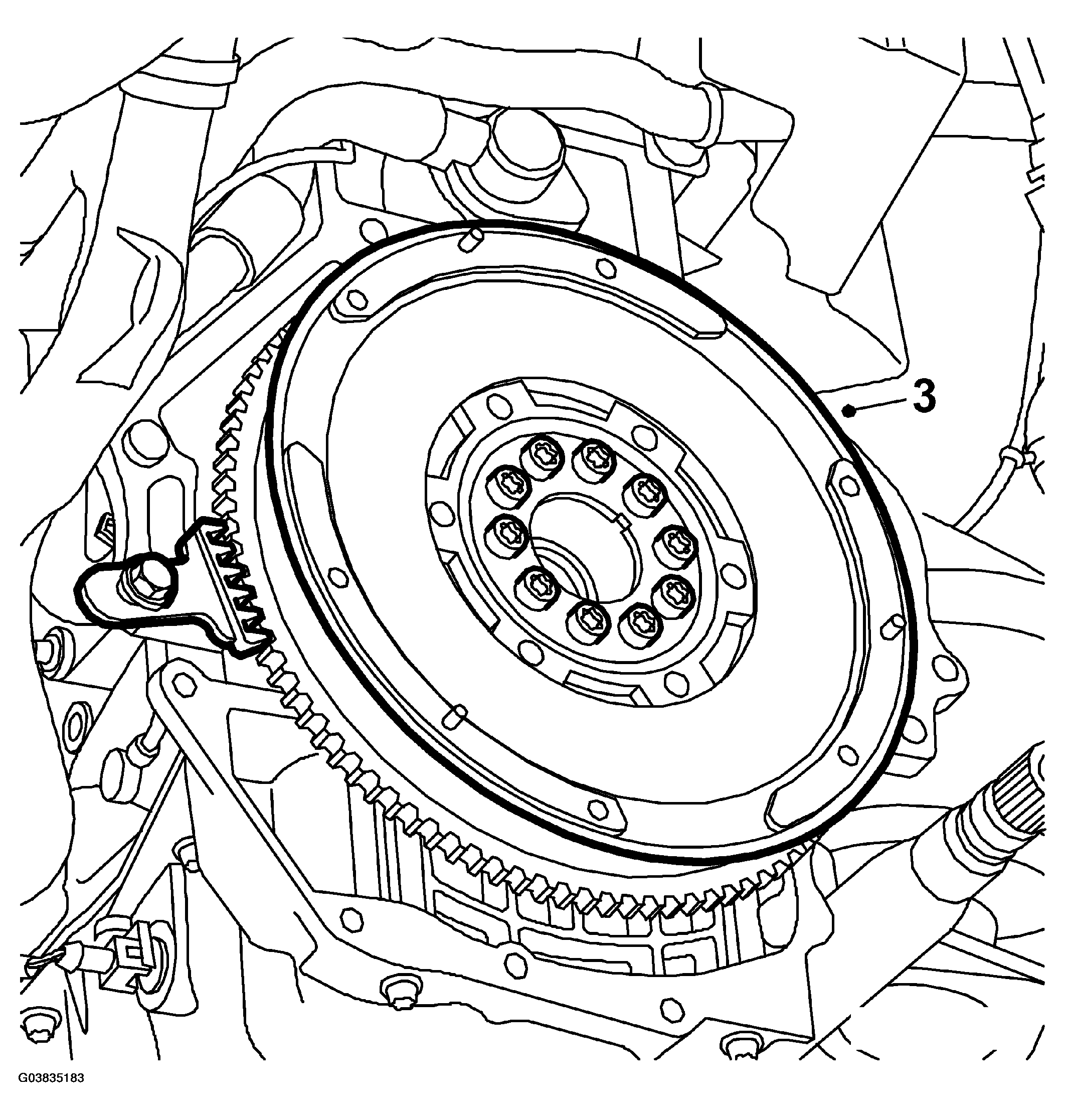

    Fig 1: Illustration For Step 3
    G03835183Courtesy of SAAB-SCANIA OF AMERICA, INC.
