Home >> Saab >> 2005 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Fault diagnosis, fault codes >> P0705: Transmission Range Switch. Input Incorrect. >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

P0705: Transmission Range Switch. Input Incorrect.: Notes

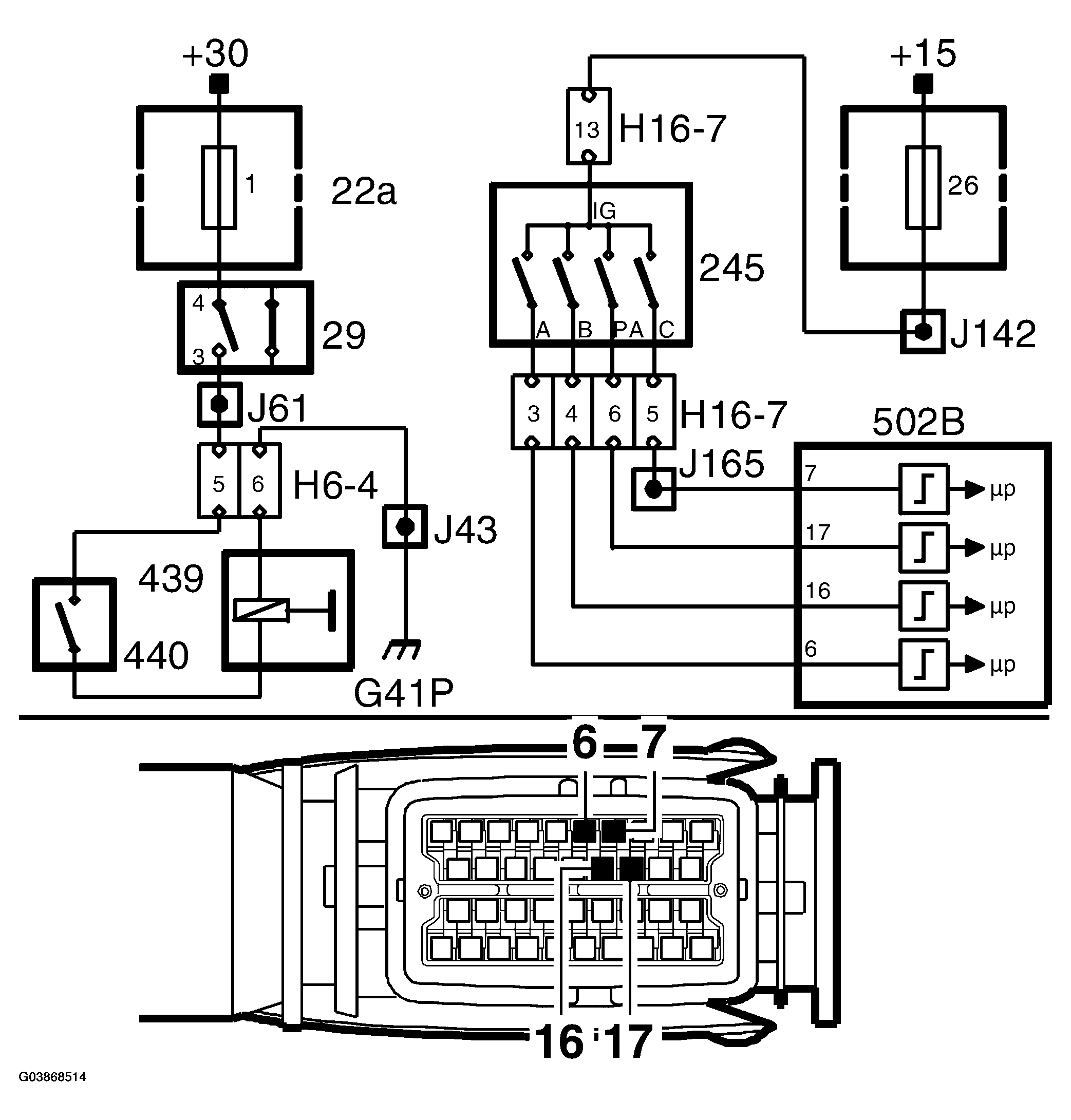

Fig 1: Wiring Diagram - P0705: Transmission Range Switch, Input Incorrect
G03868514Courtesy of SAAB-SCANIA OF AMERICA, INC.
