To fit

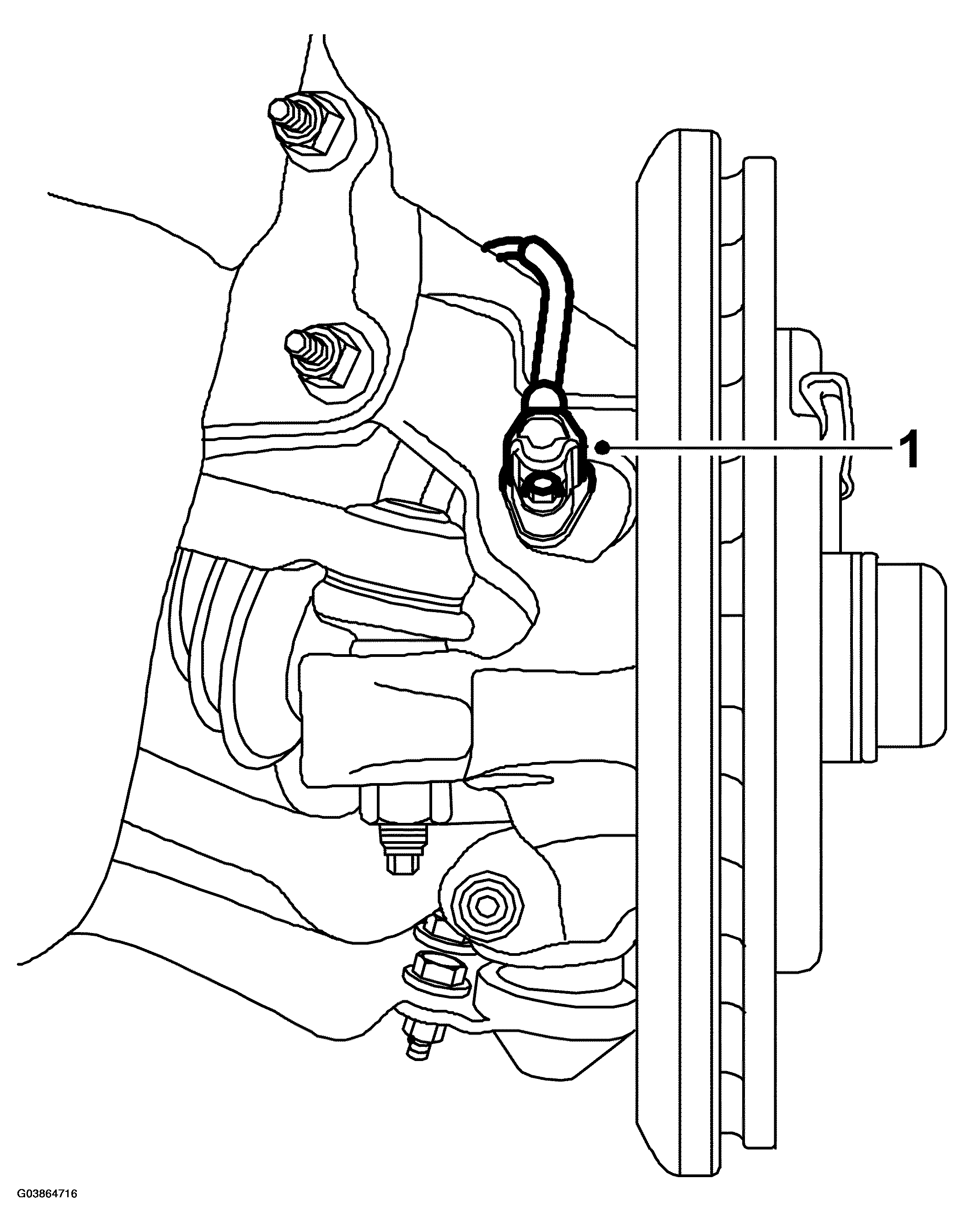

Fig 1: Illustration For Step 1
G03864716Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the wheel sensor in its holder and tighten the retaining bolt.
  2. Insert the lead.
  3. Press the lead into the clips and fit the grommet.

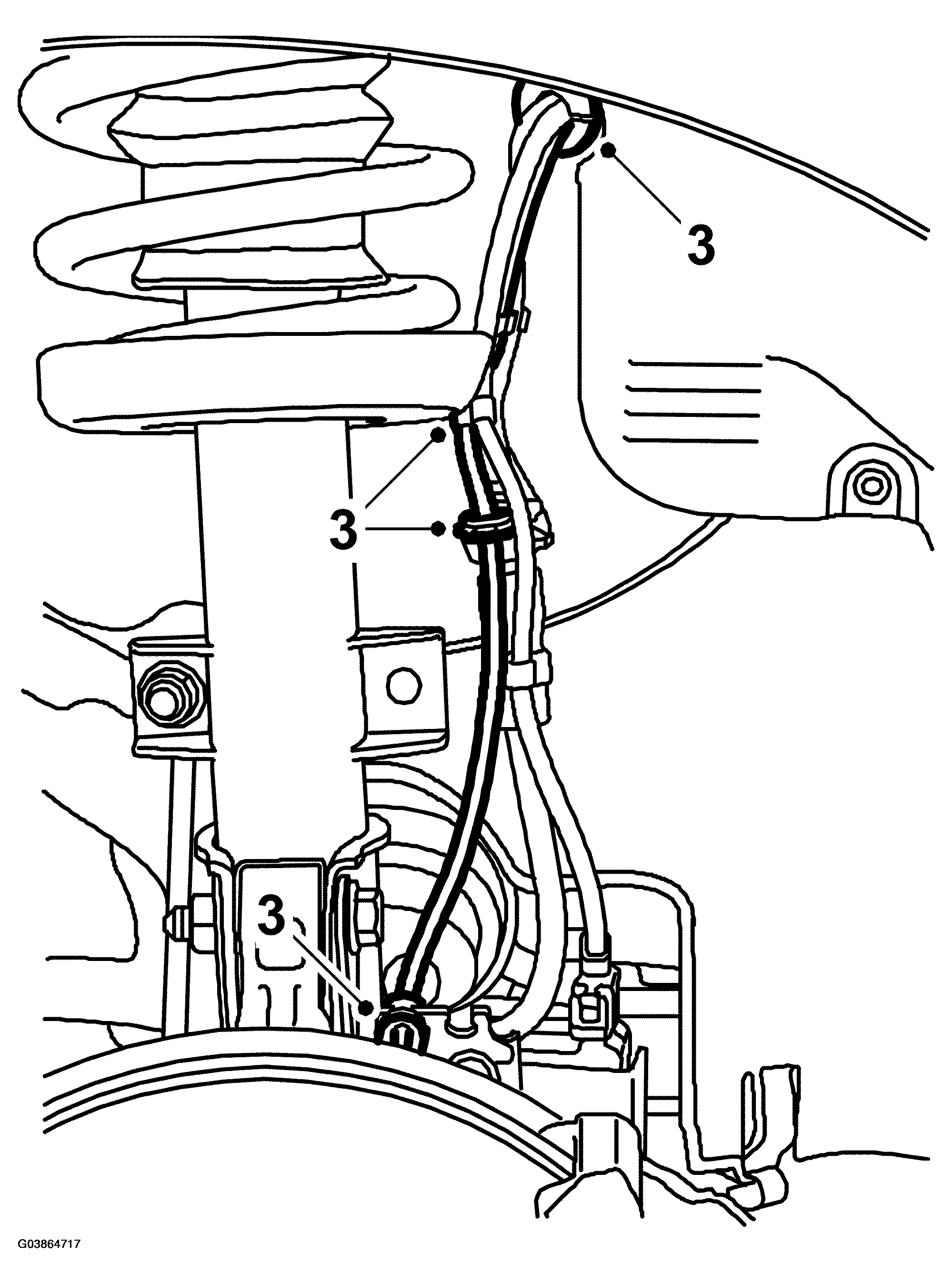

    Fig 2: Illustration For Step 3
    G03864717Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the wheel and lower the car. See WHEEL & TYRES - 9-5 .

    Tightening torques

    aluminum wheel 110 Nm (81 lbf ft)

    steel wheel 50 Nm +2x90°, max. 110 Nm (37 lbf ft +2x90°, max. 81 lbf ft)

  5. Connect the lead and fit the connector into the holder.

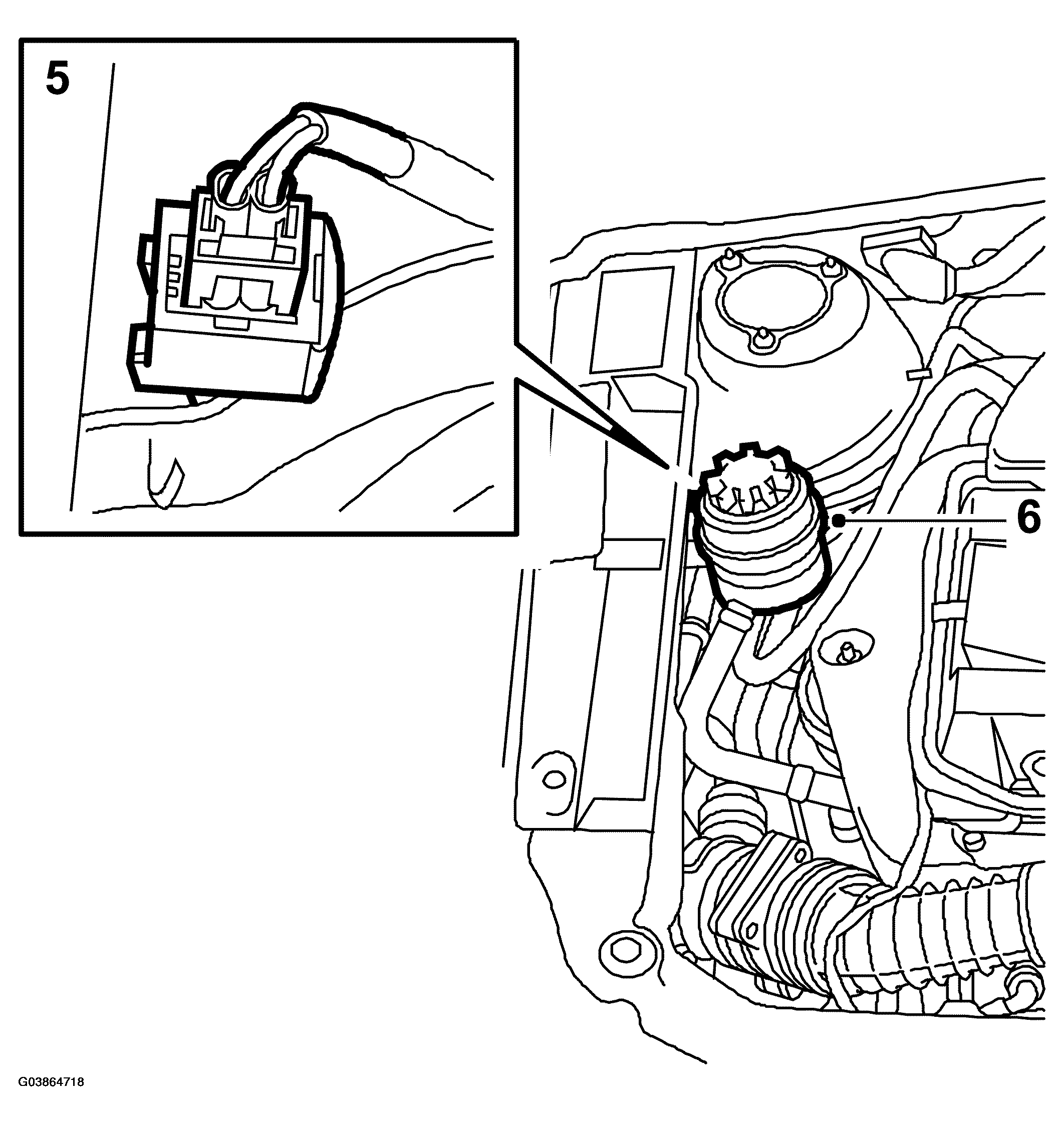

    Fig 3: Illustration For Step 5 And 6
    G03864718Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the oil reservoir.
